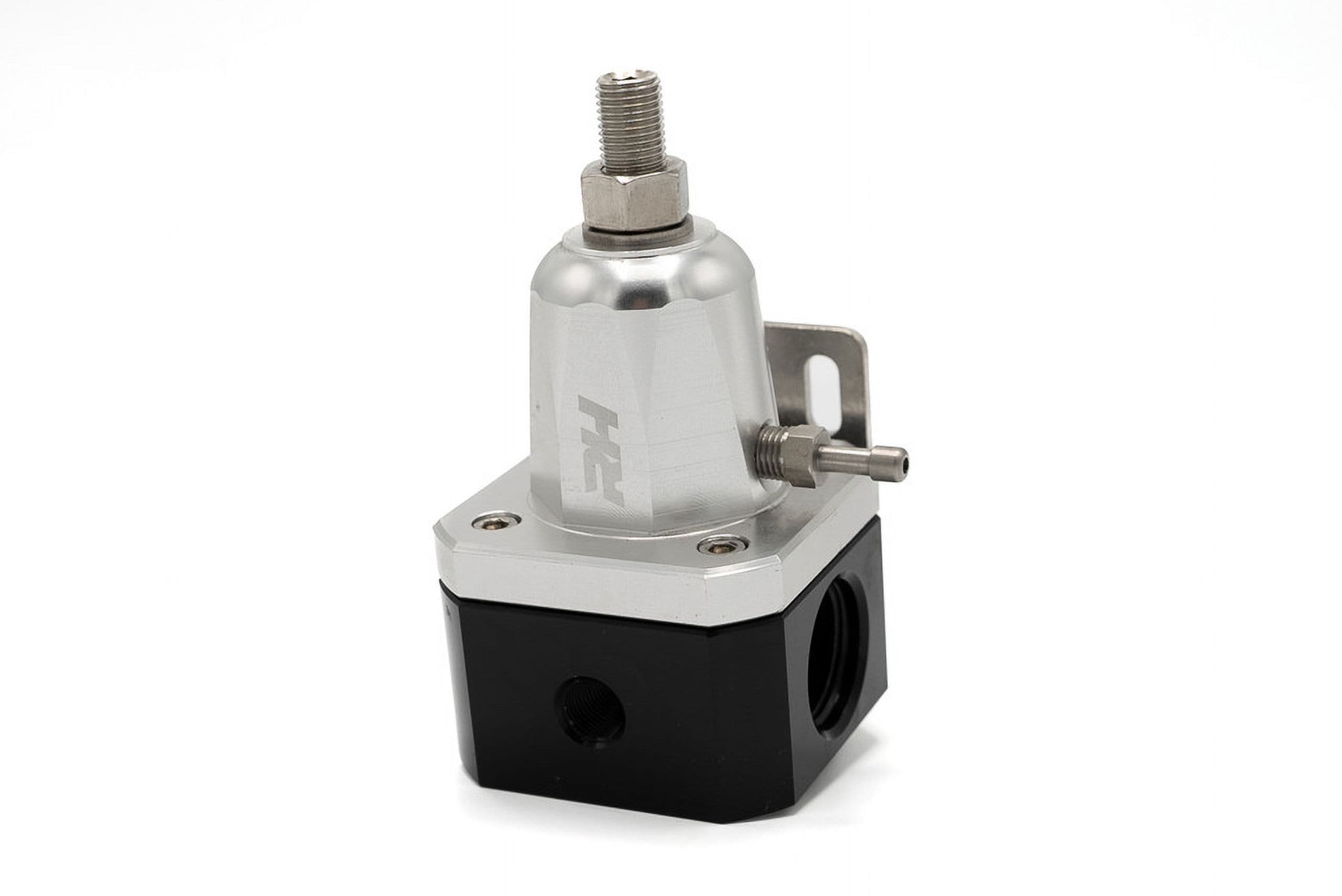

-10 Return Style Carbureted Fuel Pressure Regulator - Black

Boost reference port available for forced induced setup- raises fuel pressure 1lb Each lb of boost (1:1 ratio) Note- boost reference port should be left unplugged(atmospheric) if setup is naturally aspirated. (2)-10AN ORB inlet/outlet ports on sides (1)-06AN ORB return port on bottom / 1/8" NPT gauge port on face of regulator (comes with NPT plug) Mounting bracket uses #10 screws / Length: 1.90" / Length W/Bracket: 2.18" / Width: 1.90" Height Including Adjusting Stud/Lock Nut: 3.07"
