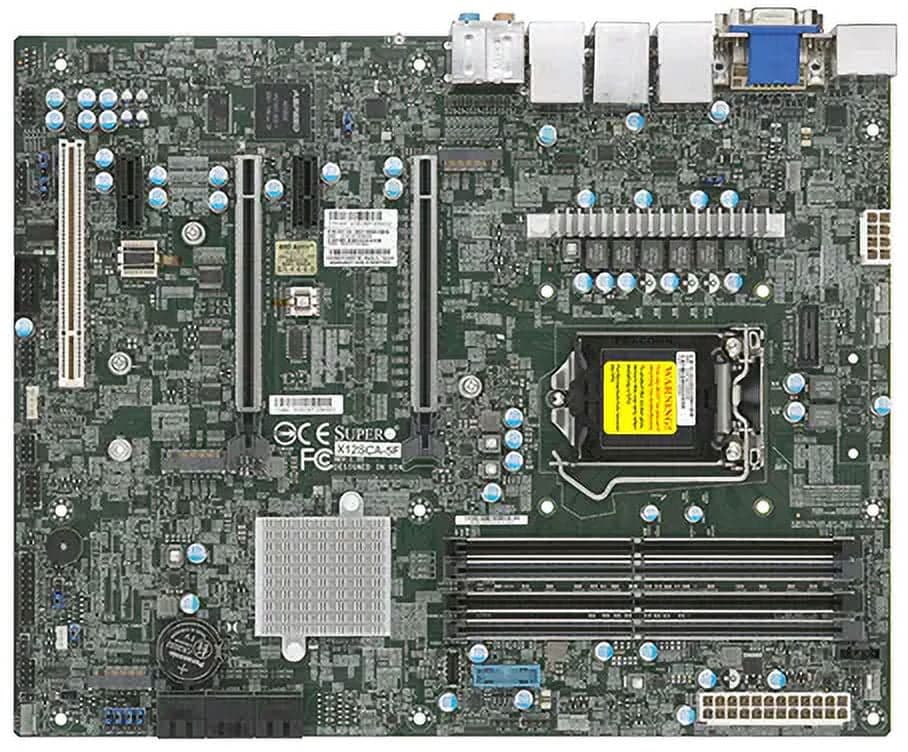

*NEW* Supermicro MBD-X12SCA-5F — ATX LGA-1200 Motherboard, Intel W580 Chipset, 4x DIMM ECC, Full Warranty

Supermicro MBD-X12SCA-5F is an ATX workstation/server motherboard built on the Intel® W580 chipset and designed for a single LGA-1200 (Socket H5) CPU with support for up to 125W TDP. Processor compatibility includes 10th Generation Intel® Core™ (i9/i7/i5/i3), Pentium®, Celeron®; 11th Generation Intel® Core™ i5/i7/i9; and Intel® Xeon® W-1200 and W-1300 series processors. Memory and storage: Four DIMM slots accept up to 128GB Unbuffered ECC/non-ECC UDIMM at DDR4-3200MHz. The board provides M.2 support with 1 PCIe 4.0 x4 and 2 PCIe 3.0 x4 interfaces (M.2 Form Factor: 2280/22110, M.2 Key: M-Key) with RAID 0 & 1; note RAID 5 is only supported for INTEL storage devices. M.2-M3 is limited when used with 10th Gen CPUs and W-1200 CPUs. SATA connectivity is handled by the Intel® W580 controller with 6 SATA3 (6 Gbps) ports and RAID 0,1,5,10 support. Expansion and legacy I/O: Expansion slots include 2 PCIe 4.0 x16 slots (16/NA or 8/8), 2 PCIe 3.0 x1 slots, and 1 - 5V PCI 32bit slot. Networking and management: Network interfaces include a Single LAN with Intel® Ethernet i225LM, a Single LAN with Intel® PHY I219LM (LAN controller for AMT/vPro), a Single LAN with RTL8211, plus a dedicated LAN port for IPMI remote management. Display outputs: Integrated video options consist of 1 DisplayPort 1.4a, 1 HDMI 2.0b, 1 DVI-D and 1 VGA port. This listing describes the Supermicro MBD-X12SCA-5F motherboard with the specifications above and includes full warranty coverage.
