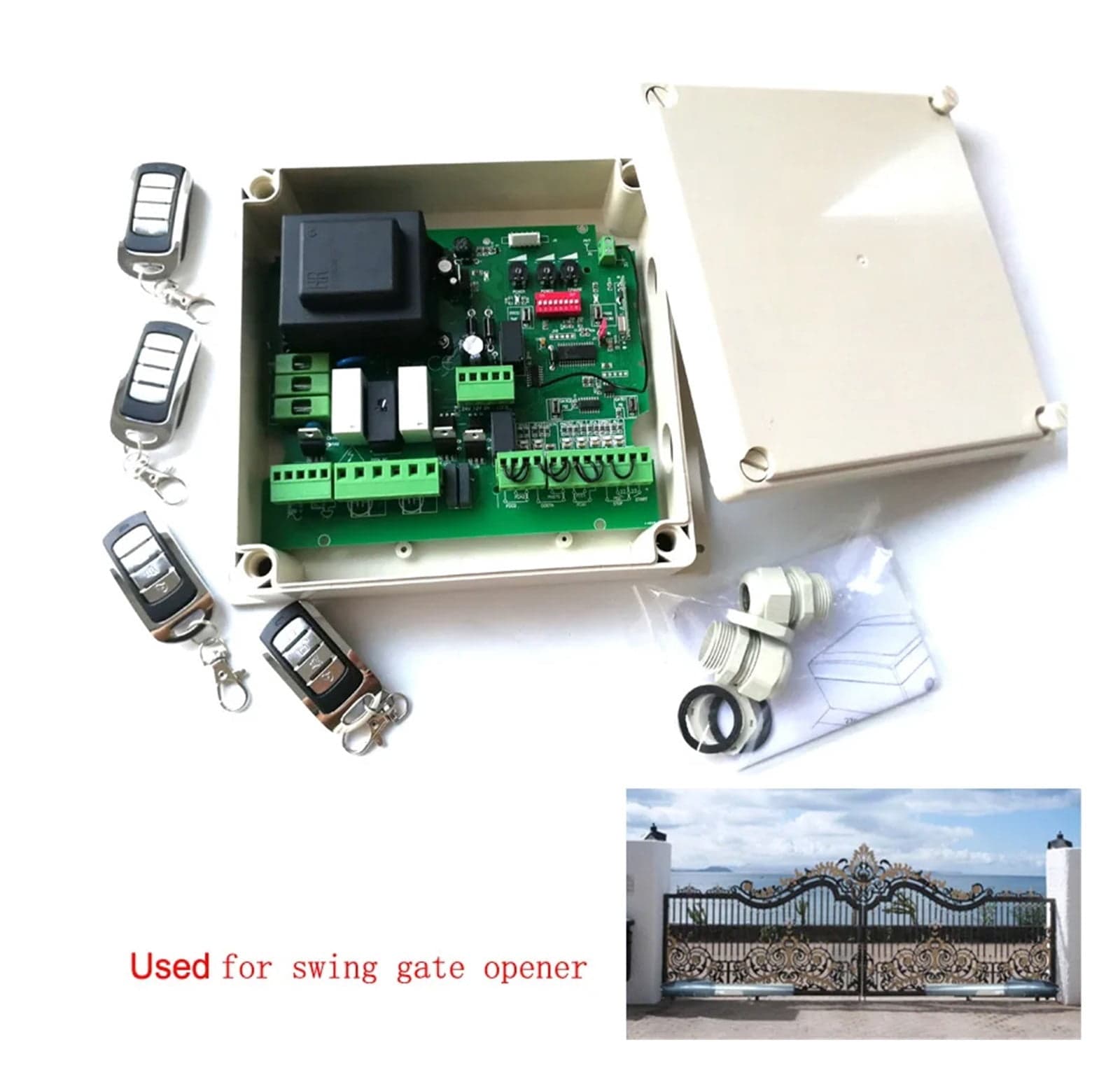

220VAC Swing Gate Opener Controller PCB - Motor Operator Electronic Card for Automatic Gate Opener (Dual)

Replacement control PCB for 220V swing gate motors — an electronic motor operator card for automatic swing gate openers. Kit options: Kit 0 contains a circuit board (no remote control); Kit 1 contains a circuit board + 1 remote control; Kit 2 contains a circuit board + 2 remote controls; Kit 3 contains a circuit board + 3 remote controls; Kit 4 contains a circuit board + 4 remote controls. Automatic maneuvers are executed using the start, stop, ped and switch inputs, and via radio buttons when needed. A maneuver ends either by activation of the corresponding end-of-process input or when the configured working time elapses. Activating stop halts the maneuver immediately and a new command must be issued to start again. If the safety contact is triggered during closing, the controller reverses and initiates an opening maneuver. The garage light output is enabled 0.5 seconds before the opening begins and is turned off 3 minutes after the opening start. Motor power selected on the power regulator is applied 2 seconds after a maneuver starts. The suspension time (set in the working time program) is the interval before a maneuver is cleared during which the motor operates in landing gear mode. When i7 is enabled, the power slow feature allows selection of the motor speed used during the suspension period.
