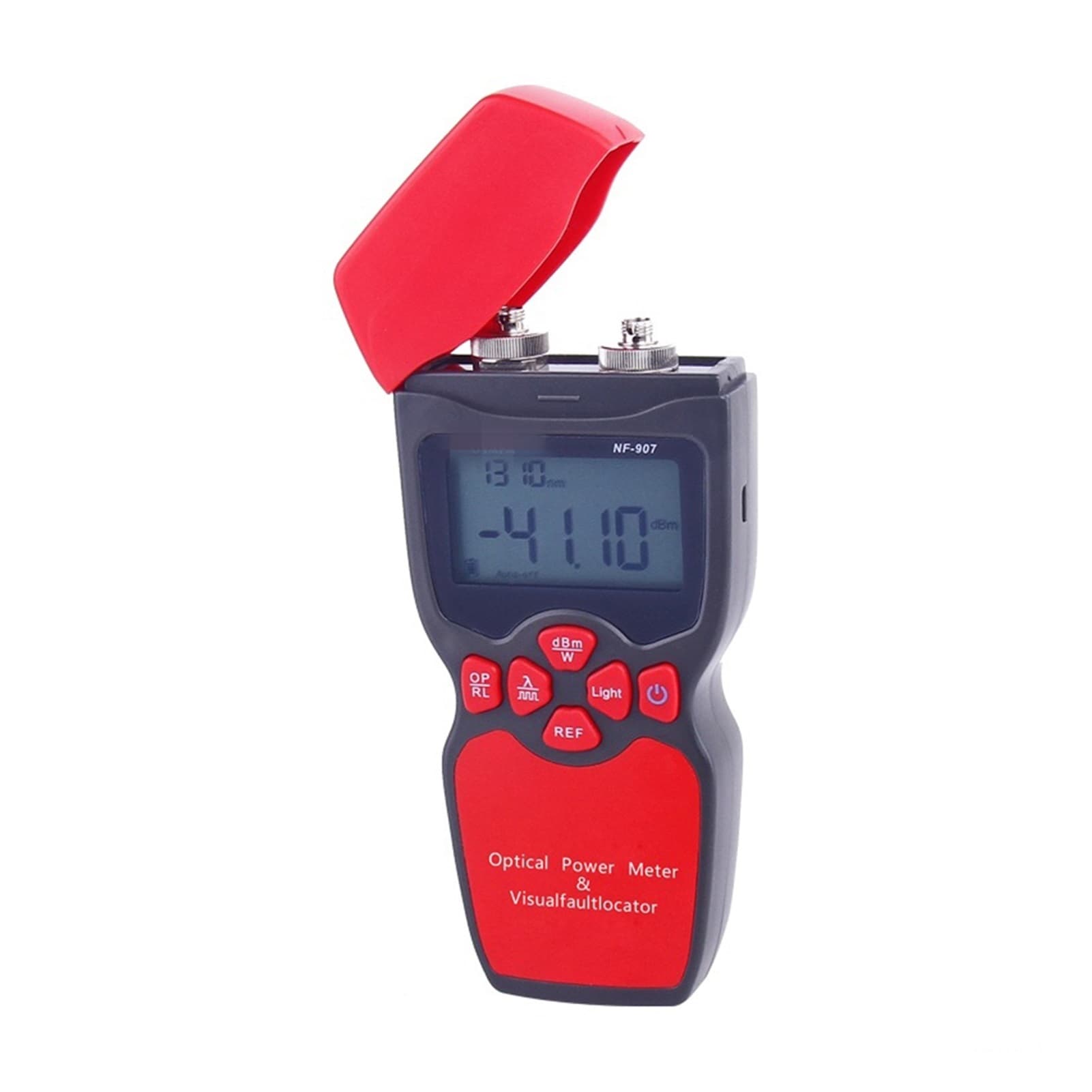

3-in-1 Optical Multimeter Optical Fiber Tester Optical Power Meter Tester Visual Fault Locator ,Fast Responses

Main Functions: 1. Measurement of the power of optical sender (dBm and W). 2. Insertion loss test of optical devices. 3. Light source function. 4. Check fiber breakage, winding,ect. 5. New REF user-defined. 6. FC/SC/ST general-purpose interface. 7. wavelength:850/1300/1310/1490/1550/ 1625nm (power meter). 8 .wavelength:1310 / 1550nm( light source). Technical Index: Optical Power Meter Module Detector Type IngaAs Measurement Range(dBm) -50~+26 Uncertainty 0.03 Calibrated wavelengths(nm) 850, 1300, 1310, 1490, 1550, 1625nm Resolution (dB) 0.01dBm Identification Frequency Range 10Hz~60KHz Optical Connector FC (SC,ST,LC connector can be optional) Optical Light Source Module Emitter Type FP-LD Wavelengths 1310/1550(other wavelengths can be optional) Ouput Power(dBm) -7dBm Output Stability ±0.05dB/15mins; ±0.1dB/ 8hours Modulation Frequencies 270Hz, 1KHz, 2KHz Optical Connector FC (SC,ST,LC connector can be optional) Visual fault locator Emmiting Energy 5mw/ 10mw/ 20mw/ 30mw selectable Standard wavelenth 650±10nm Operation Mode Pulsed (2Hz) and CW Connector 2.5mm or 1.25mm Universal connector General Specifications of Multi Meter Power Supply 1.5V*3pcs Auto-off time 15mins Operating Temperature(°C) -10~+60 Storage Temperature(°C) -25~+70 Dimension(mm) 160x75x32mm Weight (g) 210 Related Products: network cable tester,cable tester,ethernet tester,network & cable testers,ethernet cable tester,ethernet testers,ethernet wire tracer,fiber tester,coax cable tester,cable tracer,network tool kit,network tools,ethernet tester tool,poe tester
