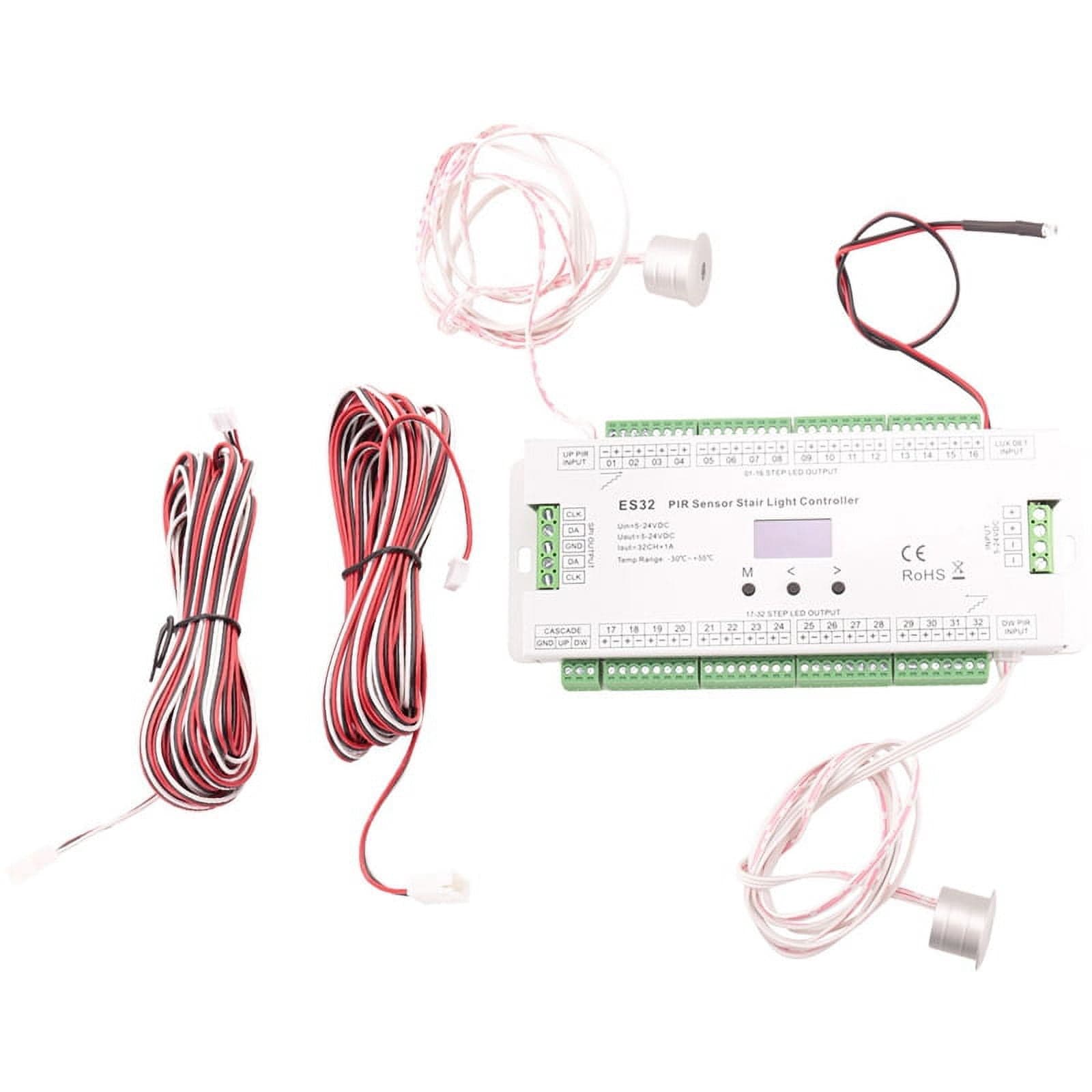

32CH PIR Stair Light Controller — Human Body Infrared Inductive Switch Lamp Control for Single Color with Daylight Sensor

Motion-activated PIR stair light controller featuring a built-in daylight sensor for reliable single-color lamp control via human body infrared induction. Outputs 32 channels of constant-voltage drive for low-voltage LED strips, with each channel supporting up to Max. 1A current. In addition to constant-voltage outputs, the unit includes 2 groups of SPI(TTL) signal outputs to drive addressable RGB LED strips; it can control 27 different IC types and allows setting the IC type and R/G/B order to match your LEDs. Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, TM1829, TM1914A, GW6205, GS8206, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822. Simple configuration and operation are provided via an OLED display and 3 buttons.
