48V 1800W Brushless DC Motor Controller Throttle Kit Electric Bicycle Kit for E-Bike Scooter Motor Go Kart ATV Quad Dirt Pit Bike Motorcycle Razor Mini Bike

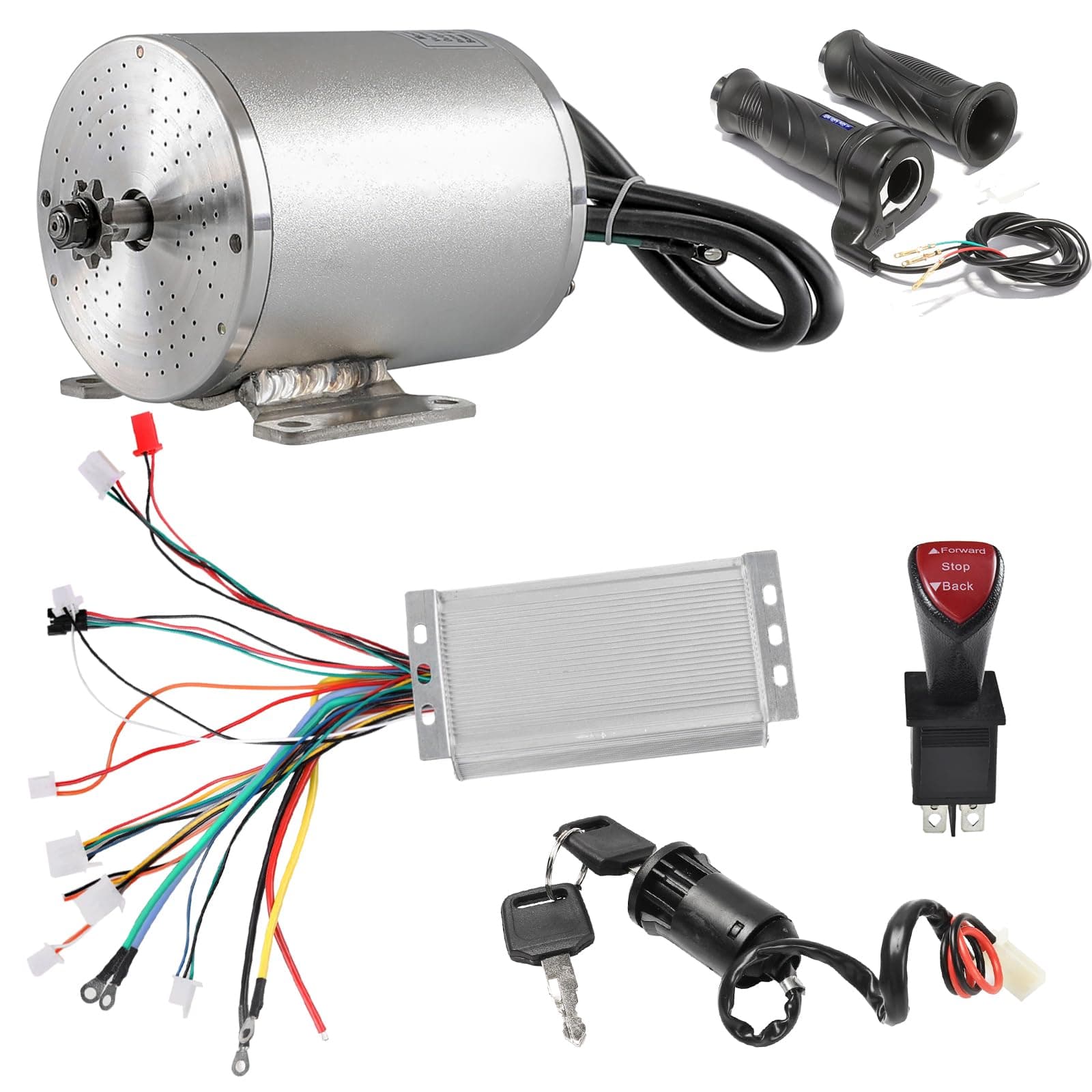

Brushless Motor Features: Electric Brushless DC Motor, Aluminum Body, Full Copper Coil, Heat Resistant, Naturally Air Cooled, Low Noise High Quality More Long Life. The running direction of the motor can be changed by changing the wiring between the motor and the controller (reverse-counterclockwise) : Step 1: 3 thick yellow, green and blue wires (phase wires) : Controller to the motor - yellow to yellow, blue to green, green to blue; Step 2: 6 Hall Wires: Controller to the motor - blue to yellow, other unchanged. Input Voltage: 48V DC, Output Power: 1800W, Rated Current: 33A, Rated Speed: 4500 RPM, Maximum Speed: 5200 RPM, Sprocket: T8F-9T, Maximum Current: 37.5A. It is suitable for go karts, scooters, e-bikes, ATVs, motorized bicycles, mopeds, mini bikes, pocket bikes,E Tricycle, 4 wheeler, Quad, Buggy, Drift Trike Multiple Application: Brushless motor is much better than the brushed motor due to its high efficiency, power frugal, low noise, long lifespan, stable operation. It is suitable for go karts, scooters, e-bike, ATV, motorized bicycle, moped, mini bikes, pocket bikes, golf cart etc. Package Includes:1x 48V 1800W Brushless Motor , 1x Controller, 1x Throttle Grips, 1x Power Key lock,1x Forward/Reverse Switch
