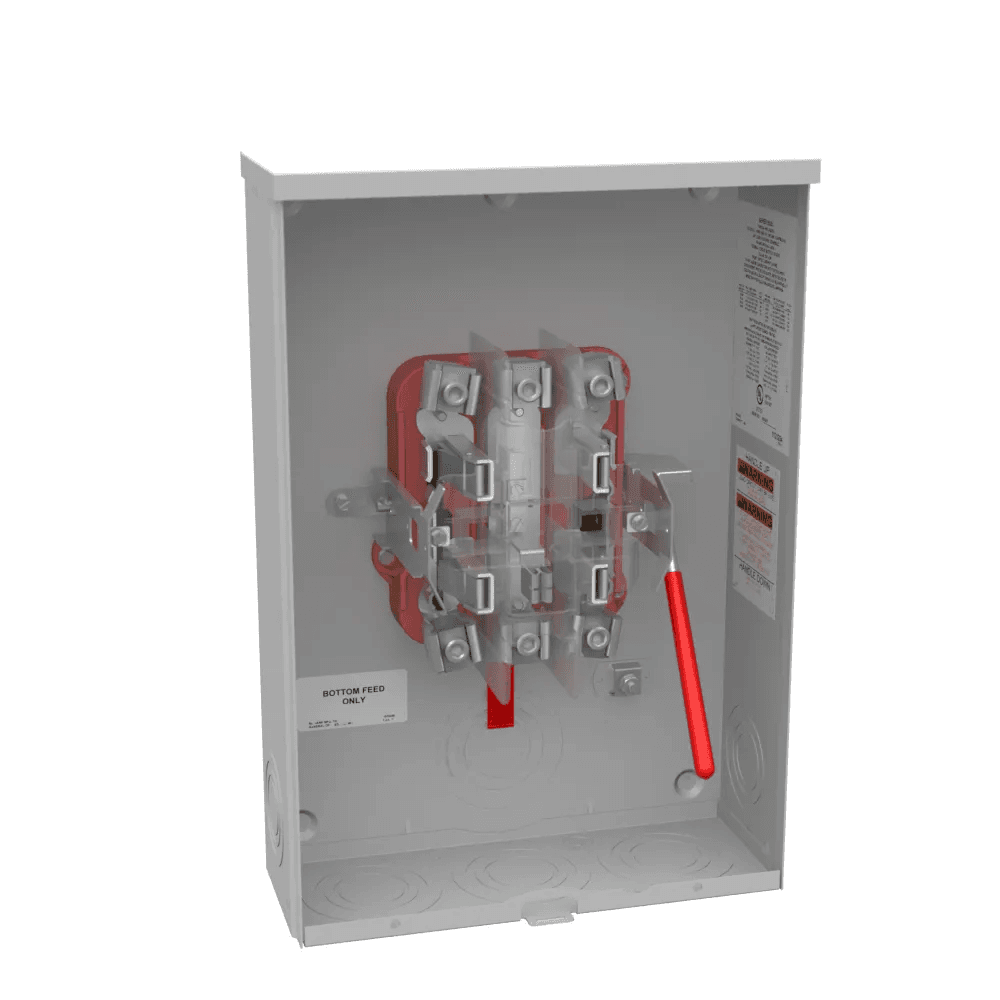

5 Terminal 1-Position 200A Ringless Meter Socket With Lever Bypass U2047-O

Type: Ringless Meter Socket Application: Meter Socket Brand: Milbank Standard: UL Listed; Type 3R (Outdoor Rated) Phase: Single Phase (1 Phase) Frequency Rating: 60 Hz Voltage Rating: Up to 600 VAC Amperage Rating: 200 Amps Continuous Main Breaker: None (No Main Breaker) Number of Main Breakers: 0 Number of Meter Positions: 1 Number of Jaws: 5 Terminal Number of Receptacles: 0 Line Side Wire Range: 6 AWG – 350 kcmil Load Side Wire Range: 6 AWG – 350 kcmil Terminal Type: Lay-in Equipment Ground: Bonded Ground Strap Material: G90 Galvanized Steel with Powder Coat Finish Insulation: Glass Polyester Knockouts: True (Pre-punched for easy installation) Cable Entry: Underground Hub / Closing Plate: Plain Top Bypass Provision: Lever Bypass Mounting: Surface Mount Height: 19 in Width: 13 in Depth/Length: 4.844 in
