6k TK Trailer Axle - 6000 lb Electric Brake 6 Lug - (4" Drop), 85/00 (Loose Spring Seats) / 6x5.5 Bolt Pattern / 6x5.5 Bolt Pattern

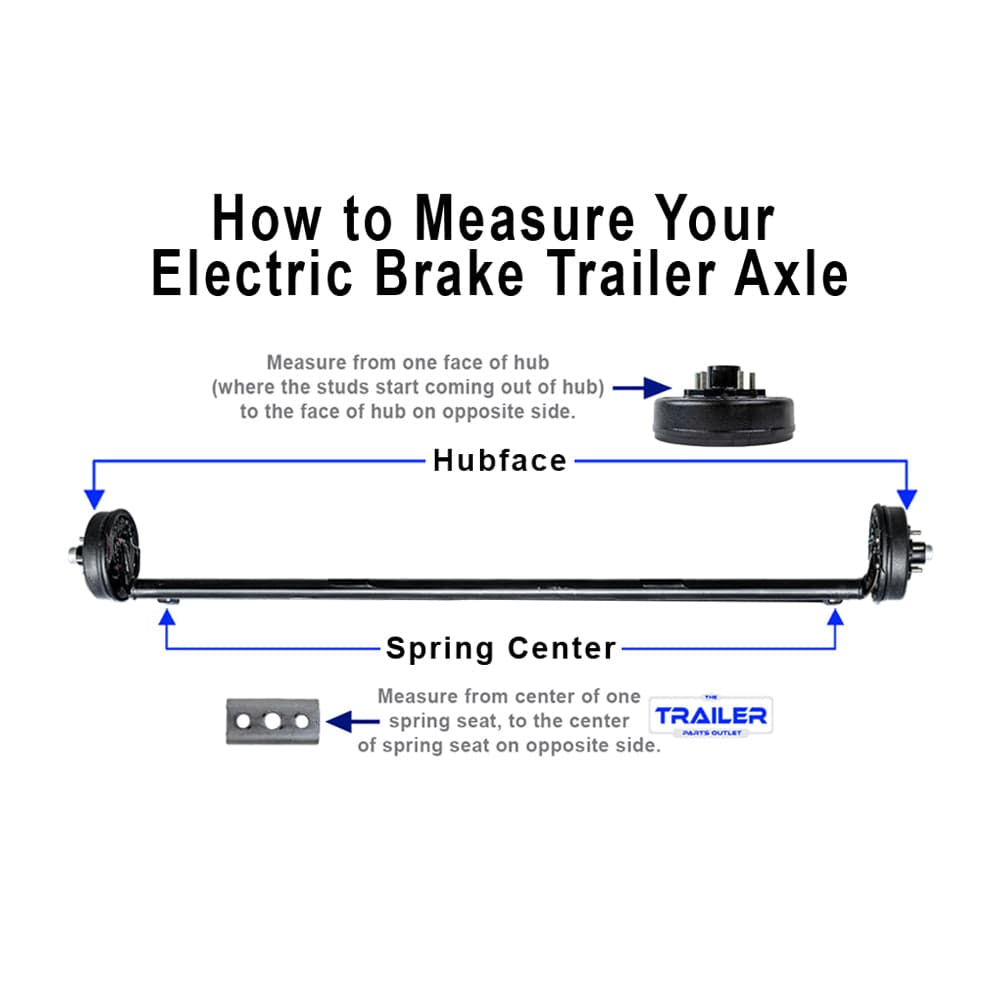

85/00" (Loose Spring Seats) | Specs: 6,000 lbs TK Trailer Axle (6K Capacity), Tube: 3", Bolt Pattern: 6x5.5, Standard 4" Drop, Electric Brake: 12x2", This axle is not ABS compatible Internal Components: 5.2k-6k (5200-6000 lb Capacity) Bearing Kit (2 sets). Each set includes: Double Lip Grease seal, Outer Race, Inner bearing, Inner Race, Cotter Pin, Outer Bearing, Tang Washer - for EZ-Lube Spindle applications, Hub/Dust/Grease Cap. 6k TK Axle Studs - 1/2" How to Measure Your Drop Trailer Axle - Hubface: Measure from one face of hub (where the studs start coming out of hub) to the face of hub on opposite side. Spring Center: Measure from center of one spring seat, to the center of spring seat on opposite side (see image in gallery for more details). Fully Assembled High Strength Straight Steel Axle Tube. Note: Axle comes with loose spring seats that will need to be welded on. Designed for use on Light Duty Trailers: Utility, Boat, Car Haulers, ATV, Lawn & Landscape, Motorcycle, BBQ Pit, Cargo, Enclosed, RV Trailers and more
