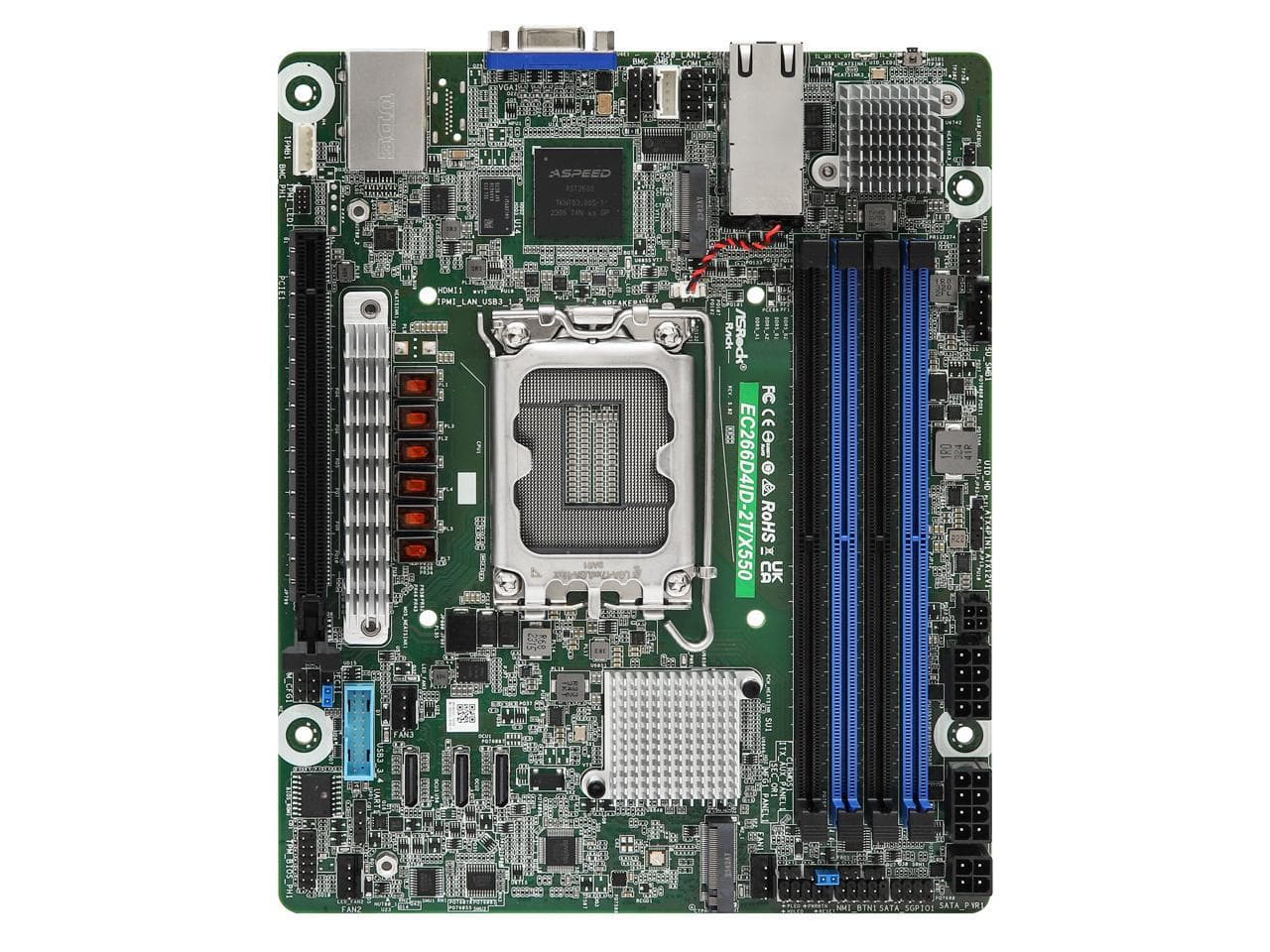

ASRock rack EC266D4ID-2T/X550 Deep Mini-ITX Server Board — Intel Xeon E-2400 & Intel® Pentium® Gold G7400/G7400T (Intel® C266)

Deep mini-ITX board (6.7" x 8.2") engineered for compact server and workstation builds. Compatible with Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors and based on the Intel® C266 chipset. Memory is handled by 4 DIMM slots (2DPC) with support for DDR5 ECC UDIMM. Expansion includes 1 PCIe5.0 x16 plus three OCuLink connectors: 1 OCuLink (PCIe4.0 x4 or SATA 6Gb/s), 1 OCuLink (PCIe4.0 x4), and 1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s). Storage options feature 2 M.2 (PCIe4.0 x4) slots and 8 SATA 6Gb/s ports. Networking is provided by 2 RJ45 (10GbE) ports powered by Intel X550. Power choices include an ATX PSU or 12V DC-in, and the board offers Remote Management (IPMI).
