AUTOOL DM301 Automotive Diagnostic Multimeter Kit Oscilloscope Multimeter AC/DC Voltage Test Ohmmeter 8 Test Functions for All Cars

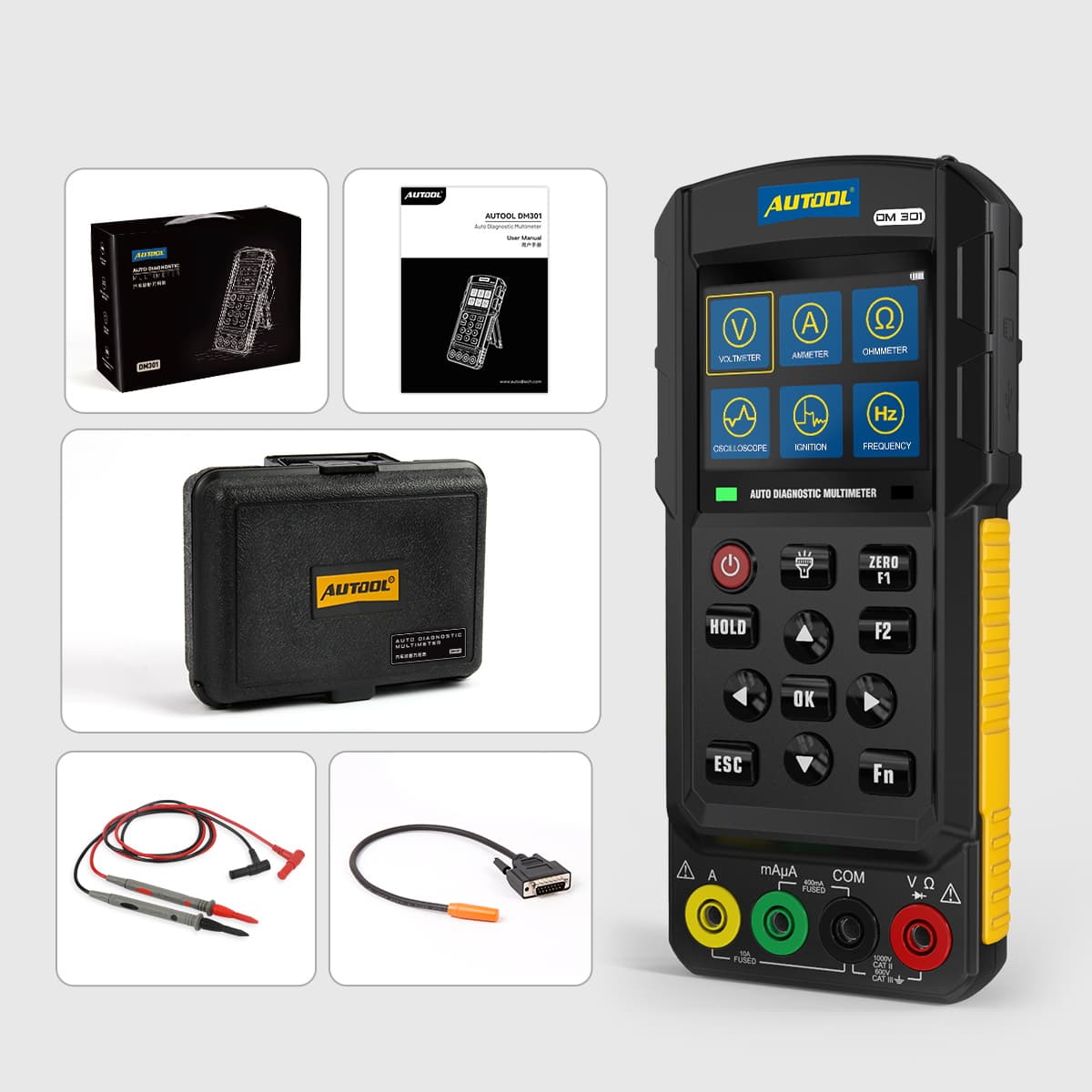

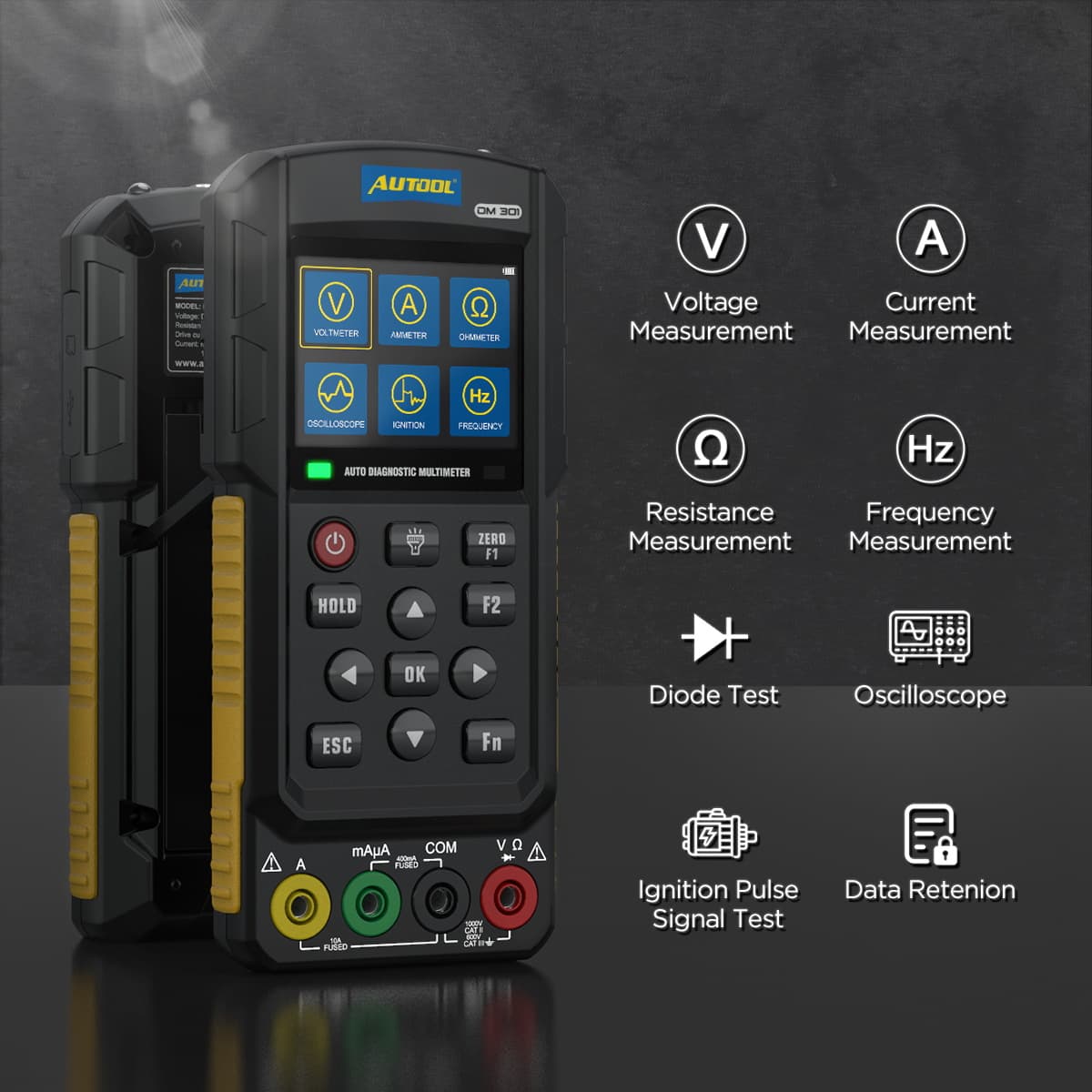

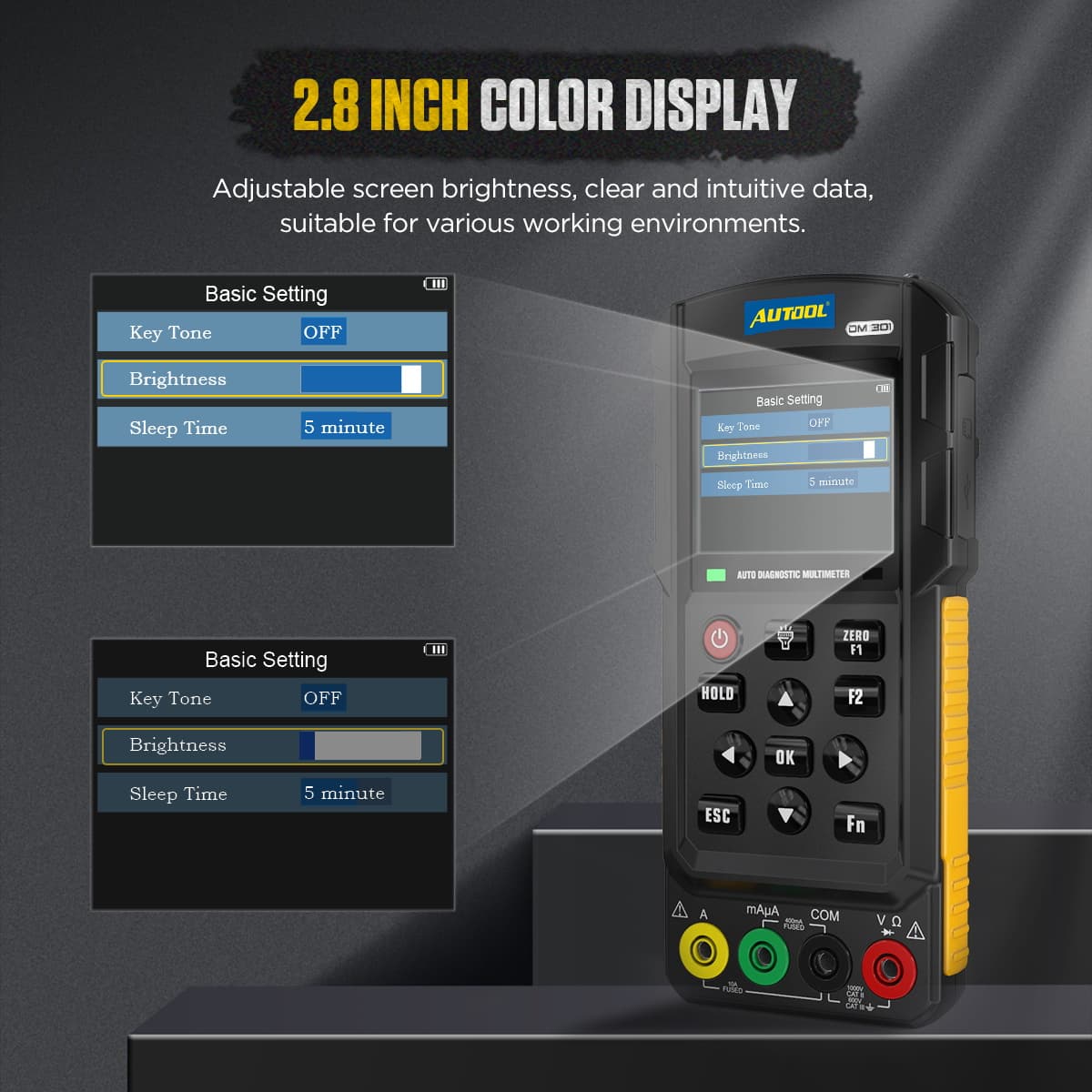

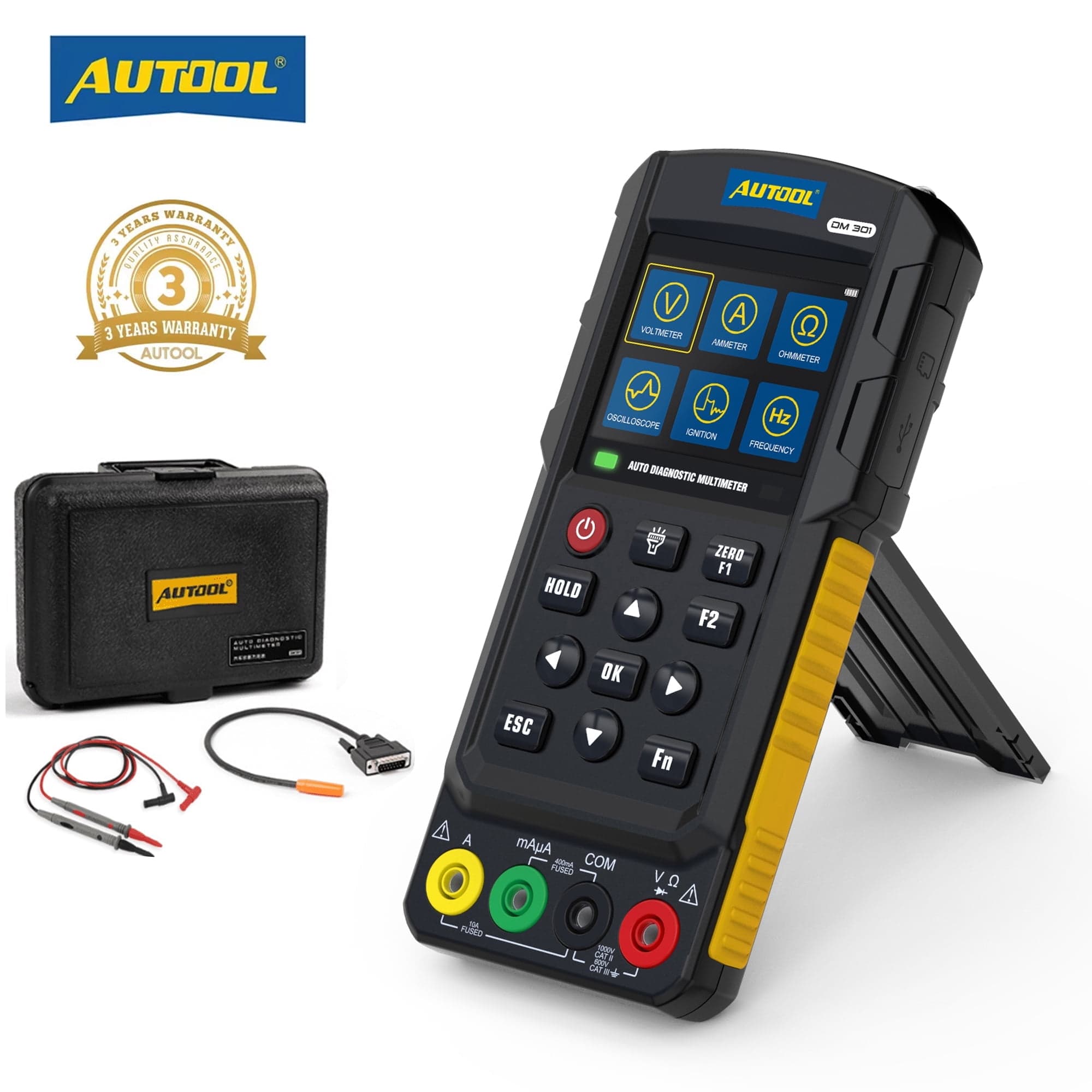

DM301 Diagnostic Multimeter Key Features: 8 Test Fuctions: DC/AC voltage measurement, DC/AC current measurement, resistance measurement, frequency measurement, diode test, oscilloscope test, ignition signal test, data retenion. 2.8 Inch Color Display: Adjustable screen brightness, clear and intuitive data, suitable for various working environments. Portable Tool Box: The main unit and accessories can be well stored, easy to carry, and the box is resistant to flling and crashing, effectively protects the instrument. Software Upgrading: The instrument can update the application software with SD card and copy the updated file to SD card. Multi-language Support: Support mutilingual settings: English, Russian, French, Italian, German, Spanish, Portuguese, Polish, Dutch, Chinese, Korean, Japanese. LED Light: To enable users to successfully complete circuit testing even in a dark environment. DM301 Diagnostic Multimeter Parameter: Input impedance for the voltage measurement: it is 2~3MΩ when the voltage is lower than 160V; it is 10MΩ when the voltage is higher than 160V. The maximum input voltage is 1000Vpp; The analog bandwidth is 500KHz; The voltage range is converted automatically; The 10A terminal fuse for current measurement is 15A self-re covery fuse, and the maximum measurable current is 20A; The current measurement mA/uA terminal fuse is 0.5A self-recovery fuse, and the maximum measurable current is 200mA; Working temperature: 0~40°C(32~104°F) Humidity: ≤75%; Storage temperature: 10~50°C(14~122°F) Humidity: ≤70%; Altitude: 2000m. Oscilloscope Mode: is a complete itelligent measurement system，which includes signal input, data sampling, data processing and automatic search, with the waveform test bandwidth of 500KHZ. With a variable sampling frequency, the slowly varying signal amount can be measured. It is applicable to measuring and observing various signals on the automobile circuit during the car overhaul, including the motor drive signal and motor power voltage of new energy vehicle, fuel car engine ignition pulse signal, camshaft signal, crankshaft signal, wheel speed sensor signal, oxygen sensor signal and so on. About AUTOOL AUTOOL has launched a series of professional automotive products, including smoke leak detectors, welding machines, head-up displays, fuel injector testers and cleaners, battery testers, electric hydraulic jacks and engine timing tools, etc. AUTOOL aims to make your car life easier and more convenient. Buy It With Confidence Our Products has obtained the certificate of conformity, Passed FCC EMC CE ROHS IC SAA CCC GS certification and test. For damage caused by non-human factors, we promise to provide a 3-year warranty, no need to purchase an additional Protection Plan. Why Choose AUTOOL Official Store? 1. Global Leading Brands, popular among customers, worth to trust. 2. We are the Only AUTOOL Official Store in Walmart! 100% original products, best price and Three-year warranty. 3. All products have been passed strict quality test before shipment, make sure high quality. Lifetime Tech Support from AUTOOL Official Store. 4. Support Wholesale Price and Dropshipping.
