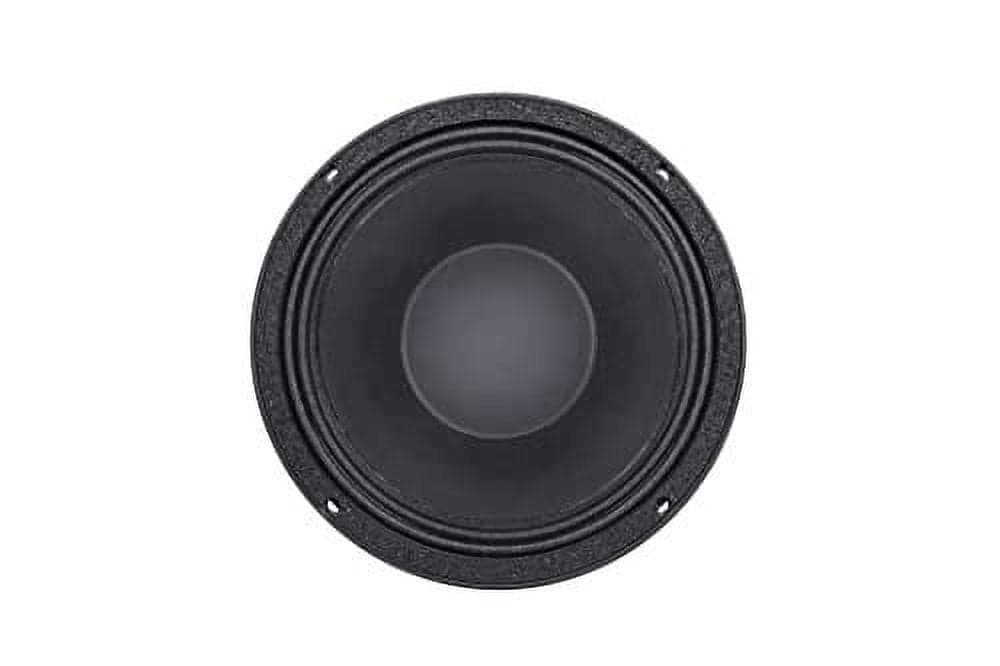

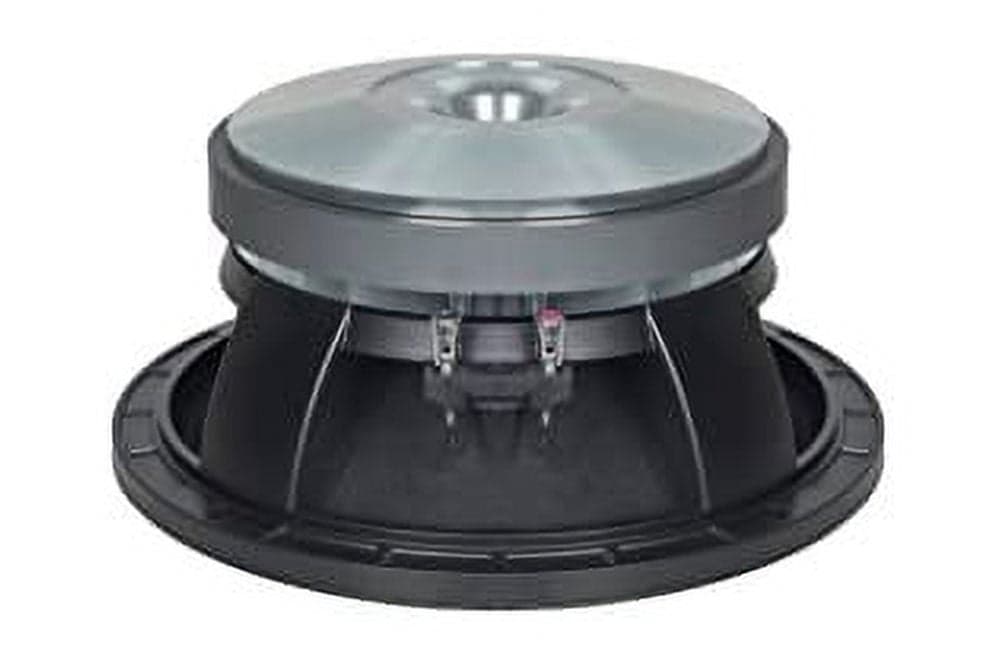

B & C Speakers 10MD26-8 10-Inch Midbass Driver Woofer 8 Ohm 359 RMS / 700 Watts Max - ALT010MD268M

High-output 10.0-inch midbass woofer from B & C Speakers, model 10MD26-8. Built for pro car and motorcycle audio use, this corded-electric speaker features an 8 Ohm nominal impedance and robust power handling for demanding applications. Performance - Resonance frequency: 76 Hz - Frequency response: 80 - 4000 Hz - Sensitivity (1W/1m): 100.0 dB - Nominal impedance: 8 Ohms (minimum impedance: 7.2 Ohms) - Nominal power handling: 350 Watts - Continuous power handling: 700 W Motor and Voice Coil - Voice coil diameter: 76 mm (3.0 in) - Winding material: Aluminium - Winding depth: 11.0 mm (0.43 in) - Magnetic gap depth: 8.0 mm (0.31 in) - Flux density: 1.45 T - Pole design: T-Pole - Spider type: Single - Magnet material: Ferrite Cone and Suspension - Cone shape: Exponential - Surround shape: Double Roll - Former material: Glass Fibre - Woofer cone treatment: None Mechanical / Physical - Speaker size: 9.84 inches (10.0-in) - Nominal outer diameter: 250 mm (10.0 in) - Overall diameter: 262 mm (10.3 in) - Bolt circle diameter: 245 mm (9.6 in) - Baffle cutout diameter: 230.0 mm (8.8 in) - Mounting depth: 124 mm (4.9 in) - Flange and gasket thickness: 14 mm (0.55 in) - Air volume occupied by driver: 2.6 dm3 (0.09 ft3) Weights and Packaging - Net weight: 7.3 kg (16.1 lb) - Shipping units: 1 - Shipping weight: 7.9 kg (17.4 lb) - Shipping box dimensions: 295 x 314 x 175 mm (11.61 x 12.36 x 6.89 in) Other - Power source type: Corded Electric This midbass driver delivers high sensitivity and extended bandwidth (80–4000 Hz) with a sturdy ferrite motor and aluminium voice coil for reliable performance in vehicular and compact PA installations.
