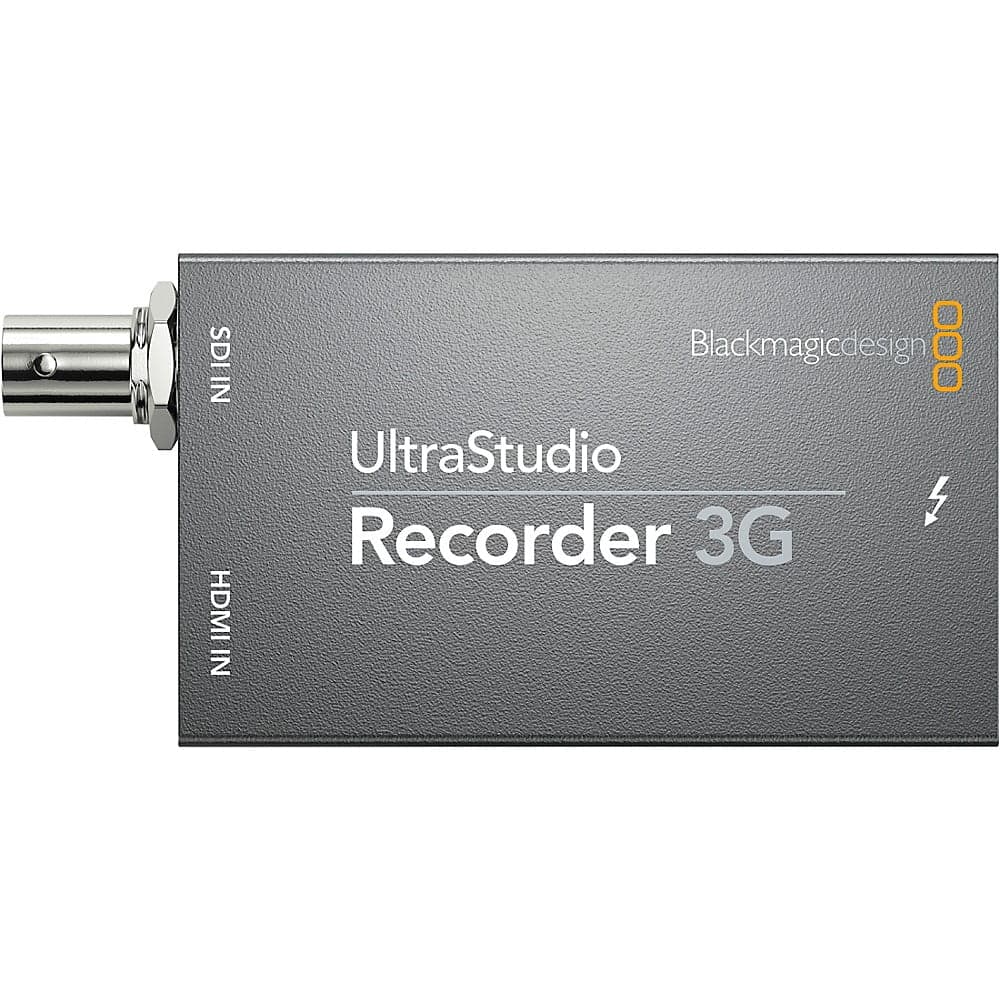

BLACKMAGIC DESIGN UltraStudio 3G Recorder (BDLKULSDMAREC3G)

Overview: The Blackmagic Design UltraStudio 3G Recorder is a Thunderbolt 3 capture and playback device offering SDI and HDMI outputs with embedded audio and broad codec support. It connects to Mac, Windows and Linux systems via Thunderbolt 3 USB-C and is powered through the Thunderbolt cable. Video and Audio Outputs - SDI Video Outputs: 1 - SDI Rates: 270Mb, 1.5G, 3G - SDI Audio Outputs: 16 Channels embedded in SD/HD - HDMI Video Outputs: 1 - HDMI Audio Outputs: 8 Channels embedded in SD/HD Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. Computer Interface and Compatibility - Computer Interface: Thunderbolt 3 (Mac OS, Windows and Linux) - Requires computer with a Thunderbolt 3 USB-C port. Powered by Thunderbolt cable. - Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later; Windows 8.1 and 10 (both 64-bit); Linux. Included Software and Firmware - Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. - Internal Software Upgrade: Firmware is built into the software driver. Upgrades are loaded at system start or via updater software. Supported Applications DaVinci Resolve, Adobe Premiere Pro CC, Adobe Photoshop CC, Sony Catalyst Production Suite, Grass Valley Edius, Tools On Air Just In, Softron MovieRecorder and Mreplay, Adobe Flash Media Live Encoder, Metus Ingest, Cinegy Capture Pro, Glookast Capturer, Burst Video [REC]Marker and Webclip2Go, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne and Uniplay-CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard and CoralCG, Open Broadcaster Software Studio, Nautilus Studio Nemo3D, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Title Live and Titler Pro, SGO Mistika. Video Standards and Formats - SD Video Standards: 525i59.94 NTSC, 625i50 PAL - HD Video Standards: 720p50, 720p59.94, 720p60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30; 1080i50, 1080i59.94, 1080i60 - 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI; 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI - Multiple Rate Support: SDI and HDMI video connections are switchable between SD and HD. SDI and HDMI Technical Details - SDI Compliance: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M - A/B SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning - SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit - SDI Video Sampling: 4:2:2, 4:4:4 - SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards - SDI Color Space: REC 601, REC 709 and REC 2020 - HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit - HDMI Video Sampling: 4:2:2 and 4:4:4 - HDMI Color Precision: 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards - HDMI Configuration: HDMI 2.0a supports Deep Color - HDMI Color Space: REC 601, REC 709 and REC 2020 - Copy Protection: HDMI input cannot capture copy-protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. Image Processing - Hardware Frame Buffer: v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB) - Colorspace Conversion: Hardware based real time Power, Environmental and Physical - Power Requirements: Powered by Thunderbolt cable. Requires computer with a Thunderbolt 3 USB-C port. - Operating Temperature: 32 Degree to 104 Degree F (5 Degree to 40 Degree C) - Storage Temperature: -4 Degree to 113 Degree F (-20 Degree to 45 Degree C) - Relative Humidity: 0% to 90% non-condensing - Dimensions: 3.62 x 1.77 x 0.98" (9.2 x 4.5 x 2.5cm) - Weight: 5.57oz (157.9g)
