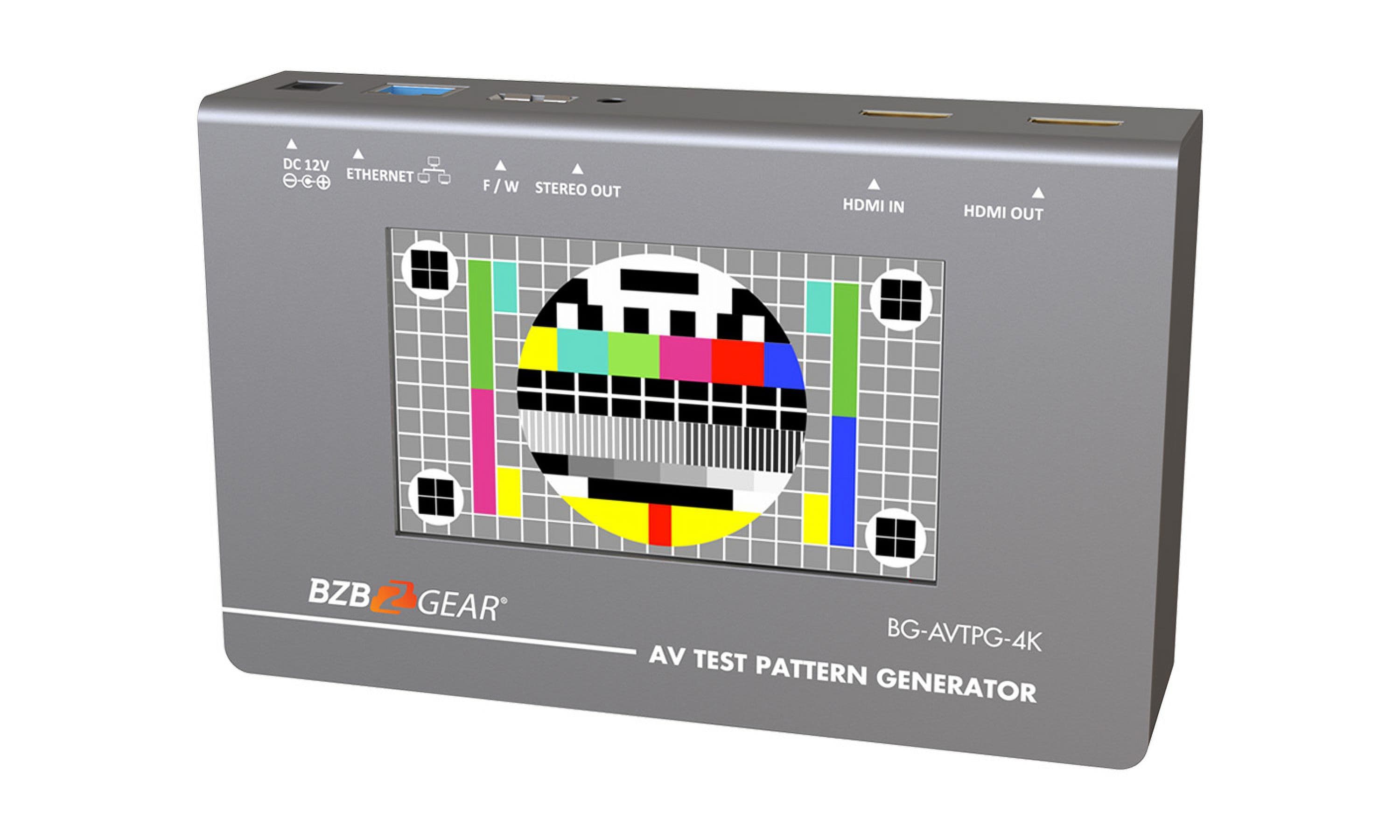

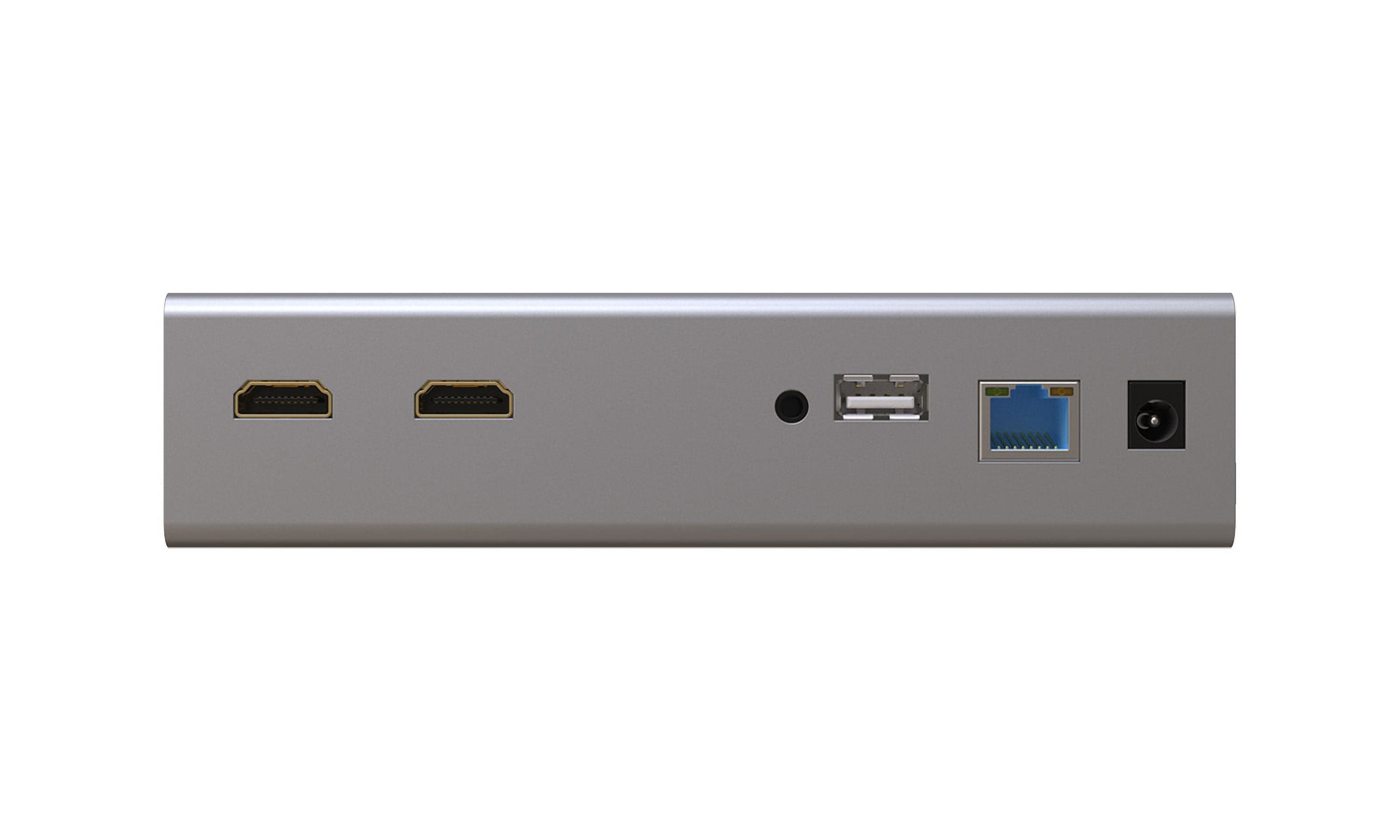

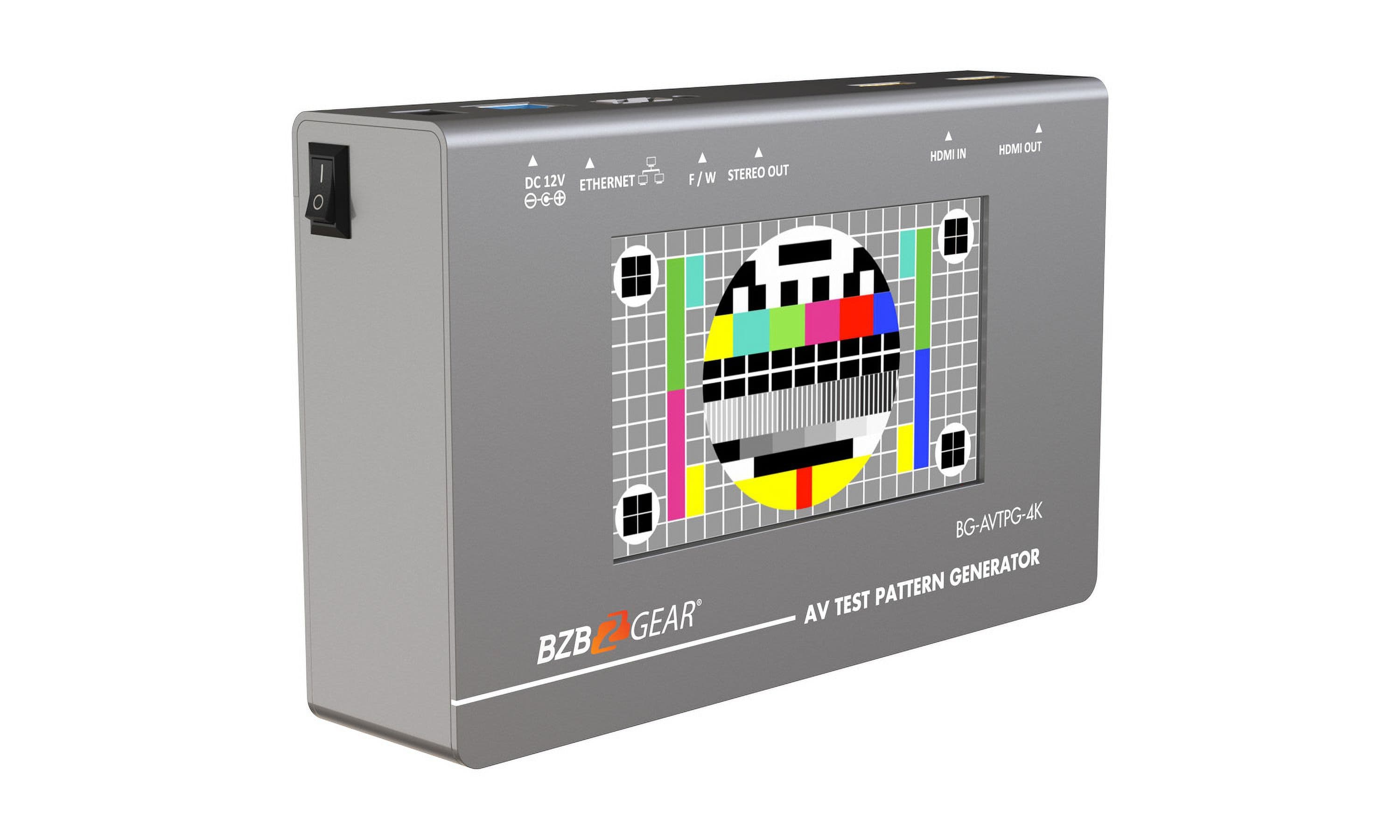

BZBGEAR 4K/1080P HDMI 2.0 18Gbps Video Test Pattern Generator/Tester and Analyzer with Ethernet

4K Support - 4K2K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit HDR pattern generator USB 2.0 - Supports mouse control Audio Support - 8ch LPCM with selectable sampling rate up to 192kHz 3.5 mm Output - Allows for testing of analog audio equipment Durable Chassis - Designed to hold up to the demands of field work 18Gbps - High-bandwidth HDMI 4K2K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit HDR pattern generator 4.3 touch panel Supports mouse control Supports user control device through Ethernet Firmware update through USB Flash Drive Supports user defined pattern up to 2GB Embedded LINUX KERNAL system with limitless extension Scrambler supported for videos over 340MHz output wise Loop test capability to provide statistics analysis for connection stability Supports HDMI loop through function HDCP test allow verify HDCP of HDMI source and transmit HDCP encrypted video Qualified physical layer performance to ensure the best compatibility Battery powered for portability, it can extend operation time with full load up to 4 hours Rechargeable battery design with short charging time about 2 hours
