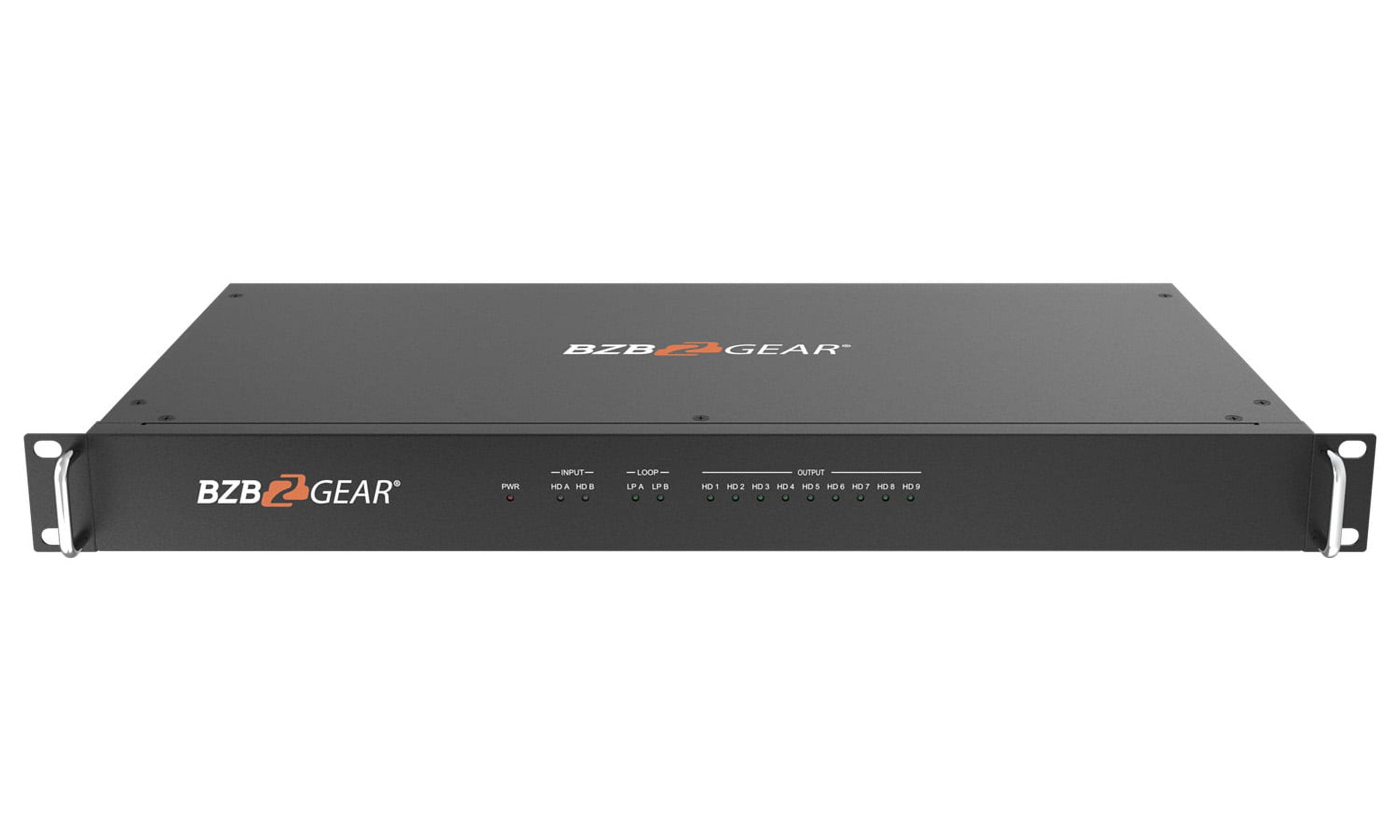

BZBGEAR 4K UHD HDMI Video Wall Processor & Switcher — IP / RS-232 / CEC Control — Dual HDMI Loop-Outs — Up to 9 TVs

Engineered for multi-screen displays up to 9 TVs, this BZBGEAR video wall processor handles video wall layouts at resolutions up to 4K@60Hz (3840x2160@60Hz) while maintaining HDCP 2.2 compliance. It accepts up to two HDMI inputs and provides dual HDMI loop outs so you can loop out the HDMI A/B signal for devices connected to each output. Audio can be extracted via 3.5mm and Balanced Analog Audio Outputs and supports 2.0 channel, 5.1 channel, LPCM, Dolby, AC3, and DTS audio. Control and integration options include TCP/IP, RS-232, HDMI CEC and PC software; it also supports CEC control through PC Tool or line commands. Built for installation flexibility, the unit offers 180° rotation plus dual-mode bezel compensation and is housed in a sturdy metal case. Firmware is easily upgradable for future enhancements. Serial communication settings: Baud rate: 57600, data bit: 8, Stop bit: 1, no parity.
