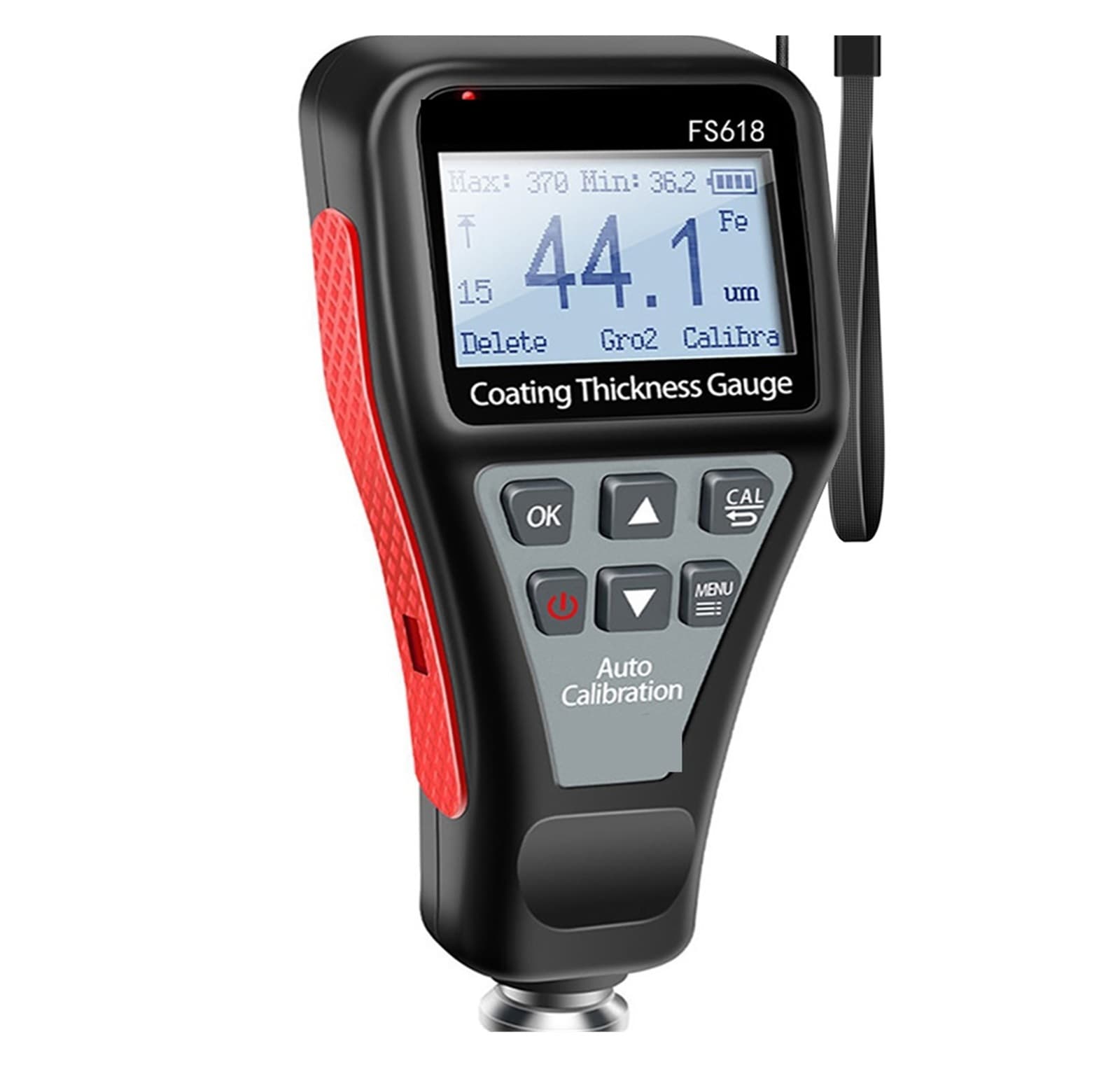

Car Paint Thickness Gauge Set Digital Led Screen Thickness Tester Meter 1500Um FE/NFE Paint Measure Tools

Number of calibration points: linear smooth calculation of 4 calibration points Backlight display: 10 levels adjustable/off Measurement method: single measurement/continuous measurement Battery: 2 No. 7 batteries Measuring range: 0~1500um (0~590m data storage: 6 groups X 100 for each group Minimum radius of curvature of convex surface: 5mm (197m) (excluding battery Minimum concave curvature radius: 50mm (1970m) Low power prompt: lower than 2.4V Minimum measured area diameter: 20mm (787m) Automatic shutdown: shutdown without operation within 3 minutes Minimum substrate thickness: 0.5mm (19.7m) Measurement accuracy: ± (3% H+1um) [± (3% H+0.04mi)] Display screen rotation angle: 0 °, 90 °, 180 °, 270 °/off Upper and lower limit range: 0~1500um (0~590mil) free setting/closing Colour:Photo Color Material:ABS Package Contents 1 x Coating Thickness Gauge 2 x iron substrates 1 x U disk 1 x data cable 5 x calibration sheets 1 x storage bag 1 x Chinese and English manual
