CCTV IP Camera Tester AHD+TVI+CVI+Analog CCTV Camera Tester Monitor VGA PoE Power Output RJ45 TDR Cable Tester

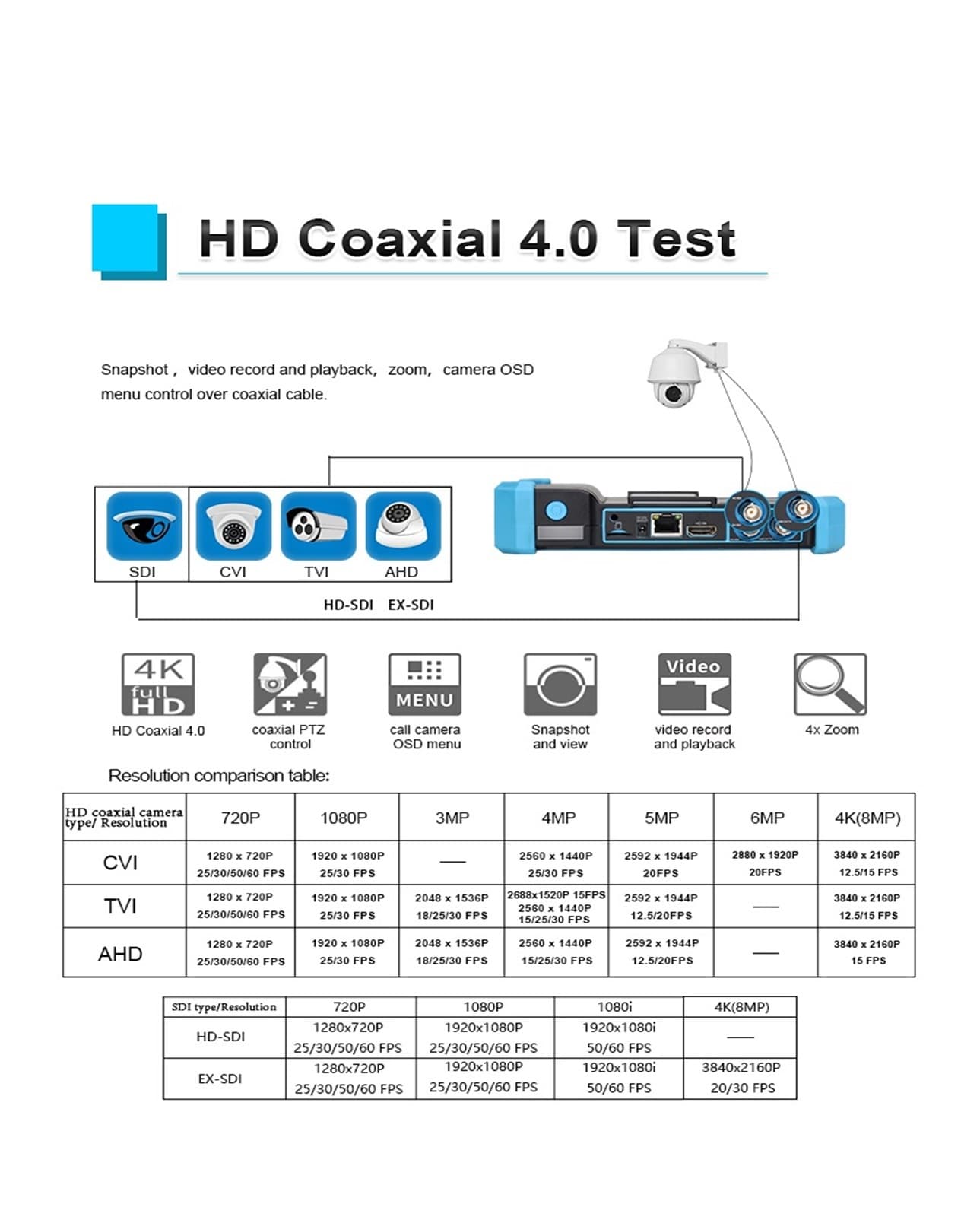

Model: IPC-5100/5200 Plus series 5.4 inch IPS touch screen, 1920x1152 resolution 8MP CVI/ TVI/ AHD camera test 8MP EX-SDI, HD-SDI, 3G-SDI camera test* H.265/H.264, 4K video display via mainstream VGA input, support 2048 x 1152 60FPS* More details: Camera Test 5.4 inch IPS touch screen, 1920*1152 resolution Analog camera test, PTZ controller 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback coaxial PTZ control call OSD menu 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback coaxial PTZ call OSD menu 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback coaxial PTZ call OSD menu 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record & playback coaxial PTZ call OSD menu HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback coaxial PTZ call OSD menu 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record & playback coaxial PTZ call OSD menu Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback coaxial PTZ call OSD menu Cable test: Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report Other Functions: Network tool: IP scan, Port Flash, DHCP server, Trace Route Traffic monitoring, display network port or connection real-time upload and download speeds and other network parameters Customers self-update software, you can install apps Display its genuine resolution of the IP camera images in, support record and save the /LED lamp, calculators, music players and other application tools 7.4 V /3350mAh Lithium Battery, after 3-4 hours charging, working time lasts 6 hours
