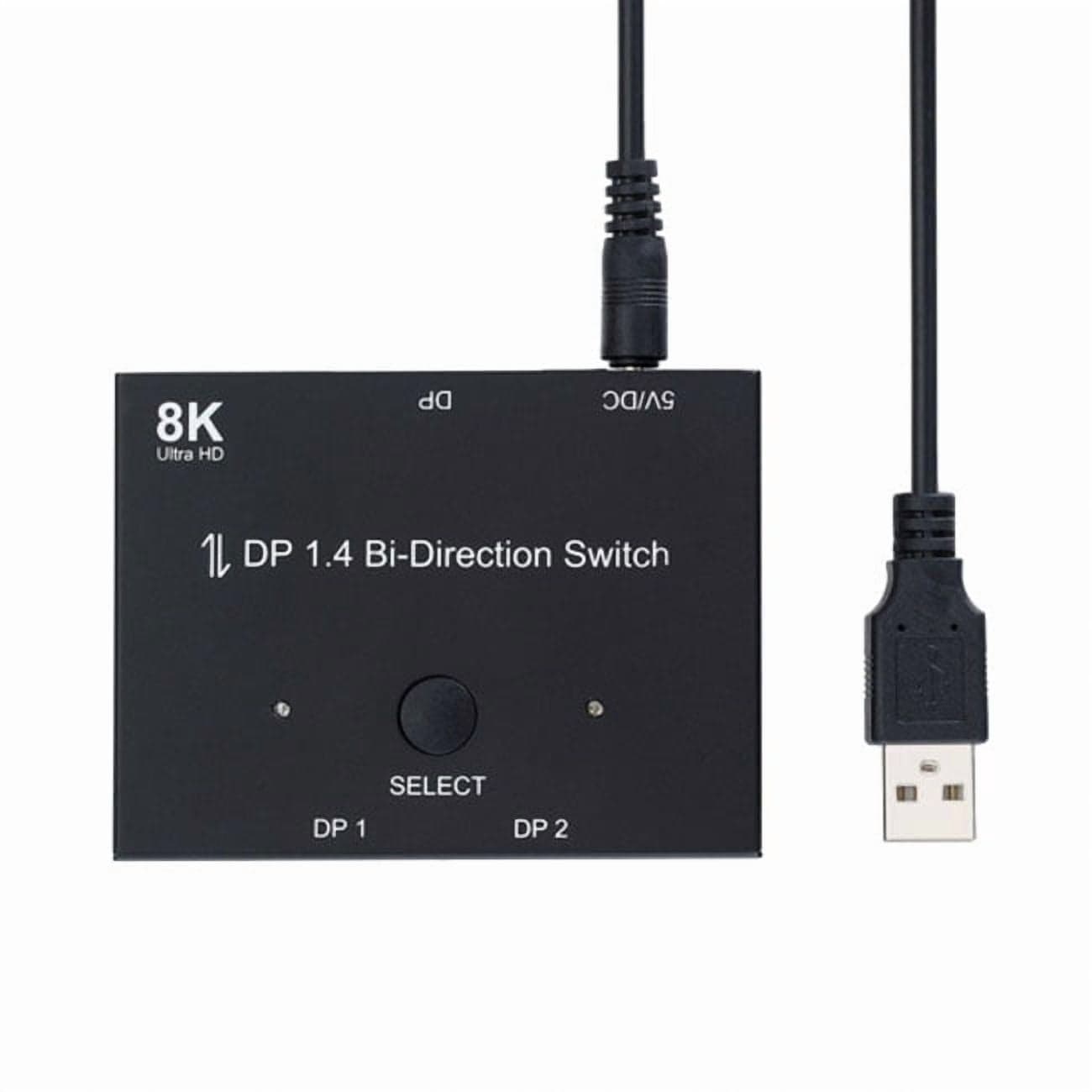

Chenyang CY DP DisplayPort 1.4 Bi-Direction Switch MST Hub Support HDCP SST Extended 8K@30hz 4K@60hz Convertor

Overview: The Chenyang CY DP DisplayPort 1.4 device functions as a bi-directional switch and MST hub, offering HDCP and SST support plus Extended mode. It can operate as a selector between two DP sources and one DP monitor, or let a single DP source be toggled across two displays (IMPORTANT NOTE: Two displays CANNOT display simultaneously). External power is required. Video performance: This DP 1.4 switch/splitter delivers high-bandwidth video up to 32.4Gbps and is backward compatible with earlier DisplayPort standards. Supported resolutions include 8K@30Hz, 4K@120Hz, 4K@60hz and 1080P@240Hz. To achieve these modes, connect standard DP 1.4 cables. Operation and indicators: Setup is straightforward. The unit is effectively plug-and-play once powered; press the front button to switch inputs or outputs and the LED indicators will show the active channel. Switching completes in about one second. Modes of use: - Mode One (Splitter): One PC connects to two displays (note the two displays cannot show different content simultaneously). - Mode Two (Switch): Two PCs connect to a single display; press the button to toggle which PC is shown on the monitor. Notes: Use certified DisplayPort 1.4 cables for full resolution/refresh support. The box supports both 8K DP 1.4 splitter and 8K DP 1.4 switch functionality, and maintains compatibility with prior DP versions.
