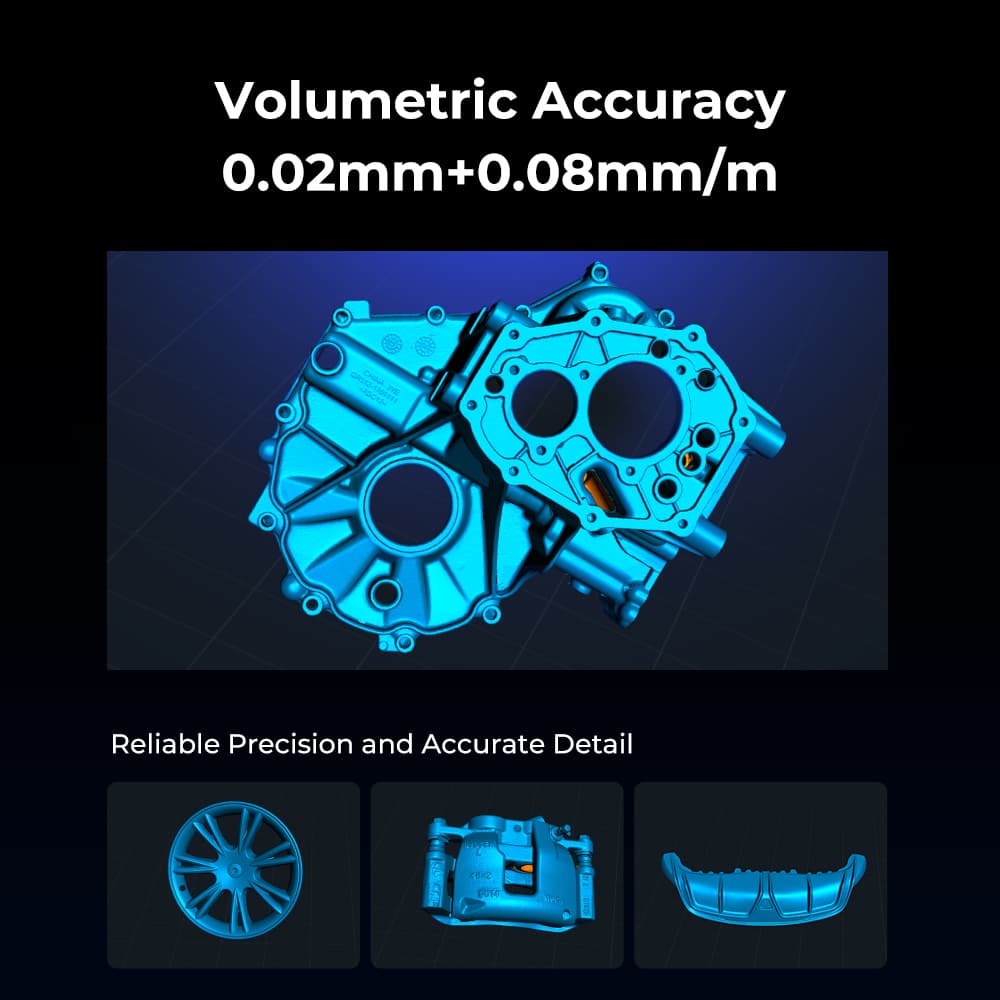

Creality Raptor Pro 3D Scanner 3-in-1 Multi-function Scanning 0.02mm Volume Accuracy Anti-shaking Fast Scan Speed

Two Blue Light Modes with Seamless Switching: 22 cross laser lines for scanning medium to large objects quickly, 7 parallel laser lines for partial HD scanning, with dual modes that can be freely switched, achieving both scanning efficiency and precision. 22 Cross Laser Lines: Scan Medium to Large Objects Quickly Provide comprehensive coverage for medium/large objects, minimizing the need for multiple passes or redundant scans. 7 Laser Lines for Partial HD Scanning: Each laser line is as fine as 0.1mm, capturing sharper edges and richer details. High-quality 660,000 points/s, Fast Scan Speed:Process up to 660,000 points per second, making it ideal for quickly scanning medium to large objects. High Scanning Speed for Smooth Scanning: Laser Line Scanning Scan frame rate can reach up to 60fps; Infrared Structured Light Scanning Scan frame rate can reach up to 30fps Objects Between 0.2-157''/ 5-4000mm: Combining blue laser lines with infrared structured light, Raptor Pro can scan objects ranging in size from 5*5*5 mm³-4000*4000*4000 mm³. Effortlessly scanning automobile components, engineering parts, molds, human bodies and more. Unique Face & Body Algorithm:Face & body mode is equipped with a unique face mapping algorithm that captures more details and easily scan hair, a human body scan only needs as quick as 2 minutes. Wider Applications, Better Performance: Blue laser with strong environmental resistance, delivers outstanding performance even in outdoor environments. 7-line laser: <50000 lux 22 cross lines: <100000 lux Anti-shaking: Equipped with One-Shot 3D imaging technology, Raptor Pro is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning Peaceful Scanning with LED Lights: Blue light provides supplementary light for laser line scanning. White light is used to enhance the brightness of color textures. Scan Black/Metal Objects Without Sprays: With strong material adaptability, you can scan black/metal objects without sprays. Creality Raptor Pro: High Performance Structure; 24-bit Full-Color Scanning; Lightweight and Portable; Supports Expandable Scan Bridge 24-bit Full-Color Scanning in All Modes: With a High resolution RGB camera, it supports 24-Bit full-color texture capturing in all modes. Supports Expandable Scan Bridge: Allowing flexible switching between wired and wireless scanning modes for a more liberating scanning experience. *Scan Bridge is available for separate purchase if needed. Specification: Scanning Mode : Blue Light(7 blue parallel laser lines&22 cross blue laser lines) / NIR(infrared binocular structured light) >>Blue Light Mode: 7 blue parallel laser lines | 22 cross blue laser lines) Accuracy: Up to 0.02mm Volumetric Accuracy: 0.02+0.08mm/m Scanning Speed: 420,000 measurements/s | 660,000 measurements/s Single Capture Range: 270mmx170mm@300mm | 270mm x 170mm@300mm 341mm x 232mm@400mm 397mm x 290mm@500mm( 22 cross blue laser lines) Single Capture Range: 270mmx170mm@300mm | 270mm x 170mm@300mm 341mm x 232mm@400mm 397mm x 290mm@500mm Working distance: 160mm-400mm | 200-550mm Outdoor Scanning: Below 50,000 lux | Below 10,000 lux >>NIR(infrared binocular structured light) Mode: Accuracy：Up to 0.075mm Volumetric Accuracy: 0.075mm+0.1mm/m Scanning rate: 3,580,000 measurements/s Single Capture Range：630mm×550mm@1000mm Working distance: 170mm-1000mm Outdoor Scanning: Below 30,000 General Parameters: System Support: Windows 10/11(64 bit):i7-Gen10 and above, Nvidia graphics card (8GB video memory and above), 32GB memory and above Minimum：i7-Gen7, Nvidia graphics card (6GB video memory), 16GB memory macOS: 11.7.7 and above, Apple M1/M2/M3 series processors; RAM: 16GB and above Wireless Scanning: Support
