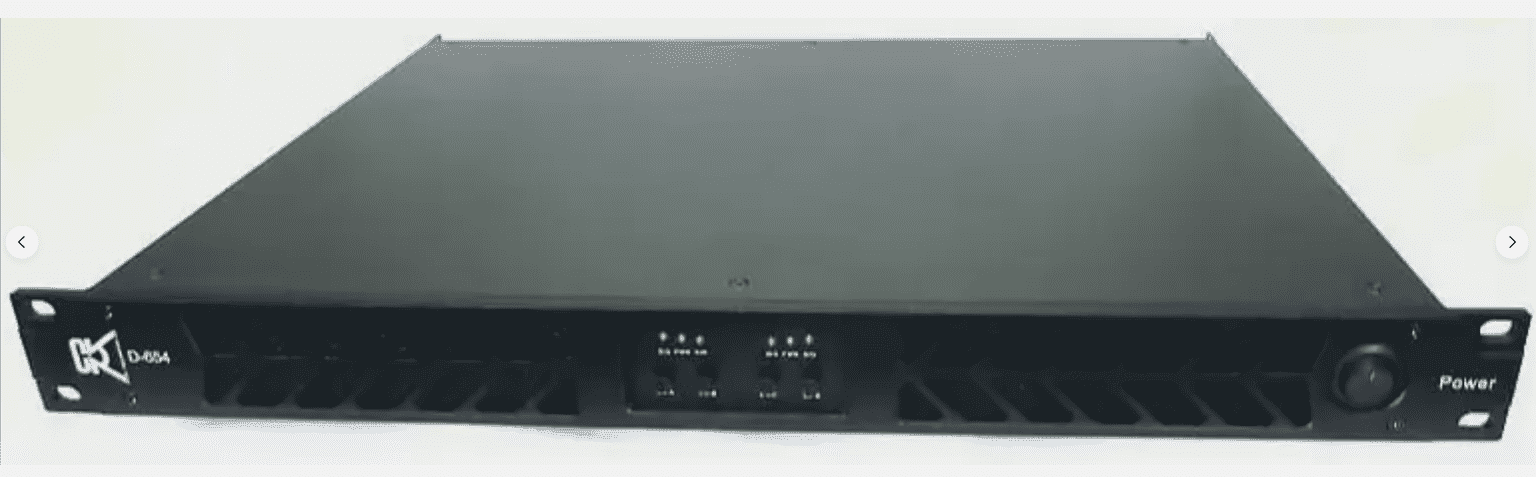

CVR D-654 Series Professional Power Amplifier 1 Space

High-power CVR D-654 Series professional amplifier built for demanding live and installed applications. Bridged RMS power per channel: 16Ω — 1300W x 2; 8Ω — 2200W x 2; 4Ω — 3740W x 2. Frequency response: 10Hz - 34kHz. Signal-to-noise ratio: >110 dBA. Channel separation (crosstalk) at 1 kHz: >90 dB. Inputs and outputs: Input connectors (per channel) are 3-pin XLR, electronically balanced. Output connectors (per channel) are speakon. Input impedance is 20 kOhm. Performance and electrical: Damping factor >5000. Slew Rate 50v/us. RMS Output Voltage 72.1. Operating voltage: 115v or 230v, 50 Hz or 60 Hz. Controls and protection: Level adjustment (per ch.) via a front-panel potentiometer with 31 position detents from -inf to 0 dB. Tour Class Protection covers short circuit, DC voltage, turn-on/off transient, current inrush, and sub/ultrasonic input.
