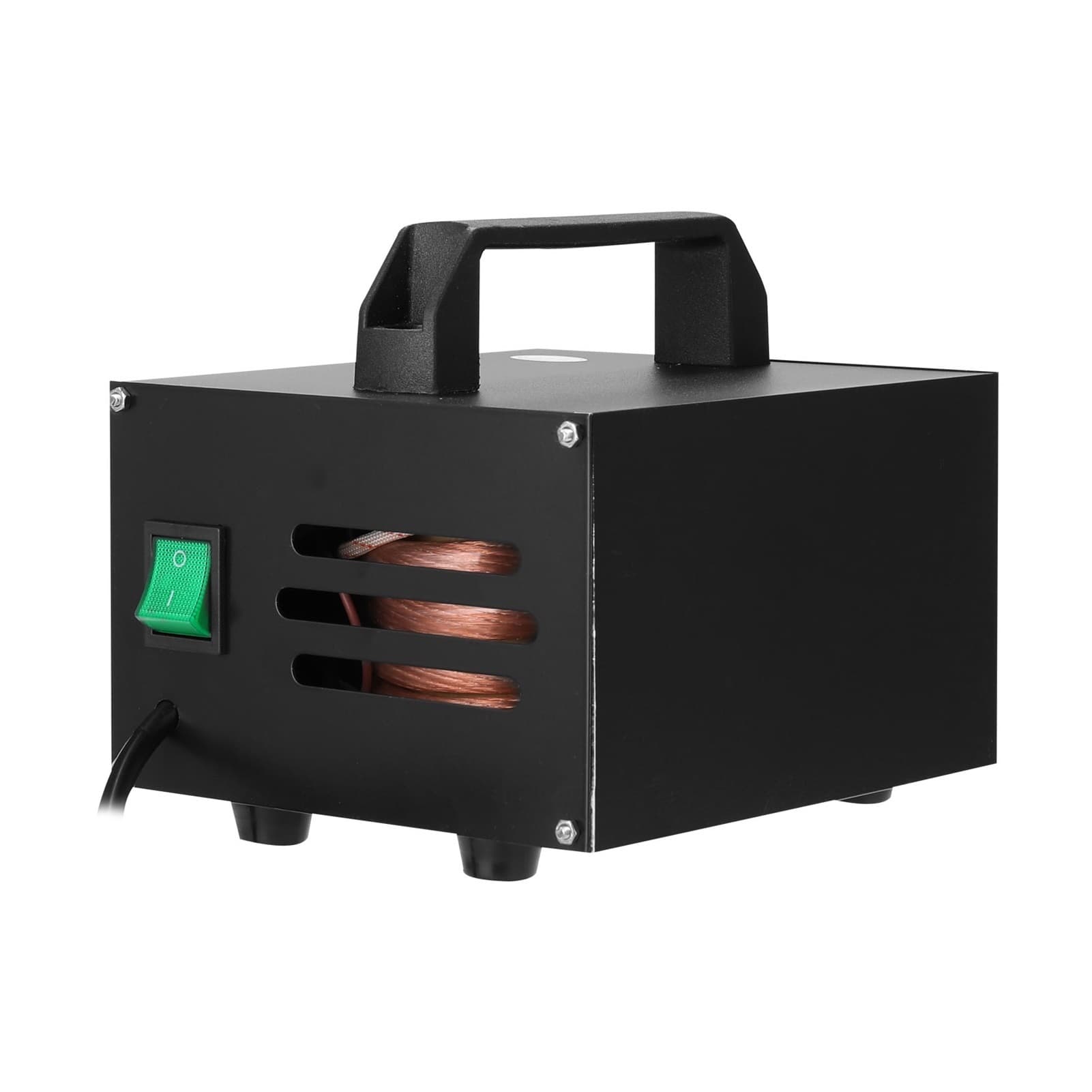

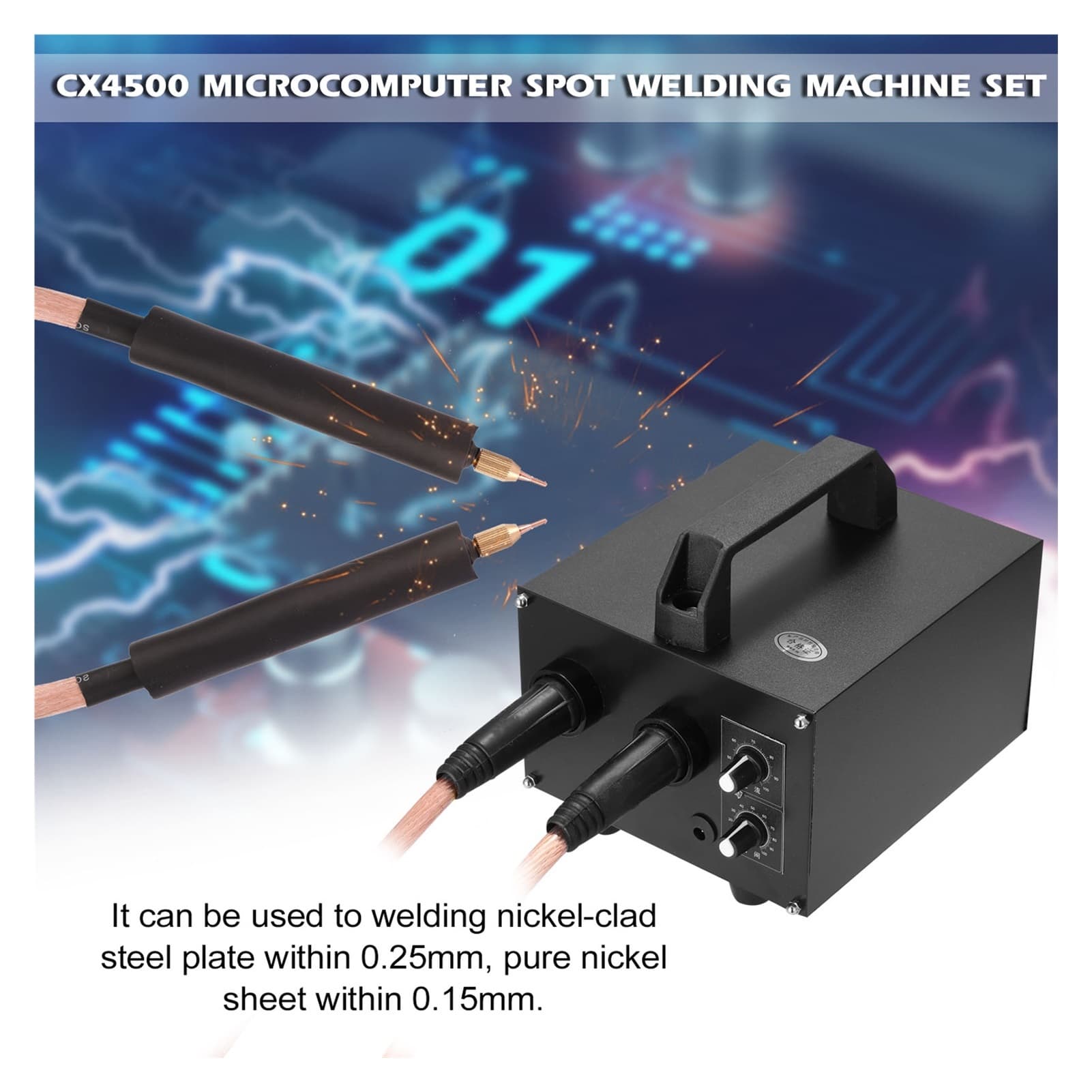

CX4500 Microcomputer Spot Welding Machine Set 20ms-1s Adjustable 640-1600A Current Adjustment for 0.25mm Nickel-clad Steel Plate

Spot Welding Machine Set, Spot Welders, Welding Equipment, Tools Specifications: Name: Spot Welding Machine Set Material: metal Model: CX4500 Current adjusting-range: 640A-1600A Time adjusting-range: 20ms-1s Maximum power: 6.7KW Maximum output voltage: 4.5V Maximum output current: 1600A Item size: 195 * 155 * 156mm / 7.68 * 6.10 * 6.14in Item weight: 5111g / 11.27lb Package size: 250 * 210 * 255mm / 9.84 * 8.27 * 10.04in Package weight: 5452g / 12.02lb Packing List: 1 * Spot Welding Machine 1 * Pair of Welding Pen 1 * Pedal 1 * Battery Jig 1 * Nickel Sheet 4 * Welding N-eedles Note: The spot welding machine cannot weld copper and aluminum materials. Don't press too hard when welding, the harder you are, the weaker the welding will be, just moderate strength. Do not use the battery for the first welding attempt. You can find a clean, non-destructive and distortion-free iron plate or steel plate, and put the nickel sheet on the iron plate, the current is 80 to 100, and the time is 0, you can test the machine! Using steps: Firstly, check the electrode and welding-needle of the machine, and the two electrodes can not contact each other. (if contact accidentally, don't worry, it will not damage the machine) Secondly, turn on the power switch, the power light will light up, and the machine will be entered into standby state, standby power consumption is 2W. Then, after entering the power-on state, adjust the current and time parameters according to the thickness of the weldment. The current is generally adjust to 80-100, and time is generally adjust to 0-10. The power situation is different in different regions, and the actual operation is generally adjusted from low to high, and welding firmly! Finally, place the nickel sheet flat against the battery, press the two soldering pens on the nickel sheet, adjust the current and time, step on the foot pedal and the work light flashes to complete the welding! Parameter analysis: Current: refers to the size of the welding output power, the value is converted, the minimum output. Time: refers to the length of the energization time during the welding process, numerical simulation, the longer the energization time.
