DBX DriveRack PA2 — Complete Speaker Management & AutoEQ Signal Processor with RTA Mic

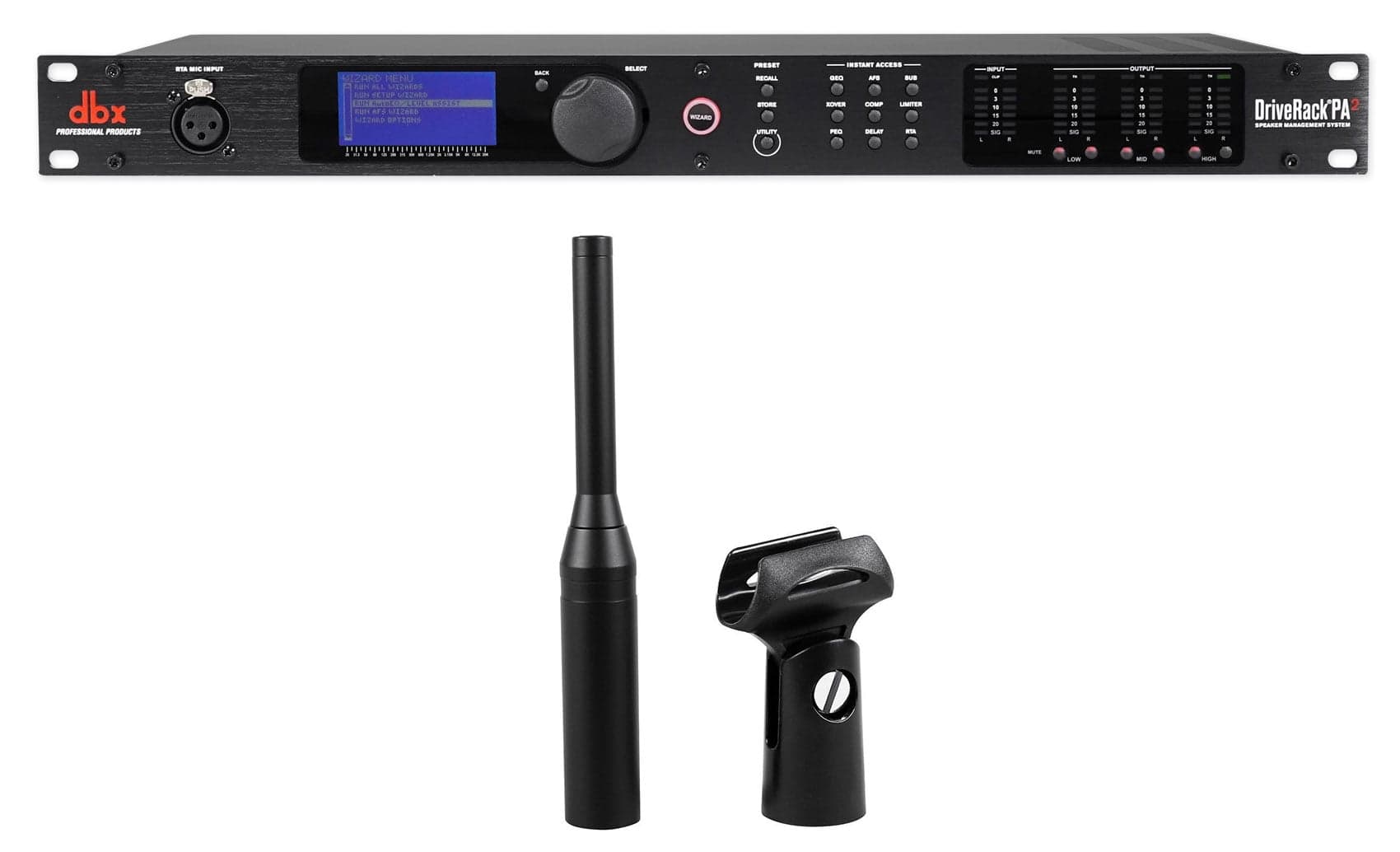

Package Includes: (1) DBX DriveRack PA2 Complete Sound Signal Processor Speaker Management System PA 2. (1) DBX RTA-M Omni Condenser Acoustic Measurement Microphone Mic DRIVERACK PA+ 260. Overview: The DBX DriveRack PA2 is a full-featured speaker management and room-correction processor designed for live sound and installed systems. Key capabilities include an all-new Setup Wizard, streamlined AutoEQ, Advanced Feedback Suppression (AFS), and mobile control compatibility for Android, iOS, Mac, and Windows. It also provides dbx compression and limiting, Sub-Harmonic Synthesis, flexible crossovers for full-range, 2-way, and 3-way systems, plus driver alignment delay control. EQ and Dynamics: Graphic EQ and an 8-Band Parametric EQ are available on the input (the 8-band EQ is adjusted when using AutoEQ). The outputs feature 8-Band Parametric EQs intended for speaker tuning. The unit includes dbx Compression and dbx Limiting for dynamic control. Inputs and Mic: Input configuration: (2) Line Inputs and (1) RTA Mic Input. Input Connectors: (2) Female XLR Line Inputs and (1) Female XLR RTA Mic Input. Input Type: Electronically Balanced, RF Filtered. Input Impedance: > 50 kOhm. Mic Preamp and A/D: A/D Converter: dbx Type IV Conversion System. CMRR: > 45 dB. Mic Preamp Phantom Power: +15VDC (RTA). Mic Preamp Equivalent Input Noise (EIN): < -117dB, 22Hz-22kHz, 150 ohm (RTA). Outputs and Performance: Output: (6) Line Outputs. Output Connectors: Male XLR. Output Type: Electronically Balanced, RF Filtered. Output Impedance: 120 Ohms. Max Output: 20 dBu. Dynamic Range: A/D Dynamic Range: 112 dB A-Weighted, 110 dB Un-Weighted. Type IV Dynamic Range: 123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, un-weighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW.
