DFITO 8CH 1080P Security Camera System — 8 x 2MP Full HD Outdoor Cameras, Night Vision & Motion Detection, Free App

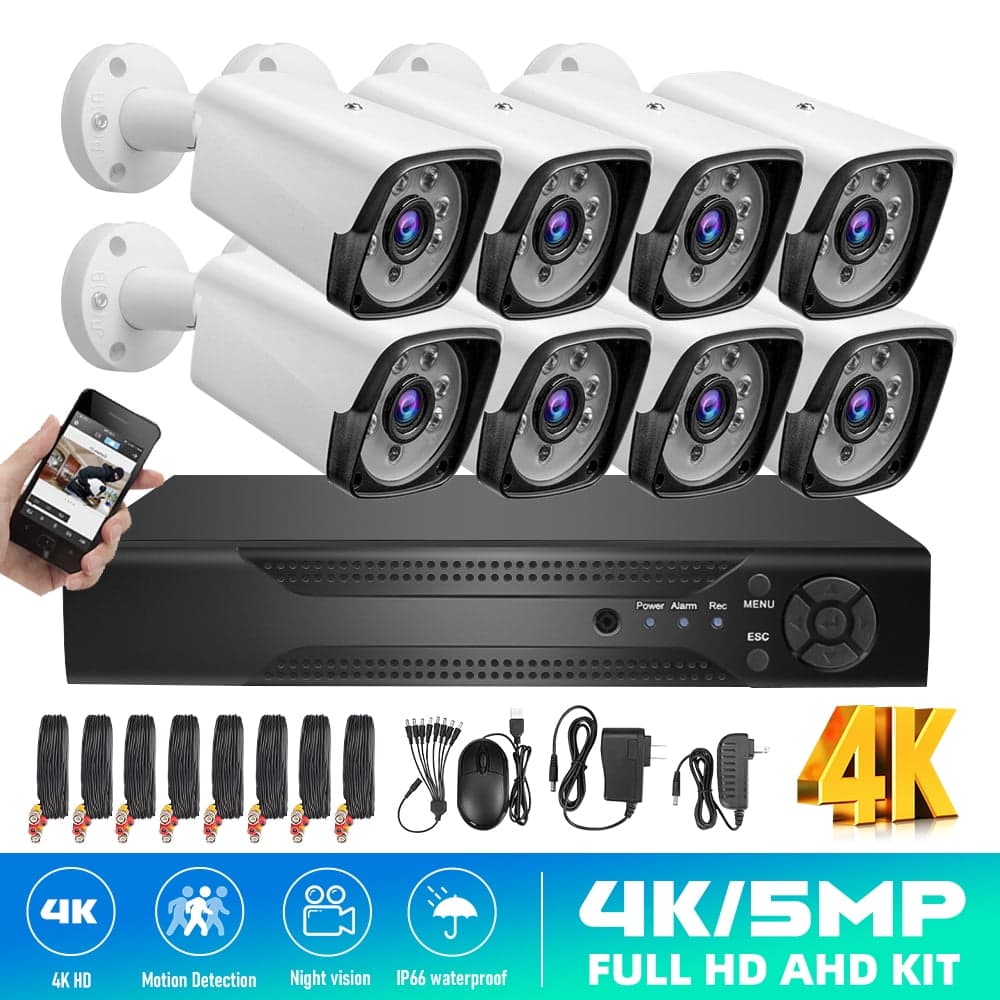

Package contents: 8CH Mini DVR *1, Outdoor IP Camera *8, plus all required power supplies, screws and a user manual. This 8-channel system supports multiple analog formats: XVI/AHD/TVI/CVI/CVBS. Effective pixels: PAL/NTSC: 1920 * 1080. Image sensitivity: Color: 0.1Lux @ (F1.2, AGC ON), 0Lux with IR; Black and white: 0.01Lux @ (F1.2, AGC ON), 0Lux with IR. A single photosensitive resistor port (1 photosensitive resistor interface) is provided, supporting linkage between photosensitive resistor input signals and the image; features IR-CUT and infrared illumination. Optical and exposure specs: Shutter range is 1/50 (1/60) seconds to 1/10000 seconds. Day/night operation supports IR-CUT mechanical switching. Lens parameters: C/CS interface with optional M12 lens. Video output runs at 1080P@25fps. Power and environment: Power supply requirement is DC12V ± 10%. Operational temperature range: -10 ℃~60 ℃ with humidity below 90% (no condensation). Camera size: 32mm * 32mm single board (compatible with 38 positioning holes). Display, recording and playback: Screen display supports 1/8 screen (example shown for coaxial input mode; depends on channel mode). Monitoring quality via VGA (up to 1080P) and HDMI (up to 1080P). Mobile detection: up to 192 detection areas (192 (16 * 2) detection areas can be set per screen). Recording methods include manual, alarm, dynamic detection and timed. Local playback: 2/4 channels. Video query options: time point retrieval, calendar retrieval, event retrieval and channel retrieval. I/O, control and compatibility: Video input interface: 8-way BNC. Video output interfaces: 1 channel VGA and 1 channel HDMI. Pan/tilt control: supports multiple pan tilt protocols. USB: 2 USB interfaces. Attention: Standard coaxial control is used, with support for coaxial upgrade; signal switching can be done via tail wire short circuit or OSD menu.
