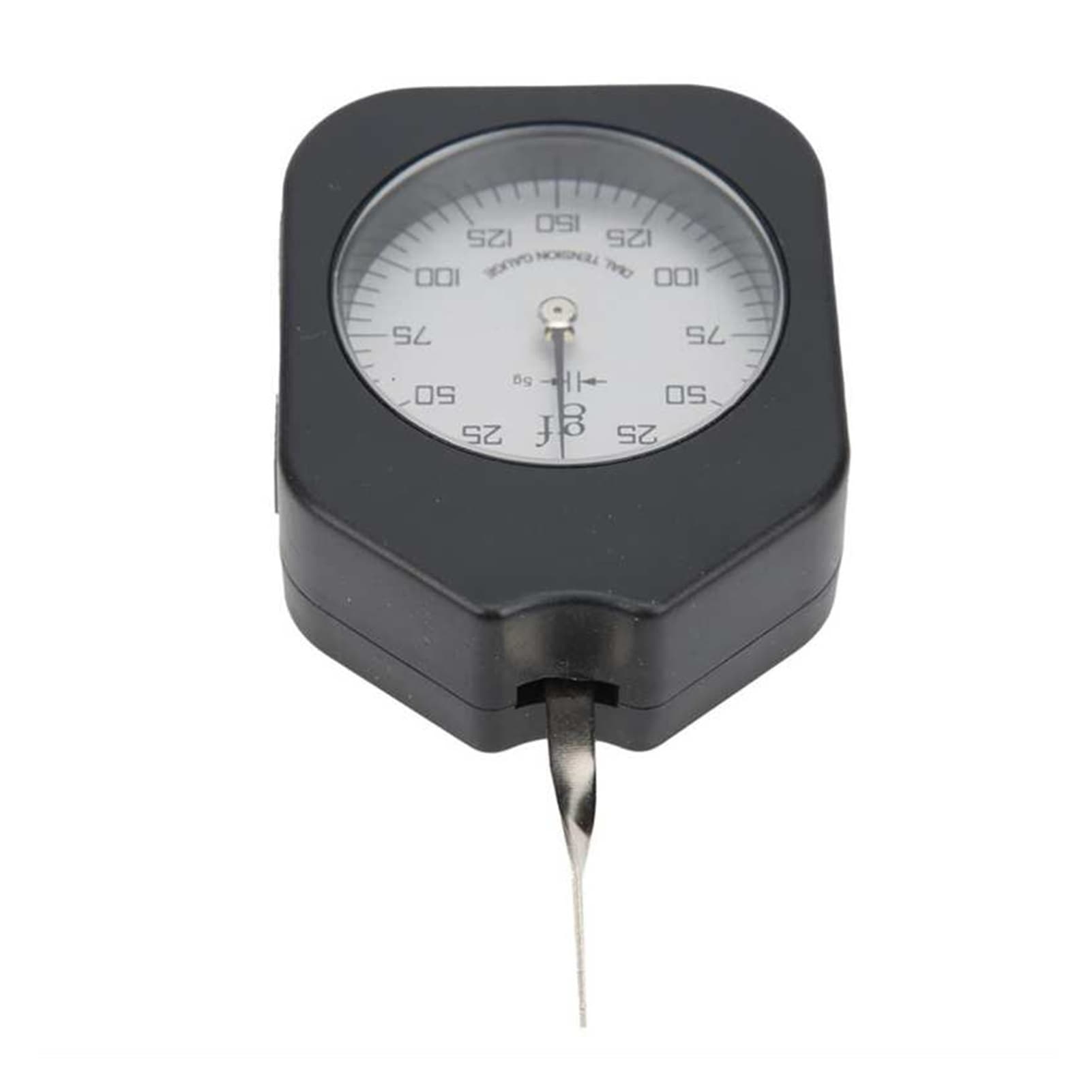

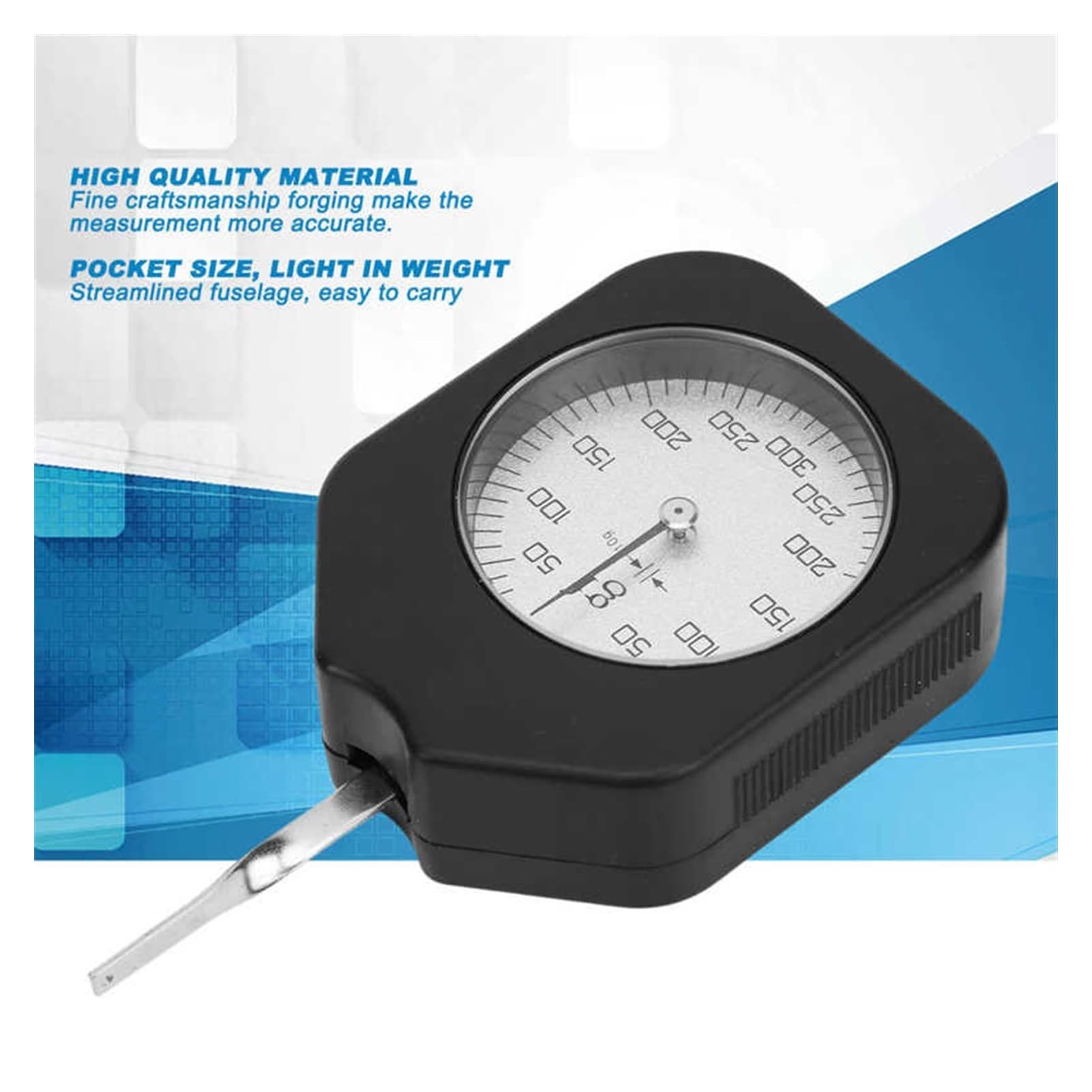

Dial Tension Gauge Tension Meter Single Needle Switch Dynamometer 100g/150g/300g for Measuring Force Measuring Tools -------- ,Accurate & Efficient Force Measurement

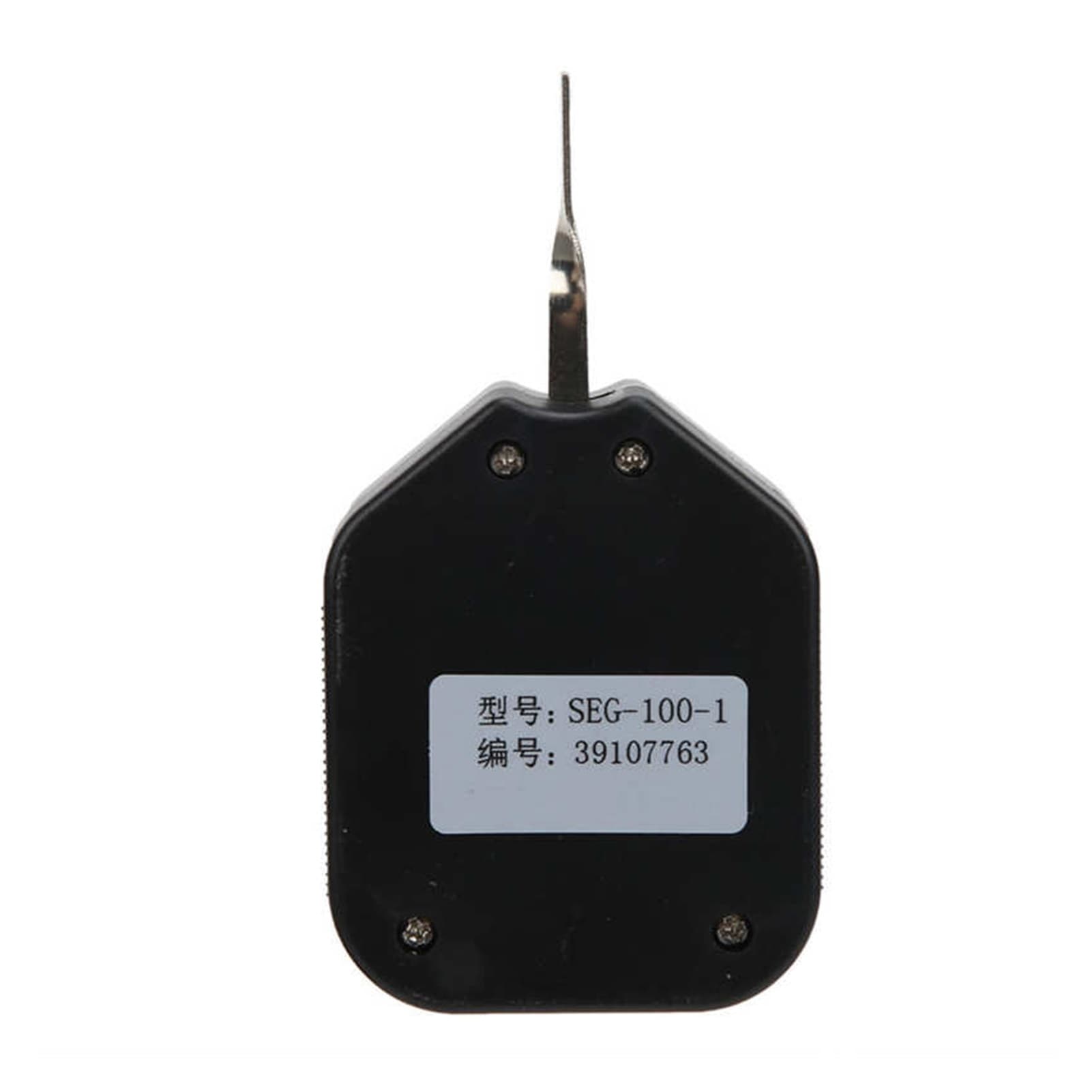

Specification: Item Type: Tensiometer Material: ABS+Alloy Model Specification: SEG-100-1 Pointer: Single Needle Measurement Value: 100g Graduation Value: 2g Scale Style: 20-100-20 Accuracy: ±0.5 Product Use: Tensiometer (in grams) is suitable for mechanical pressure such as relay contact pressure, electronic switch, micro switch, valve, tension, dial measuring instrument spindle pressure, automatic telephone equipment contact and armature pressure, tape recorder buffer Device pressure and other contact point pressure, and other precise pressure and tensile tests. How to use: When testing, just pull the object to be tested with the stylus to move it from the static state to the required position. The tensiometer can be tested either clockwise or counterclockwise, but the stylus arm must always be perpendicular to the direction of the push-pull force; tension meter is divided into single and double needles. The single-needle tensiometer measures and reads immediately. After the double-needle tensiometer measures the highest value, the slave needle stops moving, which is convenient for the tester to read the test value. Package List: 1 x Tensiometer Note: 1. Do not drop the product randomly, 2. Do not bend the measuring alloy probe, 3. When the product cannot be calibrated, you can open the back cover for calibration. It is not recommended to open the back cover for calibration frequently. Related Products: dynamometer,force gauge,digital force gauge,force gauge push pull gauge,digital push-pull force gauge,tension meter,digital tension wire,digital dynamometer,elevator rope tension tester,textile tension meter,trigger pull gauge,grip strength trainer
