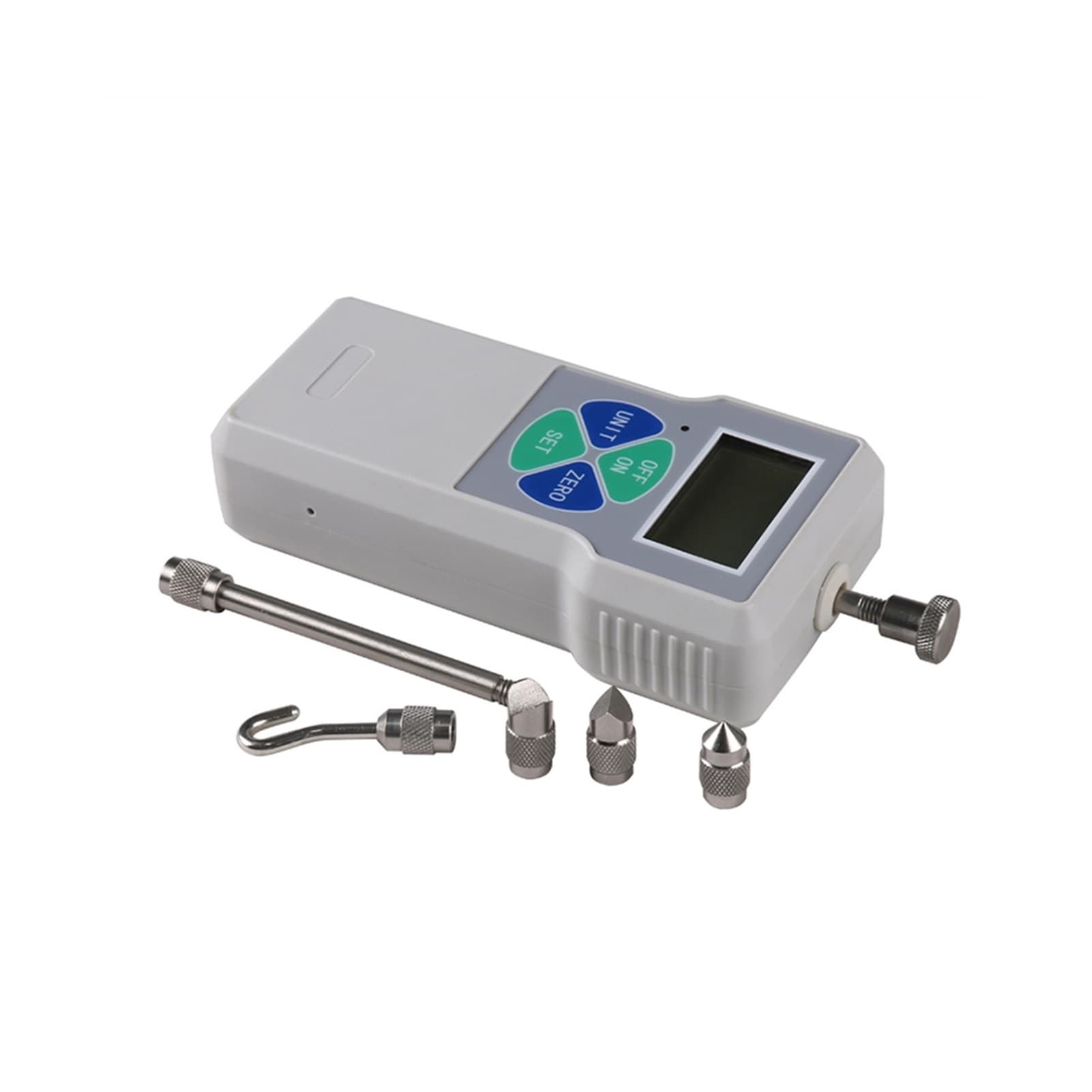

Digital Dynamometer Force Measuring Instruments Thrust Tester Digital Push Pull Force Gauge Tester Meter -------- ,Accurate & Efficient Force Measurement

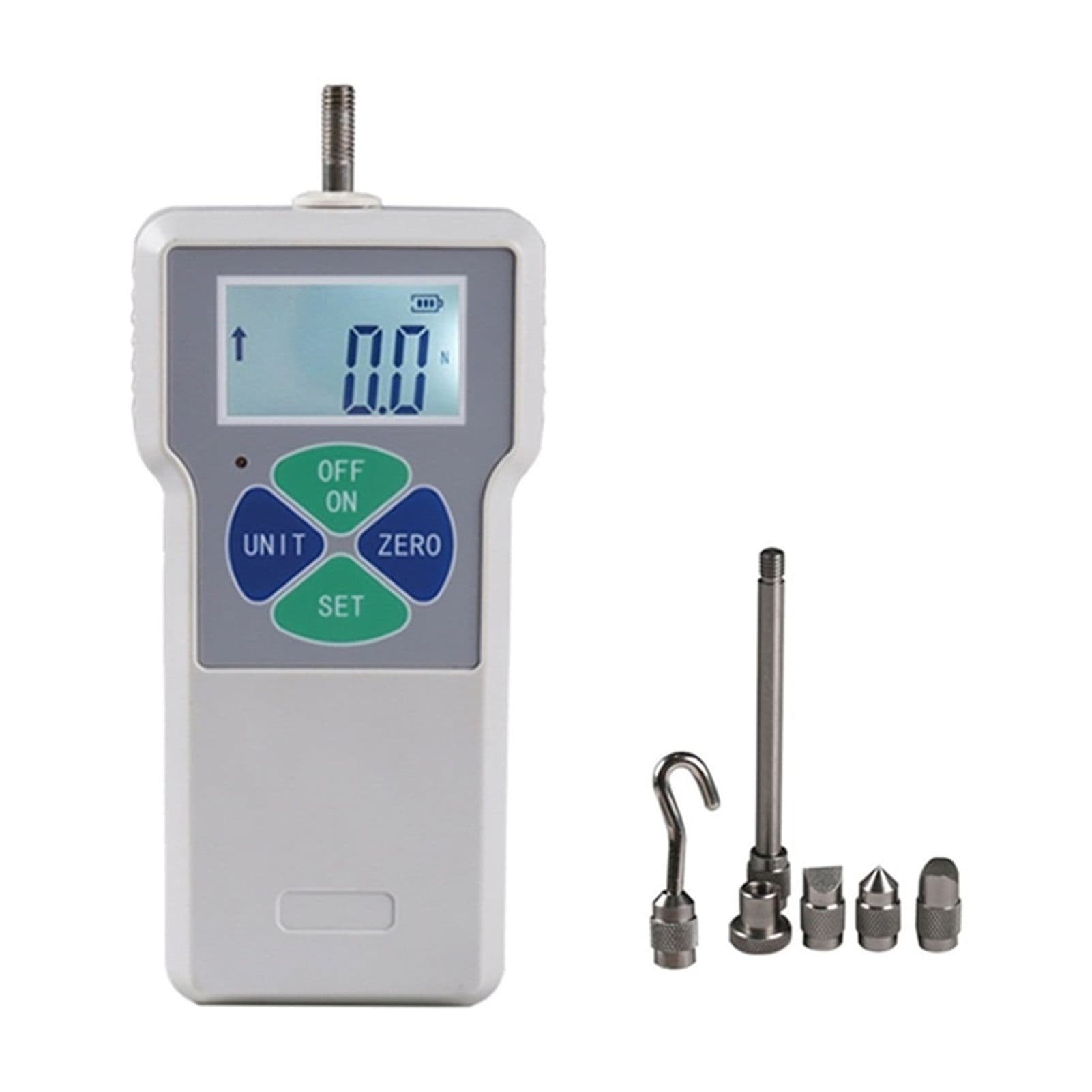

Product Description: This product is a simple push pull force gauge with high performance. Screen display 1.Peak mode: After turn on,enter into the measuring interface,click "SET" button can enter into the peak mode directly,record the Max. force value during measuring. 2.Push pull force shows:do not move the gauge,the above arrow shows the pull force,the below arrow shows the push force. 3.Measuring force value display. 4.Three units:N(newton),kg(kilogram),lb(pound) display respectively ,press "UNIT" button to switch . 5.Power display. The key introduction OFF/ON(start up ,shut down key):when press this key,turn on the power,appear measuring interface.Press this key again can shut down gauge. ZERO(zero key)The testing value on the screen can be zero when click this key. UNIT( switch unit key)It can switch three different unit s when click this key. ELK Series Analog Dynamometer Parameter: Mode ELK-2 ELK-3 ELK-5 ELK-10 ELK-20 ELK-30 ELK-50 ELK-100 ELK-200 ELK-300 ELK-500 The Max Load Value 2N 3N 5N 10N 20N 30N 50N 100N 200N 300N 500N 0.2kg 0.3kg 0.5kg 1kg 2kg 3kg 5kg 10kg 20kg 30kg 50kg 0.45Lb 0.65Lb 1.1Lb 2.2Lb 4.5Lb 6.5Lb 11Lb 22Lb 45Lb 65Lb 110Lb Load Value Resolution 0.001N 0.01N 0.1N 0.001KG 0.001KG 0.01KG 0.001Lb 0.001Lb 0.01Lb The sensor Built-in Sensor Precision ±0.5% Power 3.7V lithium battery Charging Time 4-6 hours Continuous Usage Time About 15 hours Battery Life 300 times Charger Input AC 100-240V 50-60Hz Output: 5V 1000mA Working Temp. 5-35 centi-degree Transportation Temp. -10-60 centi-degree Relative Humidity 15%-80%RH Work Environment No focus, Non-corrosive in surrounding Related Products: dynamometer,force gauge,digital force gauge,force gauge push pull gauge,digital push-pull force gauge,tension meter,digital tension wire,digital dynamometer,elevator rope tension tester,textile tension meter,trigger pull gauge,grip strength trainer
