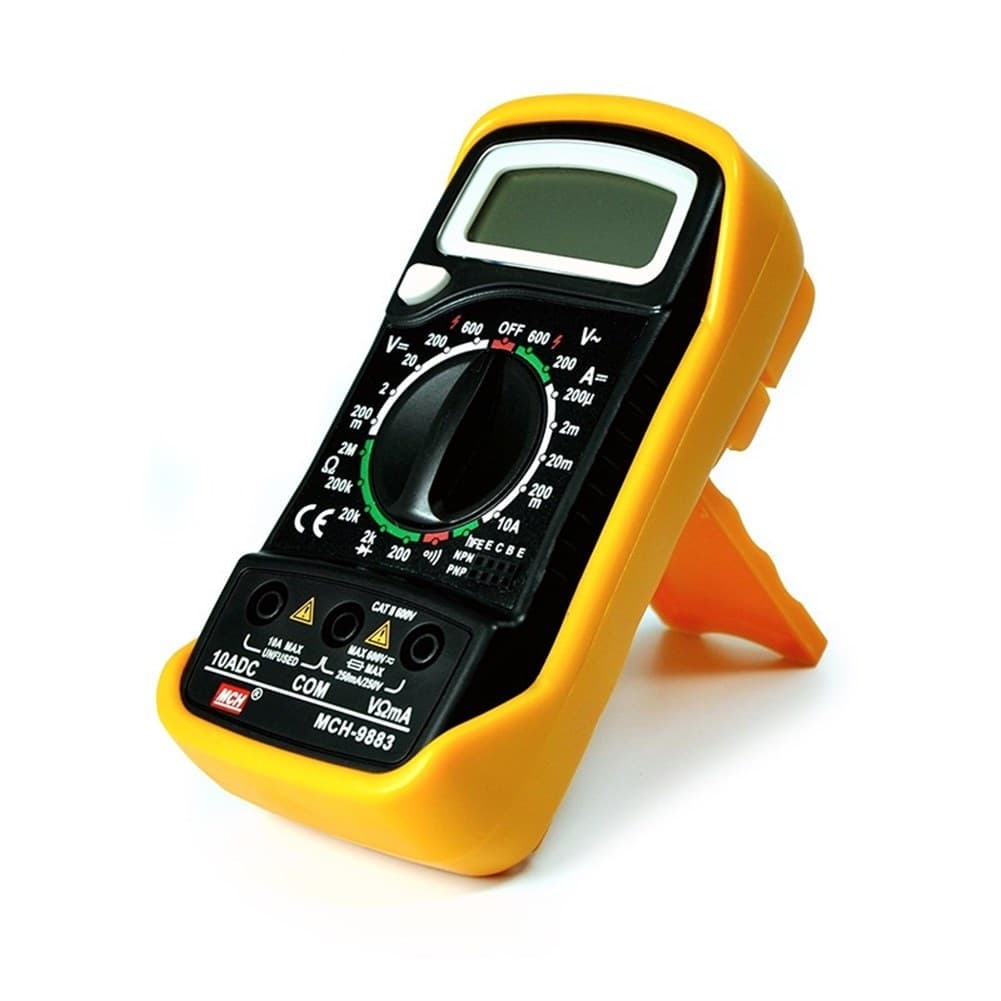

Digital Multimeter Pen Pocket Mini Digital Display Household Electrician Anti-burning Multimeter MCH-9883

Model: MCH-9883 Style: Handheld multimeter Uses: for students Certification and standards: cE Measurement function: DC current, AC current, DC voltage, AC voltage, capacitance, resistance, temperature On-off buzzer: yes Diode test: yes Data retention: yes Auto power off: yes DC voltage range: 200mV / 2V / 20V / 200V AC voltage range: 200V / 600V DC process: 200uA / 2mA / 20mA AC current range: CE CAT.II600V ROHS Dimensions: 138mm * 69mm * 31mm Instructions for use 1.Test if the multimeter is normal. The black test pen is inserted in the COM hole, the red test pen is inserted in the VΩ hole, the test pen is docked, and the buzzer state is entered. The value of 001 can indicate that the multimeter is normal, and the on/off of the main board can be tested. 2.The black test leads are fixed to the COM jack regardless of the function. 3.Measure the voltage. When measuring DC voltage, the battery voltage value is higher than the standard value of the product. This is the battery characteristic. When the voltage to be measured is not known, the maximum range is used to measure, and then the corresponding range is selected according to the measured value. Gear position. 4.Do not carry points for range switching. The range switching of current and voltage should not be carried out under the condition of being charged, especially in the case of large voltage and large current, so as not to burn out the changeover switch. Packing list Host x1, test pen x1, certificate x1, manual x1 Use / application area The 9883 series handheld digital multimeter is a cost-effective handheld 3 1/2 digit manual range digital multimeter with complete functions, stable performance, novel structure, safety and reliability. Can be used in home, school, smelting, communication, manufacturing, petroleum, defense, power, chemical and other fields, suitable for measuring DC voltage / AC, resistance, capacitance, frequency, temperature, diode forward voltage reduction, crystal transistor parameters, etc. Circuit, ideal tool for maintenance and repair of electrical equipment.
