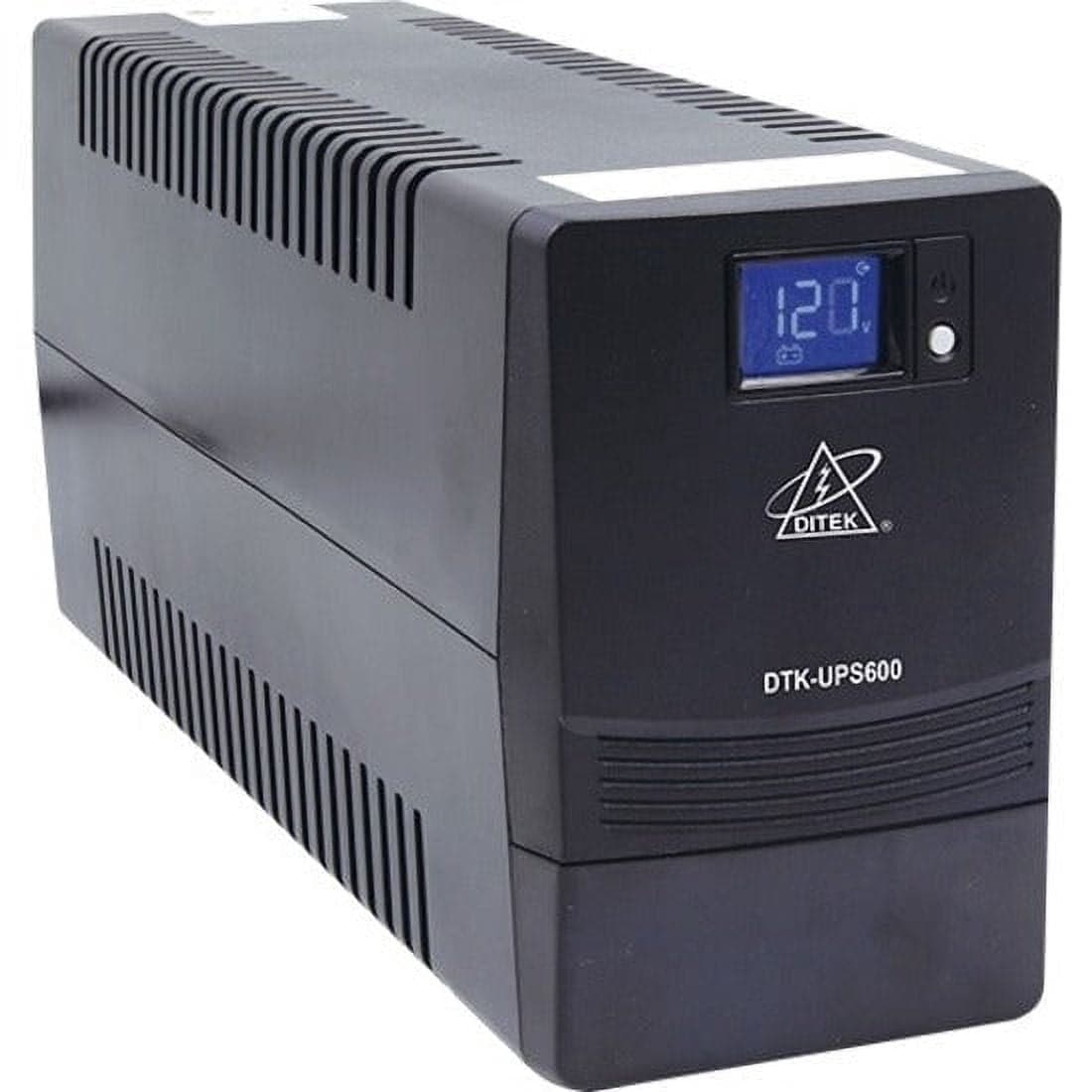

DITEK DTK-UPS 600VA Tower Line-Interactive UPS — 360W, 120V, Simulated Sine Wave

Overview: The DITEK DTK-UPS 600VA tower UPS (Manufacturer Part Number: DTK-UPS600) provides line-interactive power protection for equipment such as multiplexers, phones, DVRs, computers, POS terminals, workstations and general office or home electronics. It delivers 600 VA (360 W) of capacity with automatic voltage regulation (AVR) and a simulated sine wave output. Electrical and performance specs: Input voltage is 120 V AC with an input range of 81 V AC - 145 V AC and an input frequency of 60 Hz. Output is available at 120 V AC and 110 V AC with an output frequency of 60 Hz. Transfer time is 6 ms. The unit supports a DC system voltage of 12 V DC and includes AVR. Load capacity: 600 VA / 360 W. Receptacle detail: 6 outlets. Battery and charging: Uses a single 12V battery (Number of Batteries: 1) with a capacity of 7000 mAh. Typical battery recharge time is 4 Hour. USB (HID compliant) port is included for connectivity. Protection, indicators and alarms: Overload protection is built in. Dataline protection is provided via RJ-45. Alarms include Fault, Overload, Low Battery and Battery Mode. Status is shown on a touch screen display. Waveform type: Simulated Sine Wave. Environmental and physical: Weight (Approximate): 9.70 lb. Height: 5.6, Width: 4, Depth: 11.8. Maximum operating temperature: 104-degreeF (40-degreeC). Storage relative humidity: 0% - 90%. Form factor: Tower. Product Family/Series: DTK-UPS / DTK-UPS. Brand/Manufacturer: DITEK / DITEK Corporation. Additional details: Output wattage 360 W, DC system voltage 12 V DC, USB (HID Compliant) Port: Yes, Transfer Time: 6 ms. Mounting / enclosure and electrical hardware details: Ring type 8 inch W x 4-5/8 inch D x 15 inch H size. Wire size: 6 Awg to 250 MCM (line/load), 6 Awg to 350 MCM (neutral). UL 414 Approval. 600 V Voltage rating. Surface Mounting with Nema 3R enclosure. 200 Ampere current rating. 1-Phase 3-wire circuit configuration for overhead service type. 2 inch aw hub type. Knockouts: (1) 1/2 inch, (4) (1 inch-1-1/4 inch-1-1/2 inch-2 inch) concentric knockout knockout(s). 4 jaw(s). No bypass switch. Finish: ansi 61 gray acrylic electrocoated. Includes aluminum snap type ring. Applicable standard: ansi c12.7.
