Dro Digital Readout 3 Axis 5um Linear Scale for Bridgeport Mill Lathe Machine

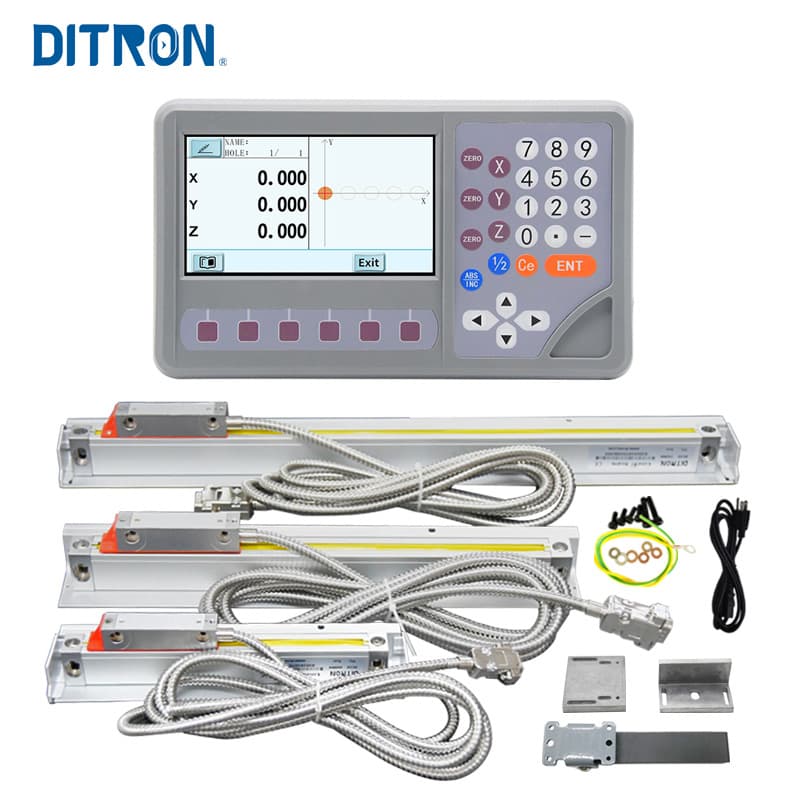

This system includes a 3-axis digital readout. It is designed for use with mill and lathe machines. The package contains one 3-axis LCD digital readout unit. Three DC10 0.005mm linear scales are included. Each linear scale comes with protective covers, a mounting bracket, and a screw bag. Linear scale travel lengths are available from 50mm up to 1000mm. The linear scales offer a resolution of 5 micrometers. The output signal for the linear scales is 5VTTL. Linear scales have a cross-section of 20.5 by 31mm. Accuracy of the linear scales is ±5 micrometers or ±10 micrometers per meter. The linear scales operate within a temperature range of -10°C to 60°C. Sealing protection for the linear scales is rated at IP55. The maximum moving speed for the linear scales is 60 meters per minute. Reference points on the linear scales are set every 50mm. The linear scales feature a 45-degree vertical five-bearing sliding system for smooth and precise movement. Accuracy of the linear scales is guaranteed by laser interferometer calibration. A full sealing structure makes the linear scales resistant to swarf and coolant. The digital readout features a 7-inch true color LCD screen for clear viewing. A drawing saving function allows users to store drawings within the system for enhanced convenience. The system includes a special drawing preview function to visualize the machined effect after parameter setup. During machining, the system displays the tool's current position based on the drawing for simplified operation. A built-in help function is available to assist users with any questions during machining.
