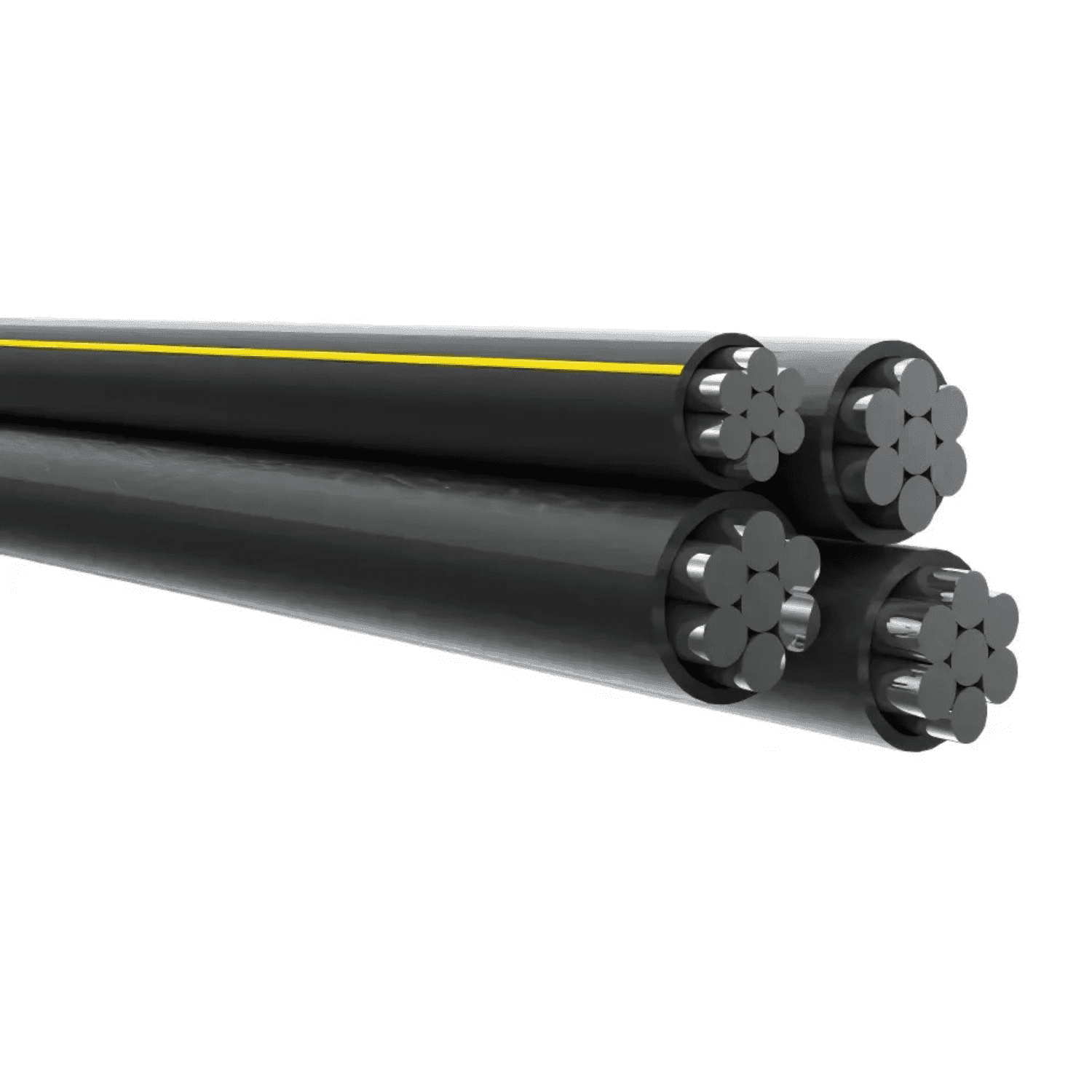

Dyke 650' Aluminum URD Quadruplex Secondary Distribution Cable — 2-2-2-4

Configuration: 2-2-2-4 quadruplex URD secondary distribution cable, 650' length. Conductors: Phase conductor size 2 AWG with 7-strand construction; neutral conductor size 4 AWG. Insulation: 60 mils thickness. Physical dimensions: single-phase conductor diameter 0.403 inches; overall O.D. 0.973 inches. Weight: 367 lbs per 1000ft. Ampacity: 155 Amps for direct burial; 115 Amps when installed in duct.
