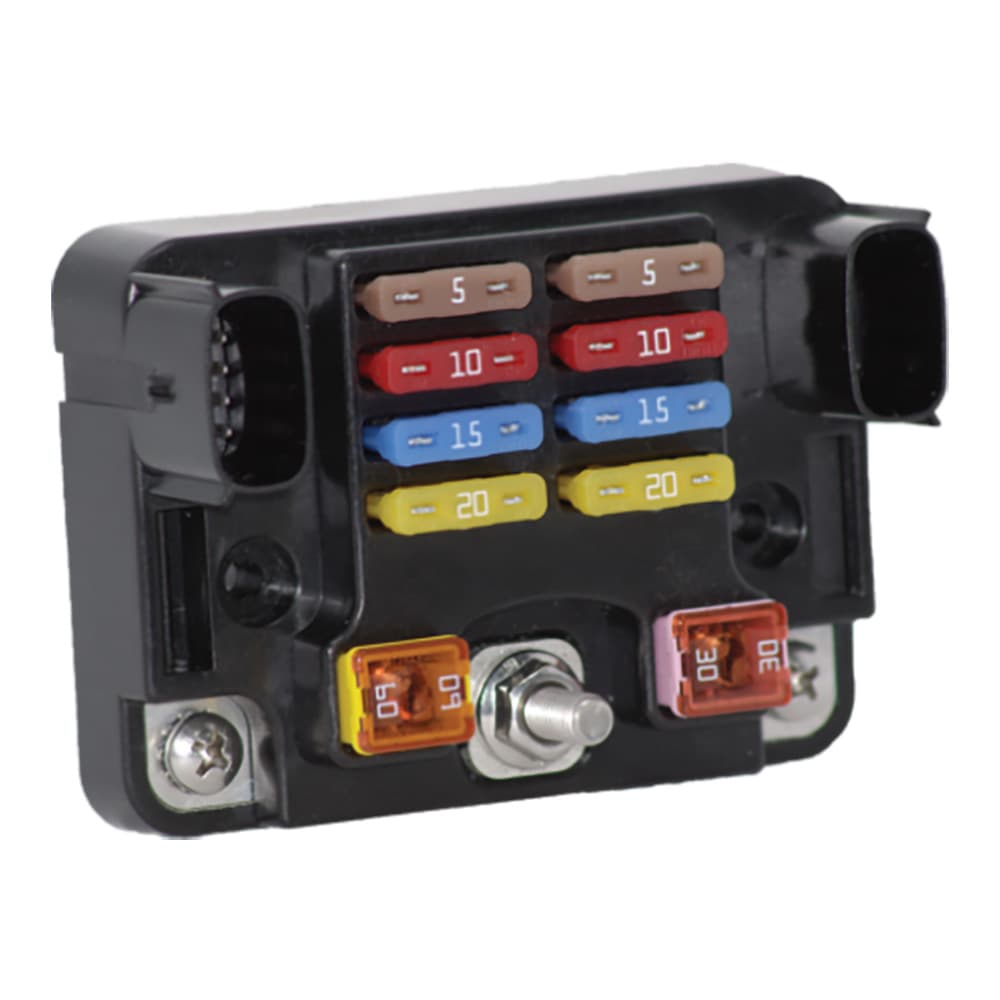

Egis 8 + 2 Fuse Block [5015]

8 + 2 Fuse BlockApplications:Compact Solution Combines Low Amp and High Amp Fuse Protection in One Product. Reduce Install Space and Total Installed Time/Cost, Two MX-150 Connectors for Low-Amp Outputs Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One ProductFeatures:Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product Protects Add-On Circuits from accidental short circuits to frame ground or battery negative, or from overload events. 4 Year Industry Leading WarrantySpecifications: Total Continuous Current (AMPS): 200 AMPS Max Current Per ATO Fuse (AMPS): 22 AMPS Voltage Range (V DC): 8-36V DC Max Current Per LP J Case Fuse (AMPS): 50 AMPS Max Current Per 4 Pos MX-150 (AMPS): 50 AMPS Max Wire Gauge, MX-150 Connector: 14 AWG Specifications: Box Dimensions: 3"H x 3"W x 5"L WT: 0.5 lbs UPC: 850035199541Quick Guide (pdf)
