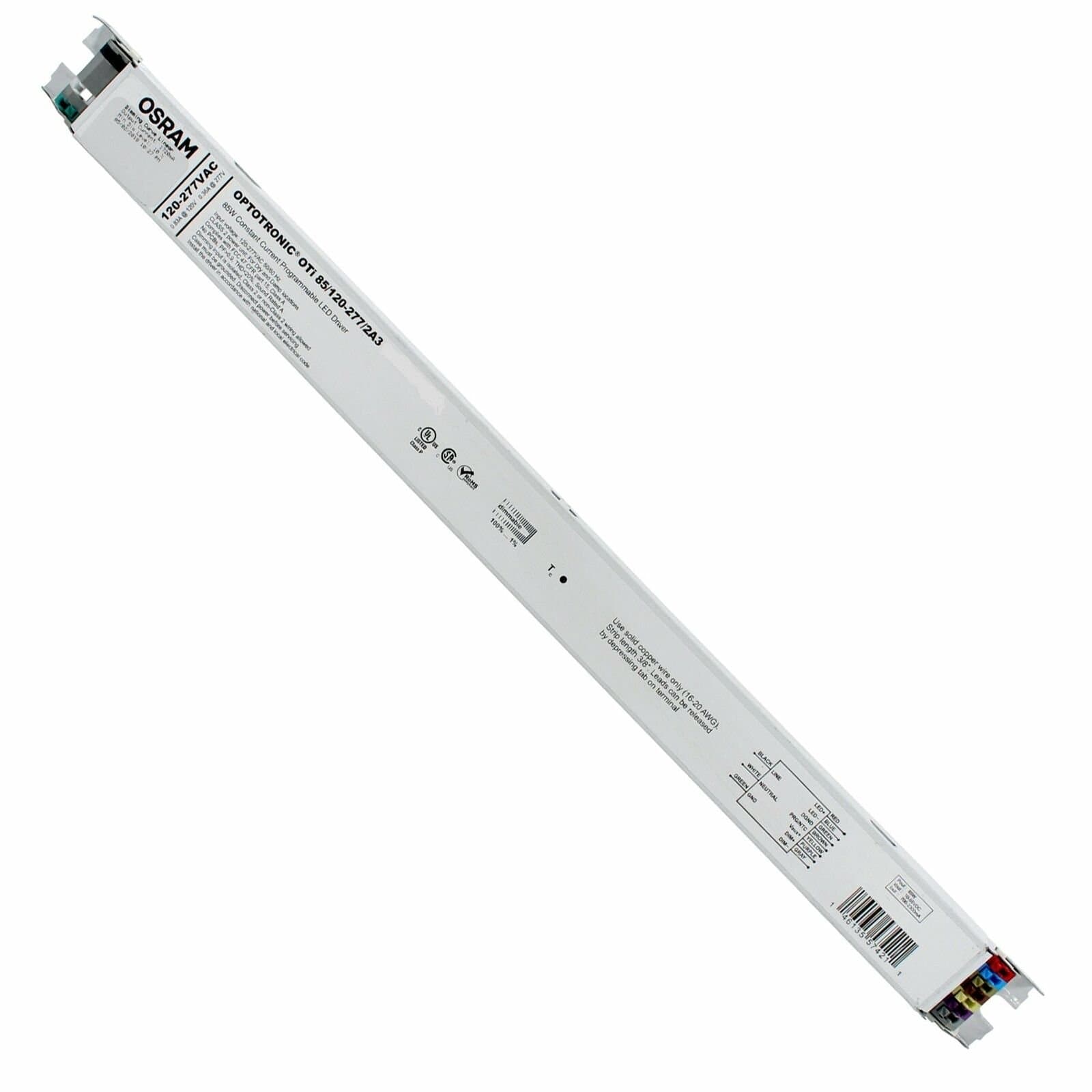

eldoLED OTi85/120-277/2A3 DIM L HB LED Driver with Surge Protection - 85W, 120/277V, 2743A1T 57426

Synchronize ON/OFF Timing and Dimming Controls: This feature meets efficacy requirements and ensures consistent dimming levels across multiple luminaires and individual luminaires that require multiple drivers. True 1% Dimming: Architectural LED drivers support 1% dimming across the entire driver programmable output current range for True 1% dimming. For example, if a driver is programmed to 300mA, then at 1% dimming, output current would be 3mA. DIM-to-OFF: DIM-to-OFF enables luminaires to smoothly transition from DIM-to-OFF and save energy without needing additional control equipment to turn off the fixture. Select architectural-grade LED drivers offer DIM-to-OFF and have a programmable AUX power output option to power and extend DIM-to-OFF capability to fixture-integrated sensors and controls. Dimming Interface Protection: The dimming circuit in an OPTOTRONIC linear driver have protection against AC line voltage 120-277Vac in the event that the driver is mis-wiring during field installation. When a mis-wired driver is powered up, the driver will provide a visual signal that indicates a potential wiring error. Oti85/120-277/2A3/DIM-1L HB 24A1T, 57426
