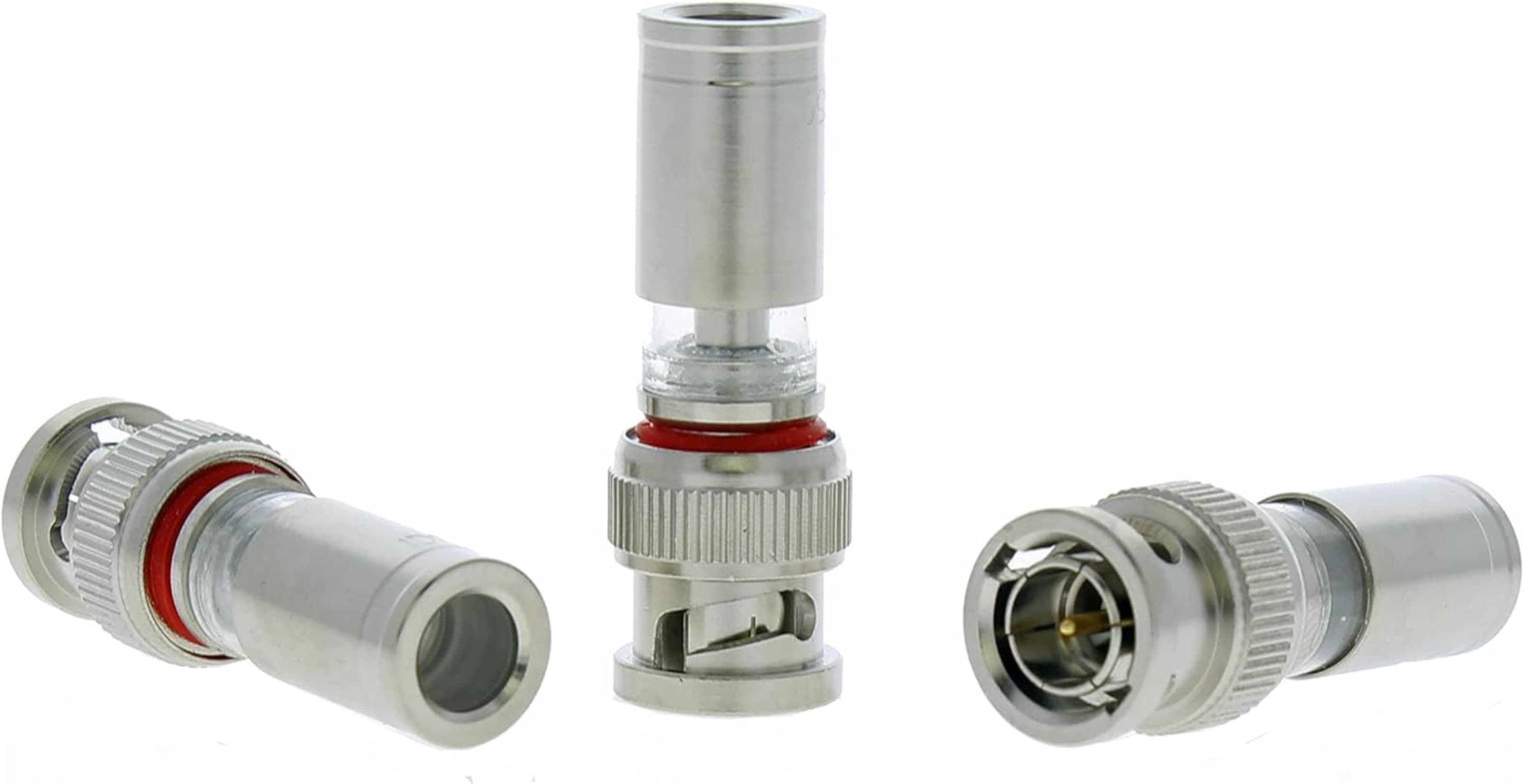

Electrical 89-5047 RG-59 BNC Compression Connectors — 35-Pack Jar

Compact kit of 35 RG-59 BNC compression connectors (jar) engineered for reliable video and instrumentation links. InSITE technology includes a 360° clear inspection window so installers can visually confirm conductor placement before compressing the connector, ensuring a correct connection every time. Construction and contact: These are one-piece connectors built with plastic and nickel-plated brass bodies for superior corrosion resistance. The center contact is a gold-plated fixed pin that accepts 23-18 AWG solid center conductors. Performance and preparation: Optimized for use on 75Ω coaxial cable, these BNC connectors require the standard 1/4 x 1/4 in. cable preparation. Typical uses: Ideal for security systems, CCTV and analog camera installs, and other video or instrumentation applications. Specifications: Package includes [35] RG-59 BNC Compression Connectors. Compatible with cables having a dielectric diameter of .142 - .148 in. and an outer jacket diameter of .230 - .250 in.
