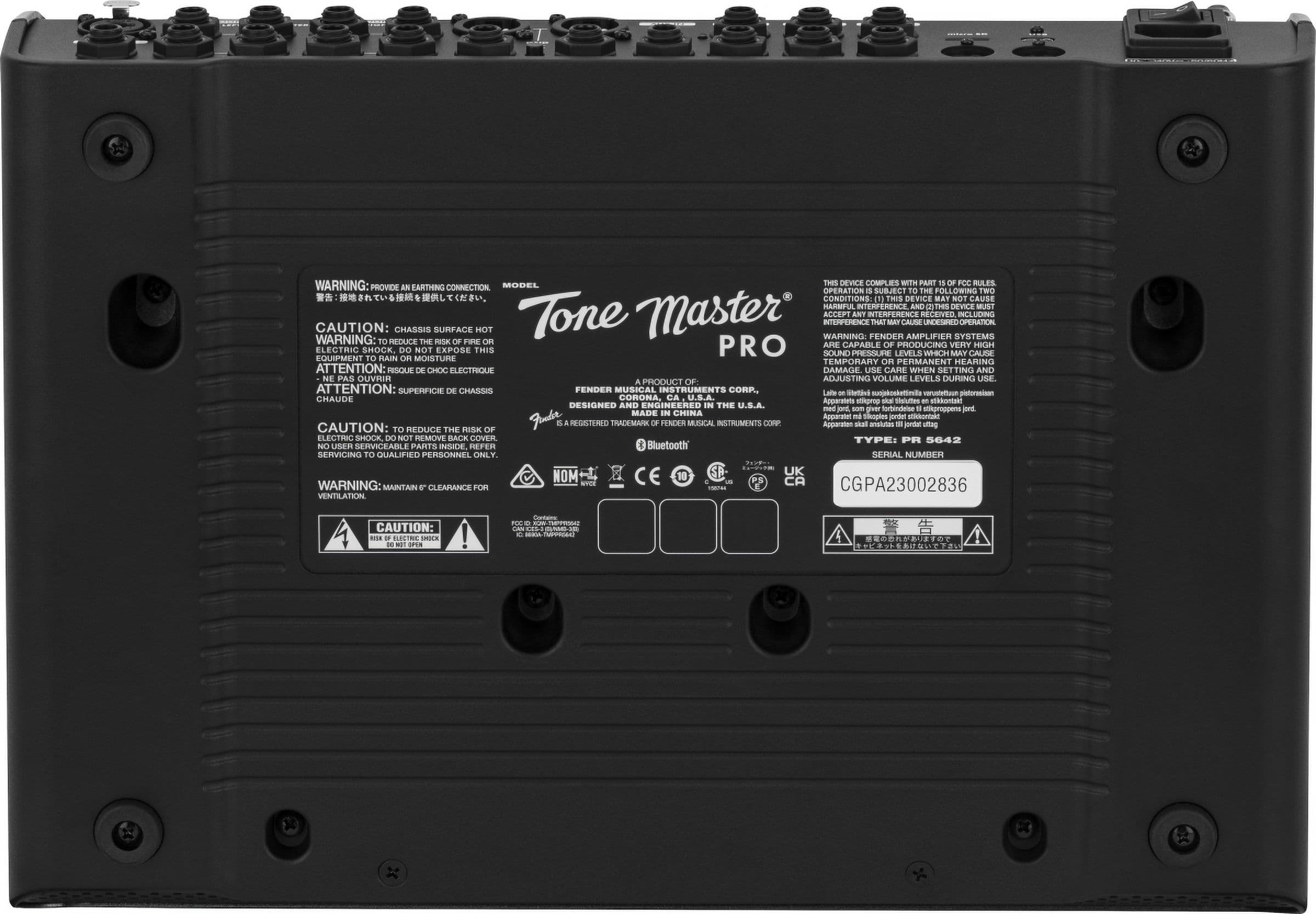

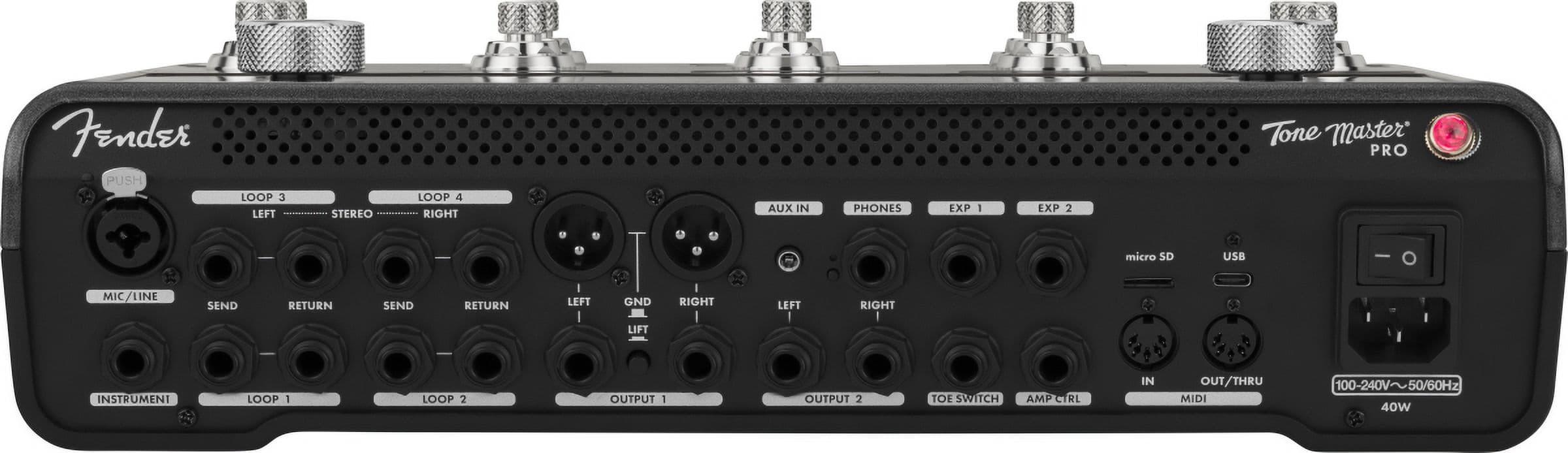

Fender Tone Master Pro Multi-Effects Guitar Workstation

Over 100 Tone Master quality Amp and Effect Models Over 6000 Fender-captured impulse responses with a variety of cabinet and microphone options 7-inch Color Touch-screen 60-second Stereo Looper 4 Effects Loops for integrating your favorite pedals, 10 proprietary footswitch/encoders with LCD "scribble strips" Controls: Navigation control, master volume control, 10 footswitch/encoders with LCD Scribble Strips Connectivity: USB-C, Bluetooth MIDI: Dual 5-Pin DIN (in/out-through-merge) Power Requirements: 40W input-voltage Range: 100-220 VAC, 50/60Hz Microphone Input: XLR Female (Combo), Balanced Impedance: 1.8 k Balanced Preamp Maximum Input Level: 4.7V Phantom Power: +48 VDC (XLR Only) Instrument Input: 1/4 Impedance: 1 M, 330 k, 22 k configurable unbalanced Maximum Level: 5.6V (2.8V with input pad off) Line Input: 1/4 TRS Female (Combo), balanced Maximum Level: 7.8V balanced, 4.5V unbalanced Impedance: 1M Aux Input: 3.5 mm Stereo Impedance: 10k Max Input Level: 2.4V XLR and Line Outputs: XLR: XLR Male, Balanced (Stereo Pair) Line Outputs: 1/4 TRS Female, Balanced (Stereo Pairs Output 1 and 2) Output Max Level: Output 1 - 12V (Line) 3.9V (Instrument), Balanced. 6.1V (Line) 2.8V (Instrument), Unbalanced. Output 2 - 4.7V (Line) 2.8V (Instrument). Output Impedance: Output 1 - 200 (Line) 290 Balanced, 400 Unbalanced (Instrument). Output 2 - 170 Headphone Output: 1/4 TRS Stereo, Unbalanced. Maximum Output: 110m W x 2 Impedance Working Range: 33 x2 (16 x2 Minimum) Digital Audio Bit Depth: 32 Bit Supported Sample Rates: 48 k Hz Internal (Project Sync 44.1/48/88.2/96 kHz) Digital Audio Frequency Response: 20 Hz - 20 k Hz (+0.1/-0.7 dB) Effect Loop: 4 Total - Mono Loops (1 and 2) 1/4 Unbalanced, Mono Loops (3 and amp; 4) 1/4 TRS Balanced (Can Be Combined into Stereo Pair) Impedance: 10k Other Connections: 1/4 Expression Pedal 1 and 2, Amp Control Power Cable: IEC Dimensions: 3.8 (96.4 mm) H x 14.6 (37.1 cm) W x 10.3 (26.16 cm) D Weight: 8.8 lbs (4 kg)
