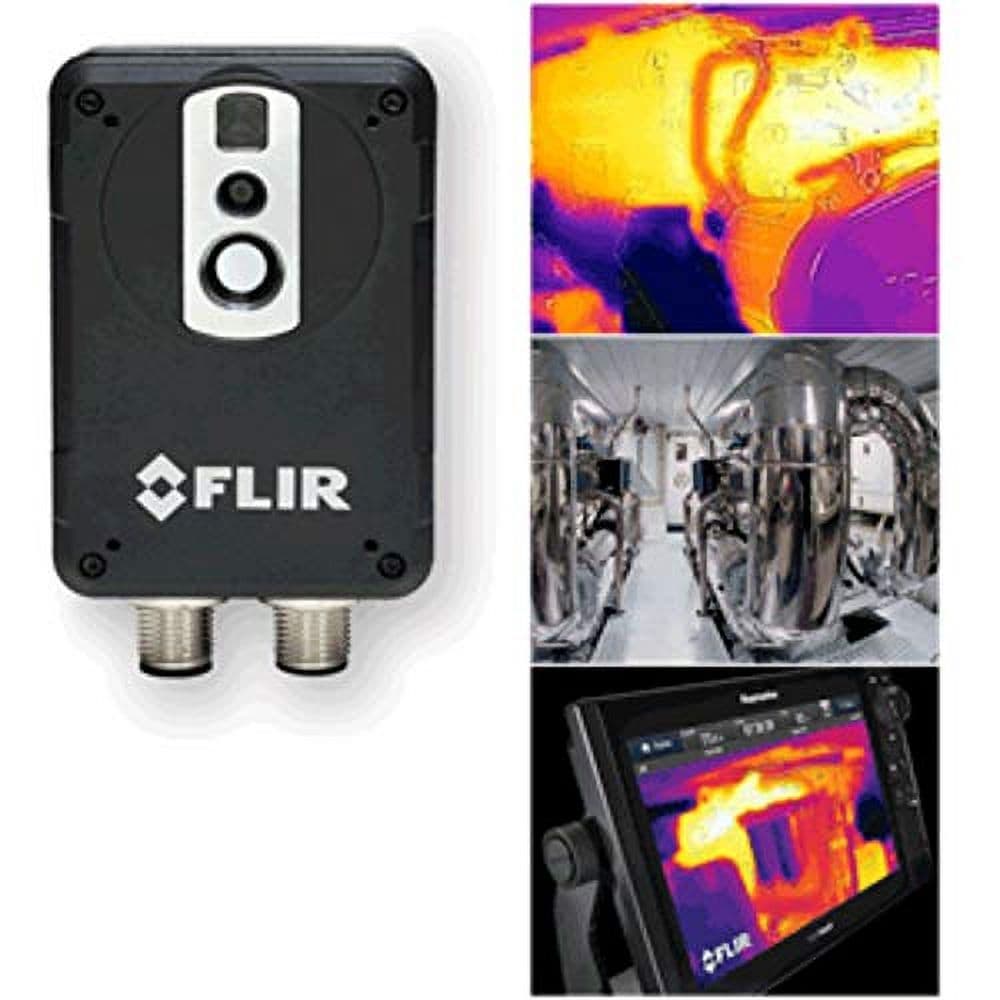

FLIR AX8 Thermal Monitoring Camera E70321

FLIR AX8 Thermal Monitoring Camera Model: E70321 UPC: 723193799109 class="wtul"> State-of-the-art thermal monitoring of engines and onboard machinery Powered by Lepton, FLIR’s most advanced micro thermal camera Exclusive Multi-Spectral Dynamic Imaging (MSX®) for easy-to-understand thermal imagery. Stream live thermal video of exhaust manifolds, propeller shafts, electrical panels, and other machinery Program specific areas to generate automated spot alarms when temperatures exceed pre-set thresholds Evaluate ongoing temperature trends Help avoid costly repairs and unwanted breakdowns View thermal, visible, and MSX video imagery on Raymarine LightHouse II™ MFDs Continuous thermal monitoring with audible and visual alarms across the Raymarine network Connect up to eight AX8 cameras using Ethernet View and record thermal video and snapshots from any Raymarine display on the network Easy setup and alarm programming with a PC and web browser Gain an entirely new view of your vessel’s mechanical system with the new FLIR AX8 thermal monitoring camera. Combining thermal and visible cameras in a small, affordable package, the AX8 integrates with Raymarine multifunction displays (MFDs) and sends audible and visual alerts when the temperature of machine parts rise above preset thresholds. Keep a watchful eye on such critical equipment as engines, exhaust manifolds, and shaft bearings and spot problems before they leave you stranded on the water. And FLIR’s exclusive MSX® imaging blends visible and thermal images for more detailed imagery that is easier to understand. Specifications style='border-collapse: collapse' width='95%' border='1'>IMAGING & OPTICAL DATAIR Resolution80x60 pixelsThermal Sensitivity / NETD<0.10°C @ +30°C (+86°F) / 100mKField of View (FOV)48° x 37°FocusFixedDETECTOR DATADetector TypeFocal Plane Array (FPA) Uncooled MicrobolometerSpectral Range7.3-13µmVISUAL CAMERABuilt-in Digtal Camera640x480Digital Camera FOVAdapts to the IR lensSensitivityMinimum 10 Lux without illuminatorMEASUREMENTObject Temperature Range-10°C to +150°C (14°F to 302°F)Accuracy+/-2°C (+/-3.6°F) or +/-2% of reading (+10 to +100C@+10 to +35amb)MEASUREMENT ANALYSISSpotmeter6Area6 Boxes with max. / min. / averageAutomatic Hot / Cold DetectionMax / Min temperature value and position shown within boxMeasurement PresetsYesAtmospheric Transmission CorrectionAutomatic, based on inputs for distance, atmospheric temperature and relative humidityOptics Transmission CorrectionAutomatic, based on signals from internal sensorsEmissivity CorrectionsVariable from 0.01 to 1.0Reflected Apparent Temperature CorrectionAutomatic, based on input of reflected temperatureExternal Optics / Windows CorrectionAutomatic, based on input of optics / window transmission and temperatureMeasurement CorrectionsGlobal Object ParametersALARMAlarm FunctionsAutomatic alarms on any selected measurement function. A maximum of 5 alarms can be setAlarm OutputDigital Out, store image, file sending (ftp), email (smtp), notificationSET-UPColor PalettesColor palettes (BW, BW inv, Iron, Rain)Set-up CommandsData / Time, Temperature °C/°FWeb InterfaceYesSTORAGE OF IMAGESStorage MediaBuilt-in memory for internal storageImage Storage ModeIR, Visual, MSXFile FormatsJpeg + FFFETHERNETEthernetControl, result and imageEthernet Type100 MbpsEthernet StandardIEEE 802.3Ethernet Connector TypeM12 8-pin X-codedEthernet Video StreamingYesEthernet PowerPower over Ehternet, PoE IEEE 802.3as class 0Ethernet ProtocolsEhternet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, SFTP, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour)MARINE ELECTRONICS INTERFACEMultifunction DisplaysNetwork compatible with Raymarine LightHouse II multifunction displaysIMAGE STREAMINGImage Streaming FormatsMotion JPEG, MPEG, H.264Image Streaming Resolution640x480Image ModesThermal, Visual, MSX (IR-image with enhanced detail presentation)Automatic Image AdjustmentContinuousPOWER SYSTEM (POE Injector)External Power Operations12/24VDC, 2W continuously / 3.1W absolute maxExternal Power ConnectorScrew Connection (12V/0V/Chassis)Voltage Allowed Range9-36VDCENVIRONMENT DATAOperating Temperature Range0°C to +50°C (32°F to +122°F)Storage Temperature Range—40°C to +70°C (—40°F to +158°F) IEC 68-2-1 and IEC 68-2-2Humidity (Operating and Storage)IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F)/ 2 cyclesEncapsulationIP67 (IEC 60529) What's in the Box: class="wtul"> Infrared camera with lens Pinted documentation User documentation CD-ROM Cooling/mounting plate POE injector Camera PoE Cable Raymarine RayNet Ethernet cable
