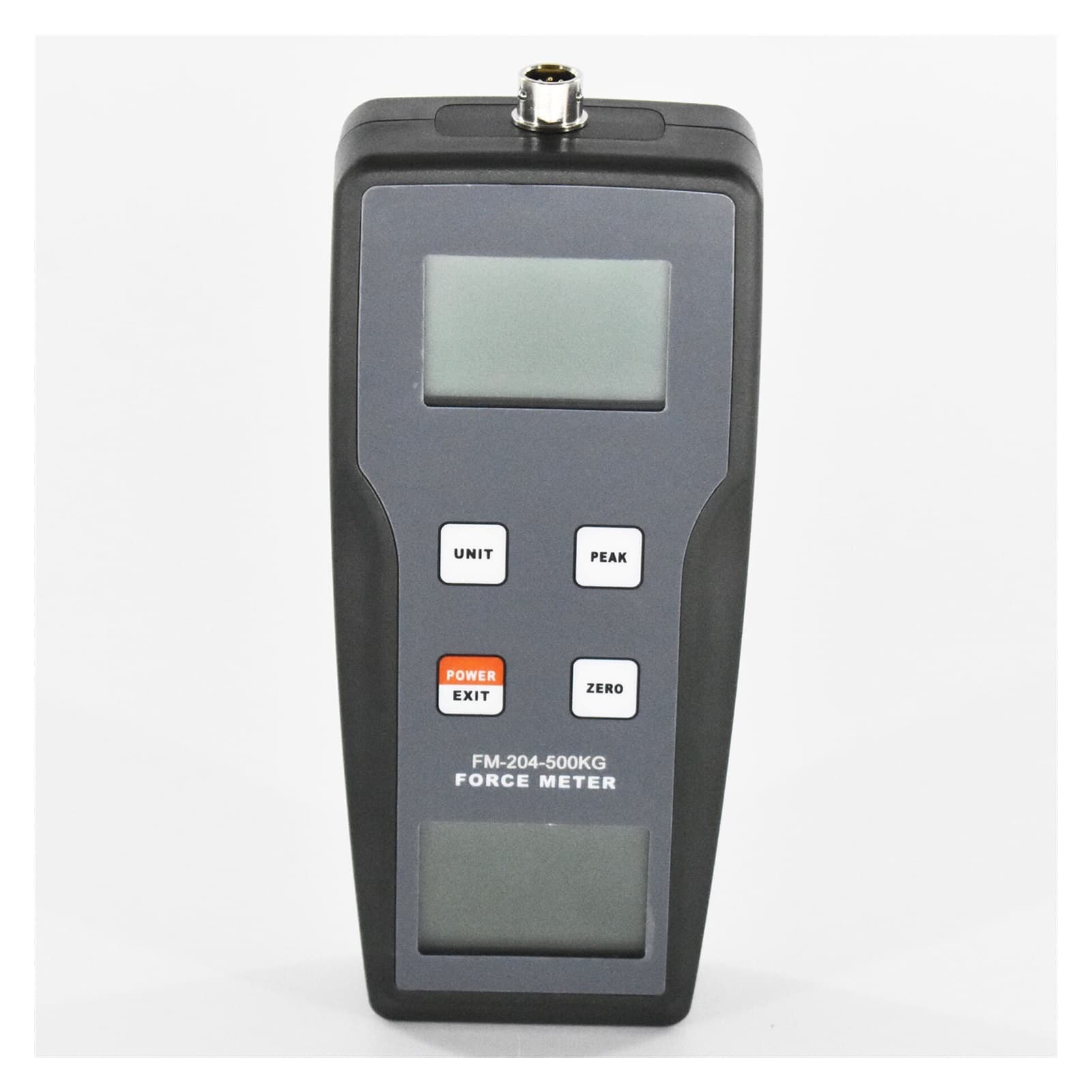

FM-204-500K Digital Force Gauge 4900N Dynamometer pull and push force meter N/kg/lb Mechanical instruments -------- ,Accurate & Efficient Force Measurement

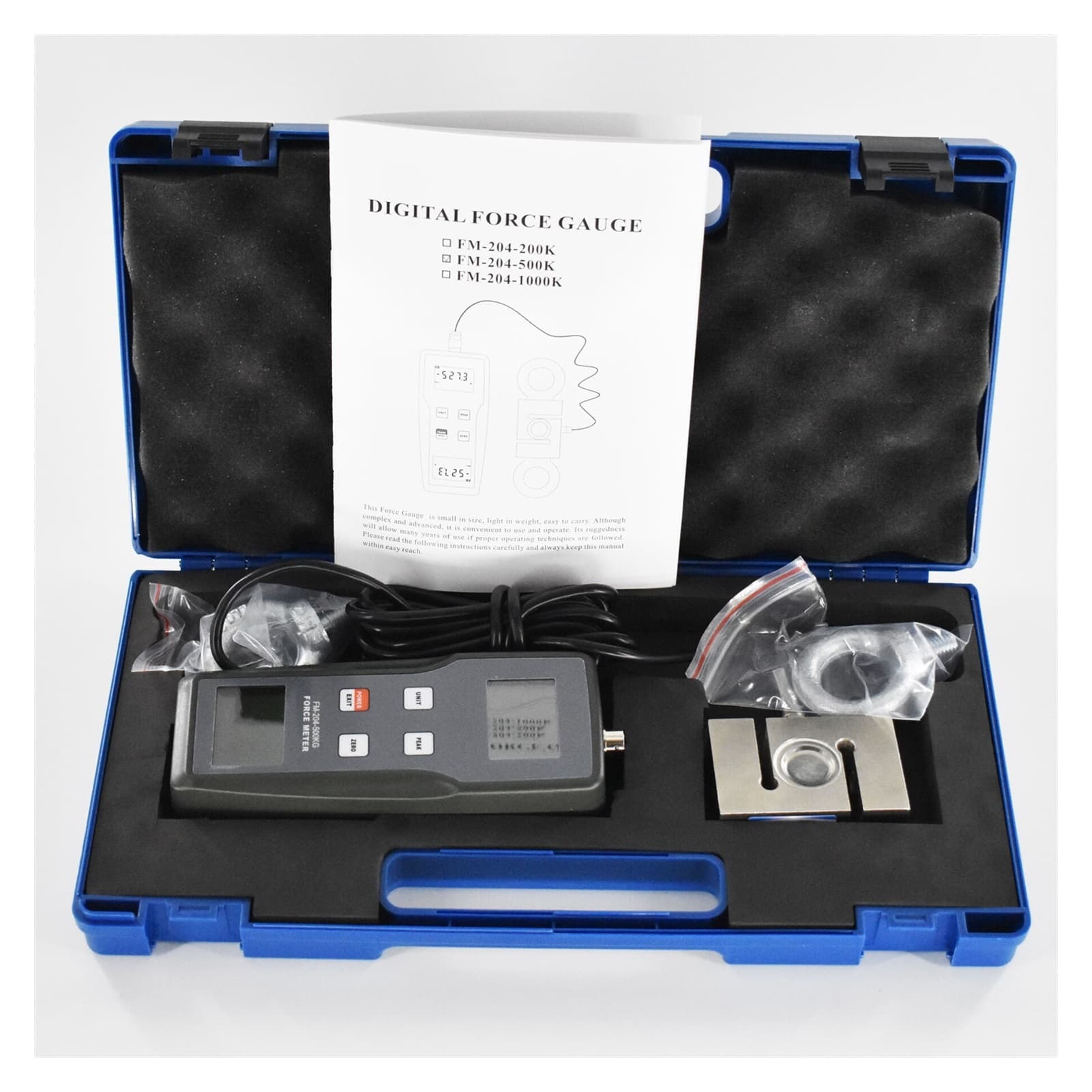

The digital force gauge is a kind of simple and convenient functional instrument for high-accuracy push force and pull force test.It is widely used in electronics,building hardware,textile,auto parts, Specifications Force Range ±500 kgf ±4900 N ±1100 Lbf Resolution 0.01 kgf ( <100 kgf ) 0.1 kgf ( 100 kgf ) 0.01 N ( <1000N ) 1 N ( 1000 N ) 0.1 Lbf ( < 1000 Lbf ) 1Lbf ( 1000 Lbf ) Accuracy ±0.5% FS±1 Digit Unit kgf, N, Lbf Measurement State Peak Value, Real Time Measurement Display 2 Reversed 4 Digit LCD Power Off 10 Mins Auto Power Off, Manual Power Off Backlight Blue Backlight Safe Load 150% FS ( Buzzer Alarm Over 110% FS ) Power Supply 2 x 1.5 AA ( UM-3 ) Battery or 6VDC Power Operating Temperature: 0 ~ 40°C Conditions Humidity: <80% Surrounding No Vibration Source or Corrosive Mwdium Weight 1165 g Case Size 175 x 80 x 36 mm Senor Size 181 x 54 x 30 mm Accessories Standard Accessories Digital Force Gauge Sensor ( M12 Screw Hole ) 2 Suspension Links Manual Carrying Case Optional Accessories Power Adapter Related Products: dynamometer,force gauge,digital force gauge,force gauge push pull gauge,digital push-pull force gauge,tension meter,digital tension wire,digital dynamometer,elevator rope tension tester,textile tension meter,trigger pull gauge,grip strength trainer
