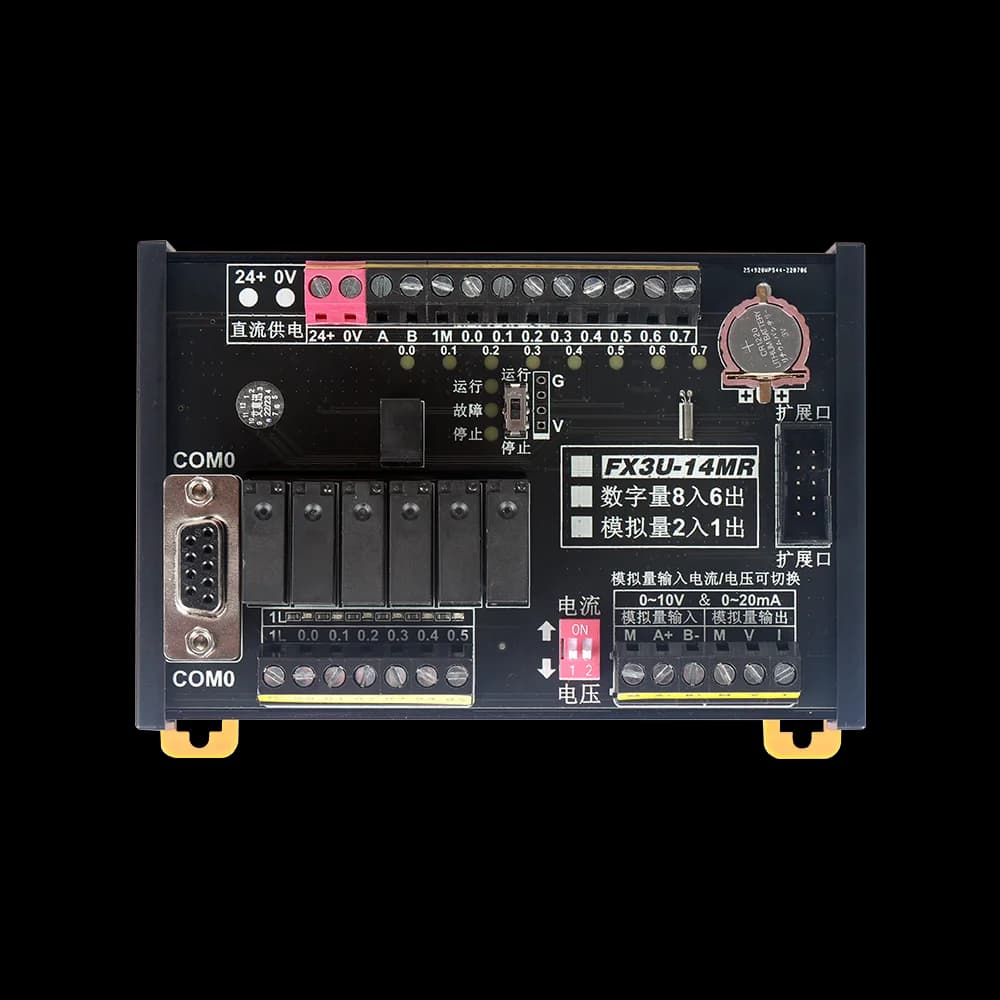

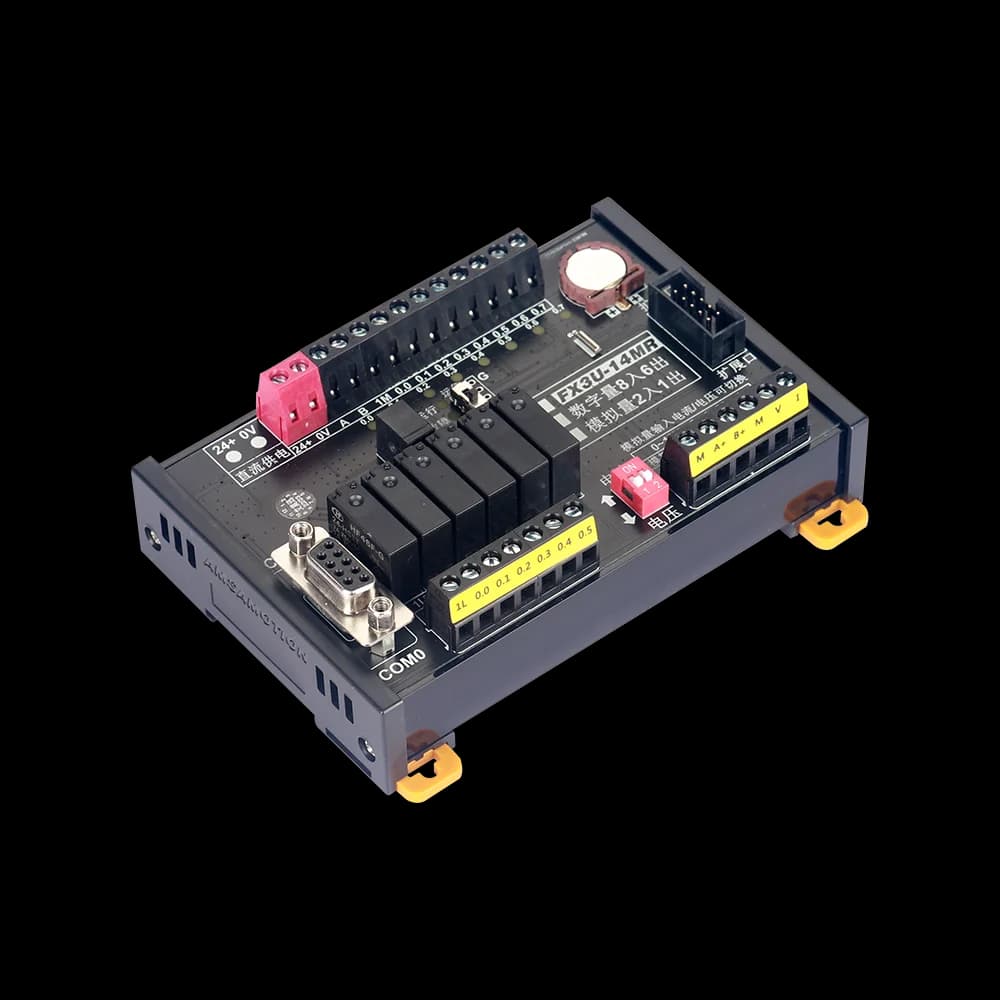

FX3U-14MR PLC Board Programmable Logic Controller Relay Switch 8I 6O Analog 2I 1O RS232 Communication Port

➤ MCU adopts ARM32-bit industrial processor, which is suitable for small PLC for industrial automation applications ➤ Compatible with most instructions of Mitsubishi FX3U, support programming through GX Works2/GX Developer; comes with independent upload and download programming interface ➤ All IO ports use photoelectric isolation to transmit signals, which can effectively filter out various interferences. The input supports positive/negative triggering, which is convenient to use ➤ High-speed counter function ➤ Comes with analog input and output channels ➤ The power circuit adopts anti-reverse connection and anti-surge design ➤ All key electronic components are imported from major brands, and the warranty is 3 years ➤ Widely applicable to signal acquisition and control of industrial field equipment ➤ Abundant basic functions 1. Basic command speed: 0.18us/step, fast command execution speed 2. Large program capacity: the program memory size is 0~16000 steps, with complete basic/application instructions 3. It has powerful functions such as clock perpetual calendar, RUN/STOP switch, A/D, D/A, firmware upgrade, etc. 4. DIN rail installation, easy maintenance ➤ Rich communication function 1. AMX-FX3U-14/48MR programming port is standard RS232C DB9 female, and AMX-FX3U-26MR programming port is standard RS422 The S terminal, in addition, the programming port can also communicate with the touch screen that supports the FX3U PLC protocol 2. AMX-FX3U-26/48MR comes with RS485 communication port, supports MODBUS RTU communication protocol, and can also support FX3U PLC protocol Touch screen communication ➤ High-speed counter function 1. Support 6 channels (X0~X5) single-phase high-speed pulse counting, 2 channels AB phase counting, of which 14MR/26MR four channels (X0~X3) 100K single Phase counting, two channels (X4~X5) 40K pulse counting, 48MR single phase 20K per channel
