GA-490 Active Performance Loop Antenna 100KHz-179MHz — 50cm Ring, 10M Cable for Radios & S DR/Malachite Receivers

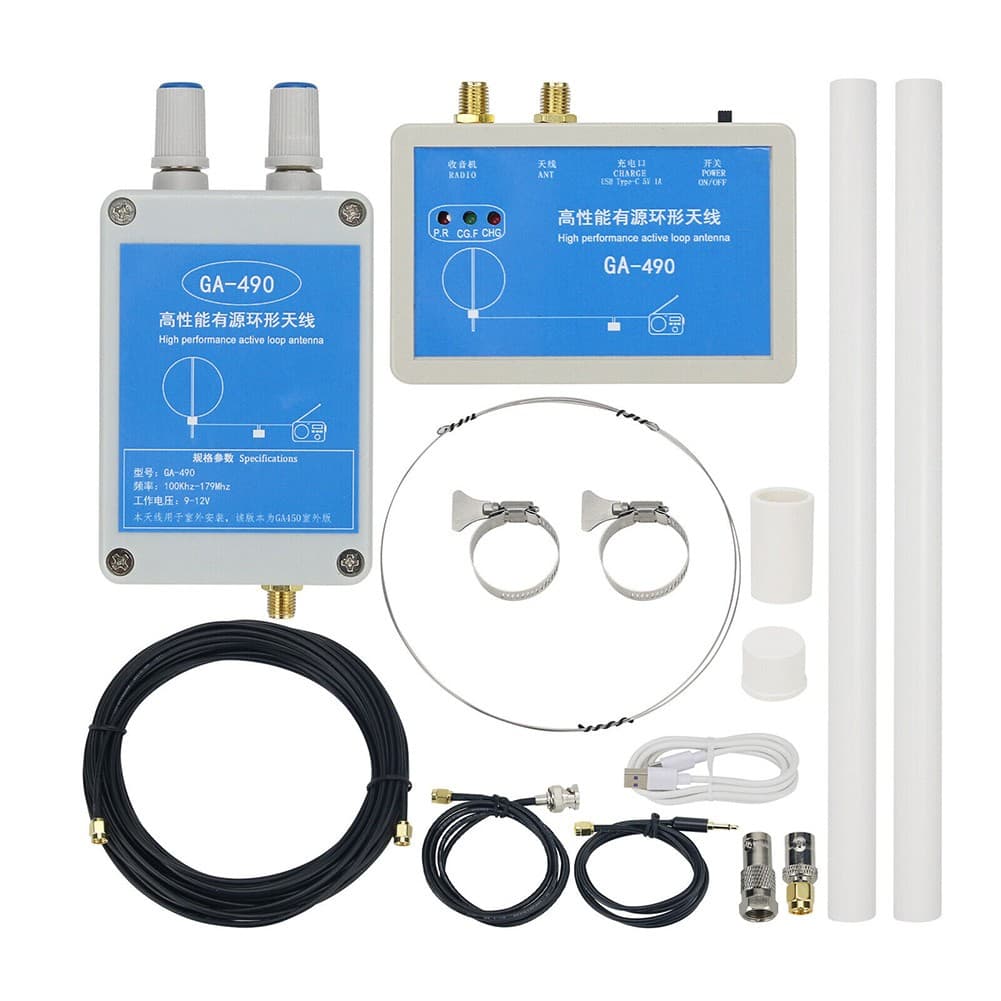

Overview: The GA-490 is a rugged, high-performance active loop antenna built from metal and ABS for reliable reception across many bands. It delivers notably strong shortwave performance and works well on FM when used as a passive antenna. Paired with an S DR or Malachite receiver, it serves as a full-band receiving antenna for broad-spectrum monitoring including FM, medium wave, short wave and aviation bands. For best results install outdoors or on a balcony, away from large structures or other obstructions. Design & connectivity: The antenna uses shielded RG174 feeder cable and matched connectors; with the supplied adapters it can be connected to a variety of radios. The kit is suitable for open-air installation (balcony or outdoor) and includes support hardware for mounting the 50 cm/19.7 inches loop. Power & charging: Power is provided by a built-in 186 50 lithium battery. The charging circuit includes battery protection and supports TYPE-C charging at 5v-1a. Performance: Maximum gain is 20dB, with an impedance of 50 ohms. No tuning is required for operation. Recommended working voltage is 9-12V. Specifications: - Part name: Antenna kit - Model: GA-490 - Material: metal+ABS - Cable length: 10M - Color: as shown in the picture - Working frequency: 100KHz-179MHz (high-performance receiving frequency 100khz-30Mhz) - Power supply: built-in 186 50 lithium battery - Charging circuit: with battery protection/TYPE-C charging/5v-1a - Gain: 20dB (maximum) - Impedance: 50 ohms - Ring size: 50 cm/19.7 inches - Tuning method: no tuning - Application scenario: indoor (hanging on balcony)/outdoor - Working voltage: 9-12V Package contents: 1 x antenna box 1 x power box 1 x 10M/32.8FT cable 1 x 3.5/BNC connector 1 x charging cable 2 x adapters (SMA and F connectors) 2 x support rods 1 x ring Notes: 1. Item color may vary slightly from photos due to monitor and lighting differences. 2. Please allow small manual measurement deviations.
