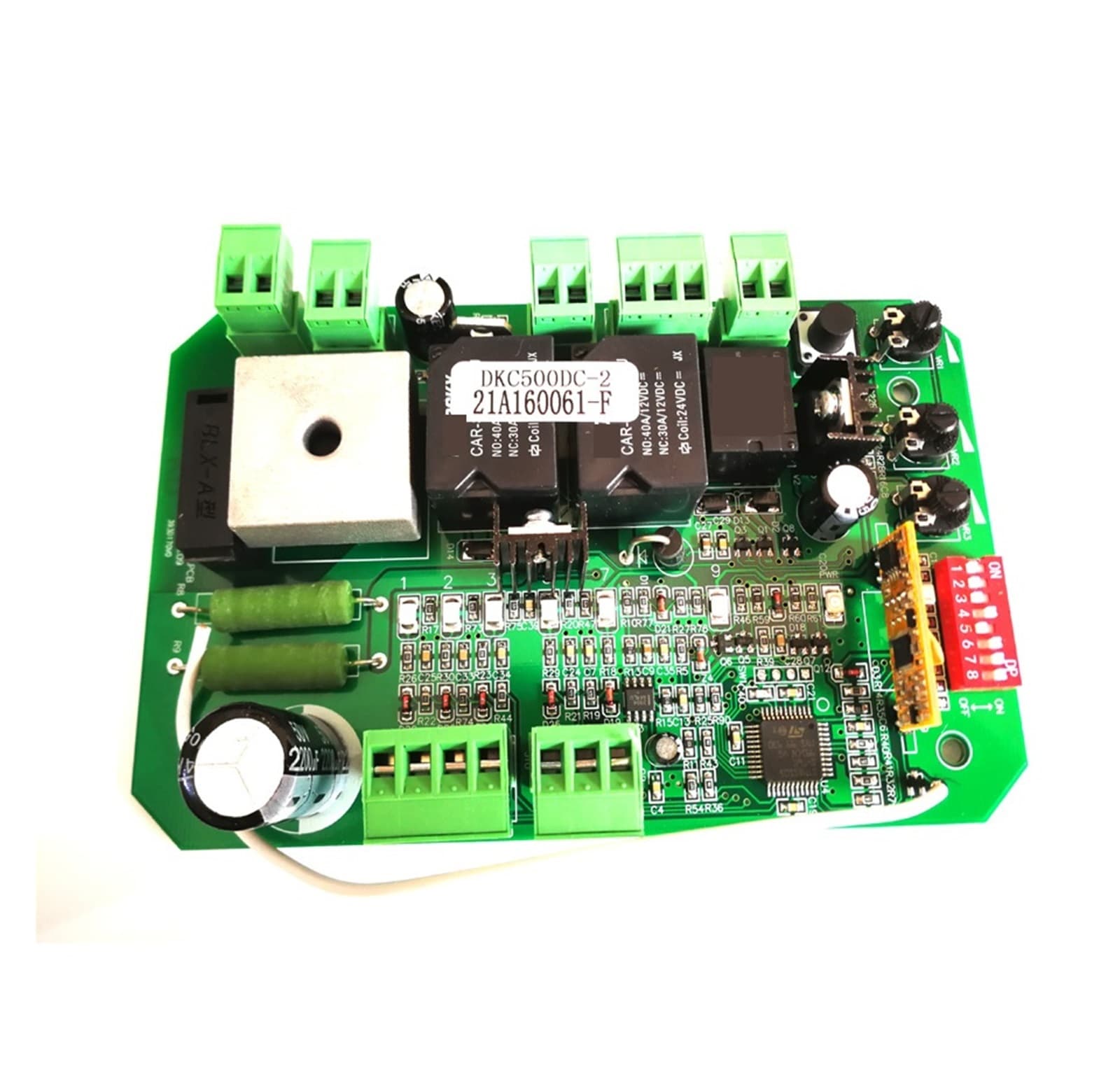

Gate opener control unit motherboard PCB motor controller circuit board card for 24VDC sliding gate motor opener ,Long Lasting

Confirm the turn-on direction If the gate does not move in the desired direction, you need to reverse the working direction of the motor by swapping the red and black wires of the MOT terminal J4, and swapping the "OP" and "CL" of the terminal J10. Beacon Light Connection (not shipped) Connect the Beacon Light wire to the ALM on terminal J8. Single-key switch/three-key switch connection The open line of the push button switch is connected to J7 terminal, the open line of the switch is connected to 1 of J7 terminal, the closing line of the switch is connected to 2 of J7 terminal, the stop line of the switch is connected to 3 of J7 terminal, the public of the switch Wired to J7 terminal 4 VR1: Used to adjust the total working time of the motor. Turn clockwise to increase, counterclockwise to decrease. The total time can be set from a minimum of 10 seconds to a maximum of 90 seconds. VR2: Used to adjust the output force of the OPEN motor to ensure safe use. Turn clockwise to increase, counterclockwise to decrease. VR3: Used to adjust the output force of the CLOSE motor to ensure safe use. Turn clockwise to increase, counterclockwise to decrease.
