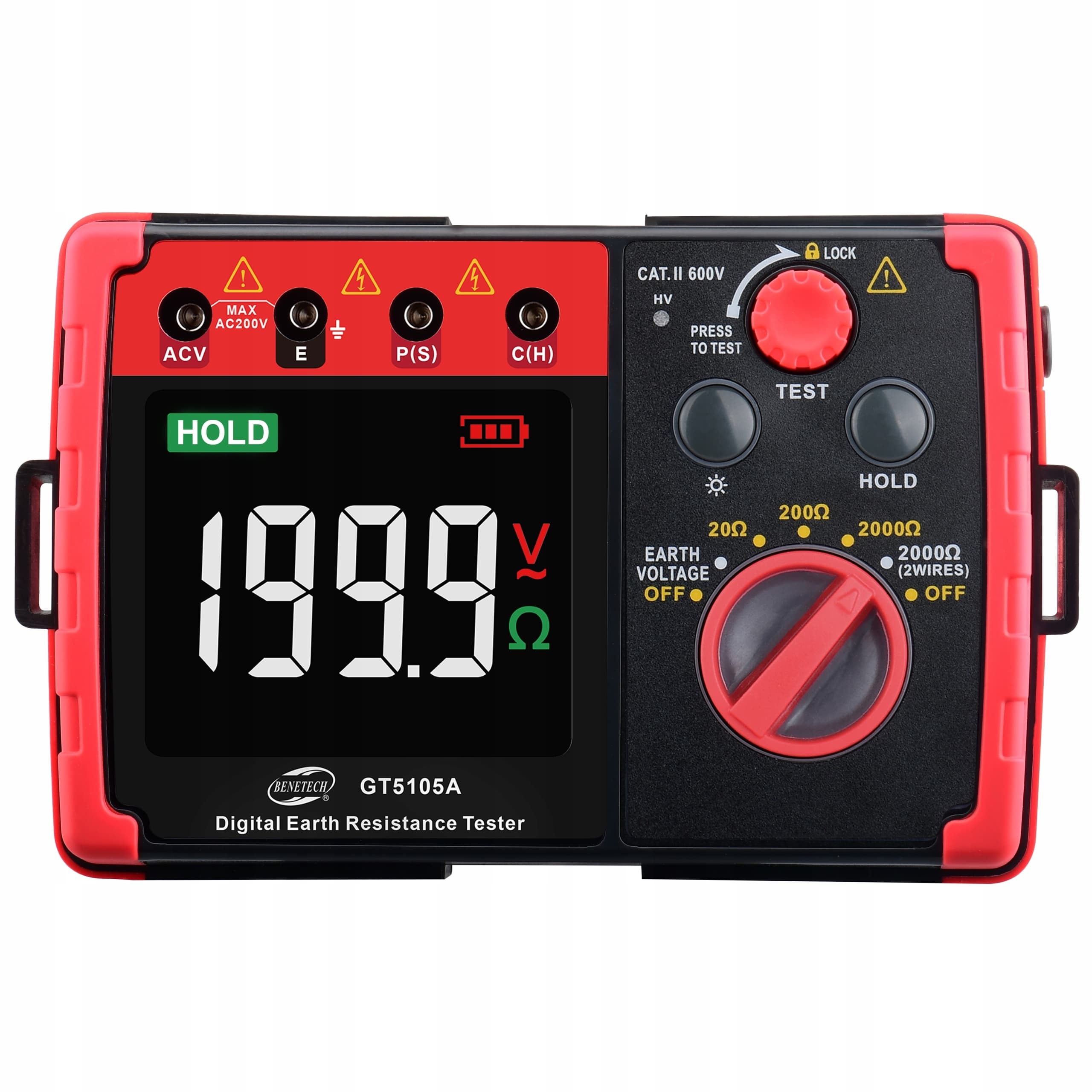

GT5105A High Precision Digital Display Ground Resistance Tester

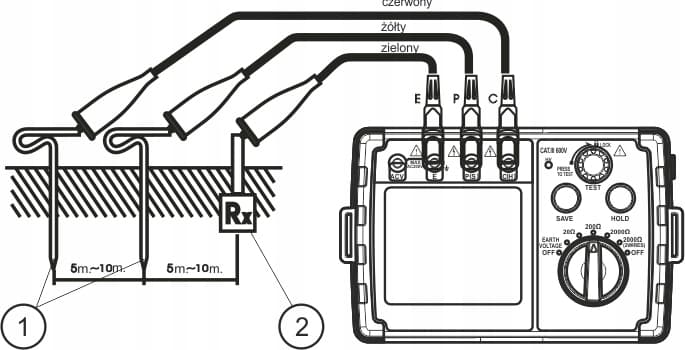

✅ Ground Resistance Meter: Benetech GT5105A The Benetech GT5105A meter performs accurate 3-wire ground resistance measurements or simple 2-wire ground resistance measurements on power systems, lightning protection devices, and grounding systems of all electrical equipment. ✅ Key Features of the Tester: 1. Ground resistance meter with a large, clear LCD display. Measures earth (soil) ground resistance: Simple 2-wire measurement. Accurate 3-wire measurement. Ground potential measurement. Measures voltage drop across ground electrodes. Out-of-range indication. Battery status indicator. Ergonomic shape for easy measurement and transportation. Practical protective cover. Rugged housing. ✅ Set Contents: Benetech GT5105A Electrical Ground Resistance Meter Auxiliary ground electrodes (metal rods) Two 5m green cables (with alligator clips) 10m yellow cable (with alligator clips) 20m red cable (with alligator clips) AA 1.5V batteries Six batteries User manual Belt and pouch ✅ Technical Specifications: Ground Resistance: Range: 20Ω, Accuracy: ±(2%+10), Resolution: 0.01Ω Range: 200Ω, Accuracy: ±(2%+3), Resolution: 0.1Ω Range: 2000Ω, Accuracy: ±(2%+3), Resolution: 1Ω; Range: 2000Ω (two-wire), Accuracy: ±(2%+5), Resolution: 0.1Ω; Ground Voltage: Range: 200V, Accuracy: ±(2%+5), Resolution: 0.1V; Auxiliary Ground Resistance: 500Ω; Error: +5%; Ground Voltage: ≤10V AC ✅ Clear LCD Display The large color display with backlight facilitates operation in difficult lighting conditions. ✅ Rugged and Compact Housing The housing is made of rugged, impact-resistant material, providing additional protection during daily use. ✅ Multimeter Technical Drawing: 1. Two auxiliary ground electrodes (metal rods). 2. Ground Terminal C. Auxiliary Probe P. Auxiliary Probe E. Ground Probe
