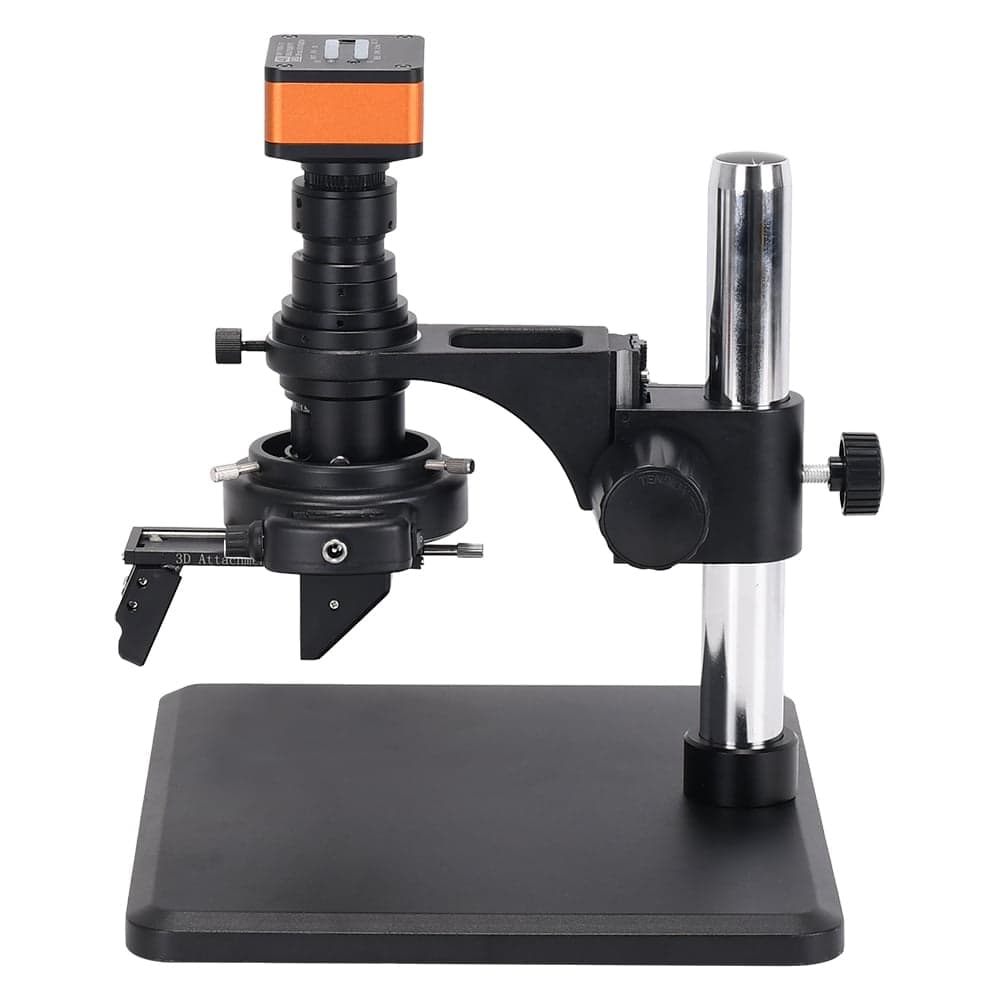

Hayear 4K HDMI Industrial Microscope Camera Set 180X C-Mount Lens 144 LED Ring Light Adjustable Universal Bracket for Phone Repair PCB Soldering Jewels

‌Camera Features: Effective Pixels: CMOS 1/2.33 IMX 4K SENSOR Resolution: 4K/2K/1080P 1080P（USB） Sensor Size: 1/2.33 inch Pixel Size: 1.55 x 1.55 μm Image Resolution: 4032 × 3024 (12MP) Frame rate: 60@FPS (4K under 4:3 ratio) Image Format: JPEG Wave Length[nm]: 400nm~700nm Frame Fate: 2880×2160@60FPS(4K); 1080P 120@FPS; 720P 240@FPS Lens Type: C / CS Timing Photo/Record: Support Timing Photo/Record Storage: TF Card, Max 256G PC Support:Windows / Mac / Linux, PC Software with Measuring Function Image Measurement: Support HAYEAR Measurement Language: EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP Output Interface: HDMI / USB Standard USB 2.0 interface (Type B) Image Scaling: 7 times zoom Transverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, movable Different color,5 horizontal line, 5 vertical line, any positions Exposure: Auto/Manual, value adjustable Encode: H.264 /H.265 (High Profile) Video format: Video format Input Voltage: DC 12V/1A 180X C-Mount Objective Lens: Working distance: 95-150mm zoom c-mount Lens 0.5X C-mount adapter zoom ratios: 6.5:1 Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display) 144 LED Ring Light: 144 bright white LED bulbs 100,000 hours of life Intense and focused shadow-free illumination The brightness of 0-100%Adjustable,high brightness Variable intensity control Power input: 100-240V, 50-60HZ Suit for the dia of the lens: 30mm-63mm
