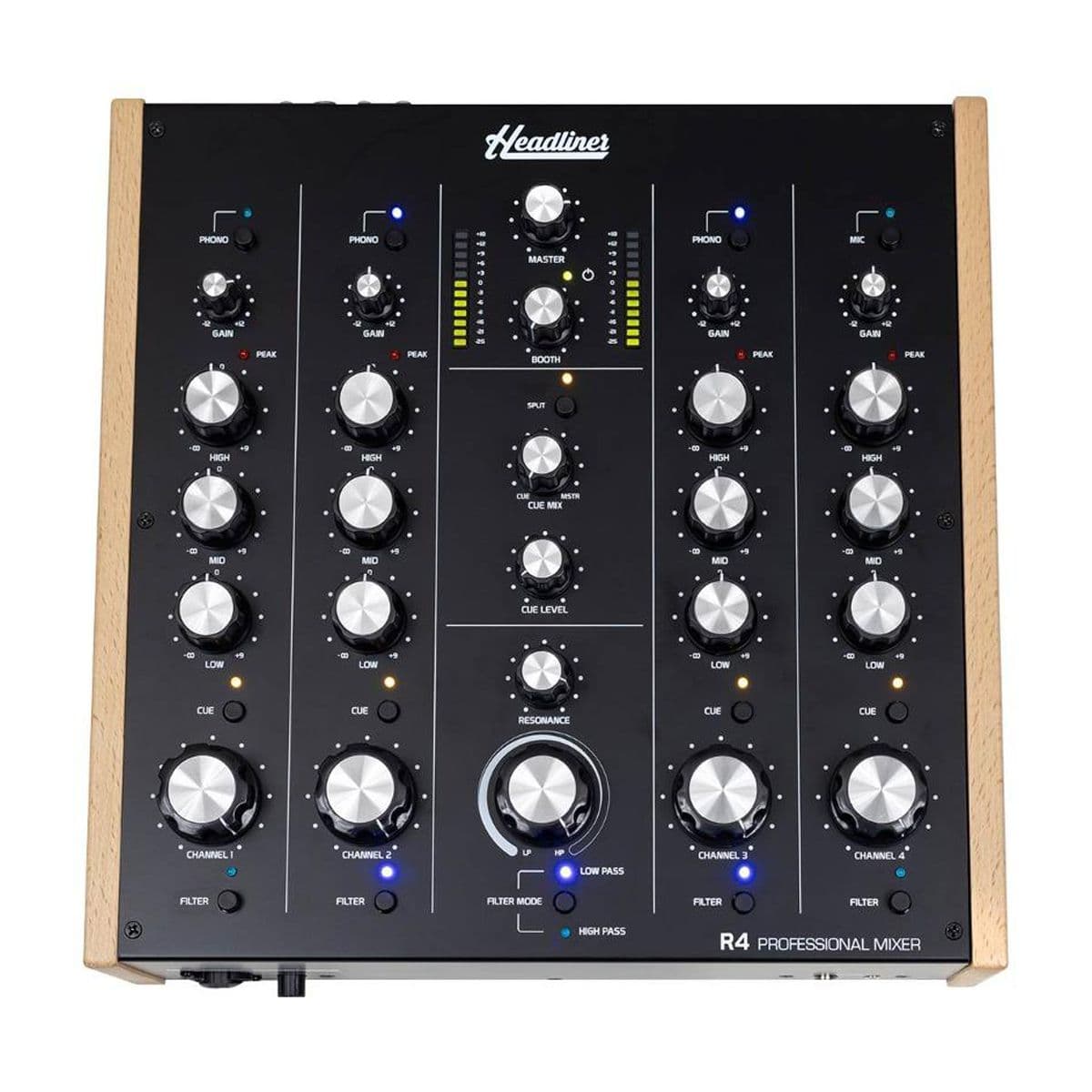

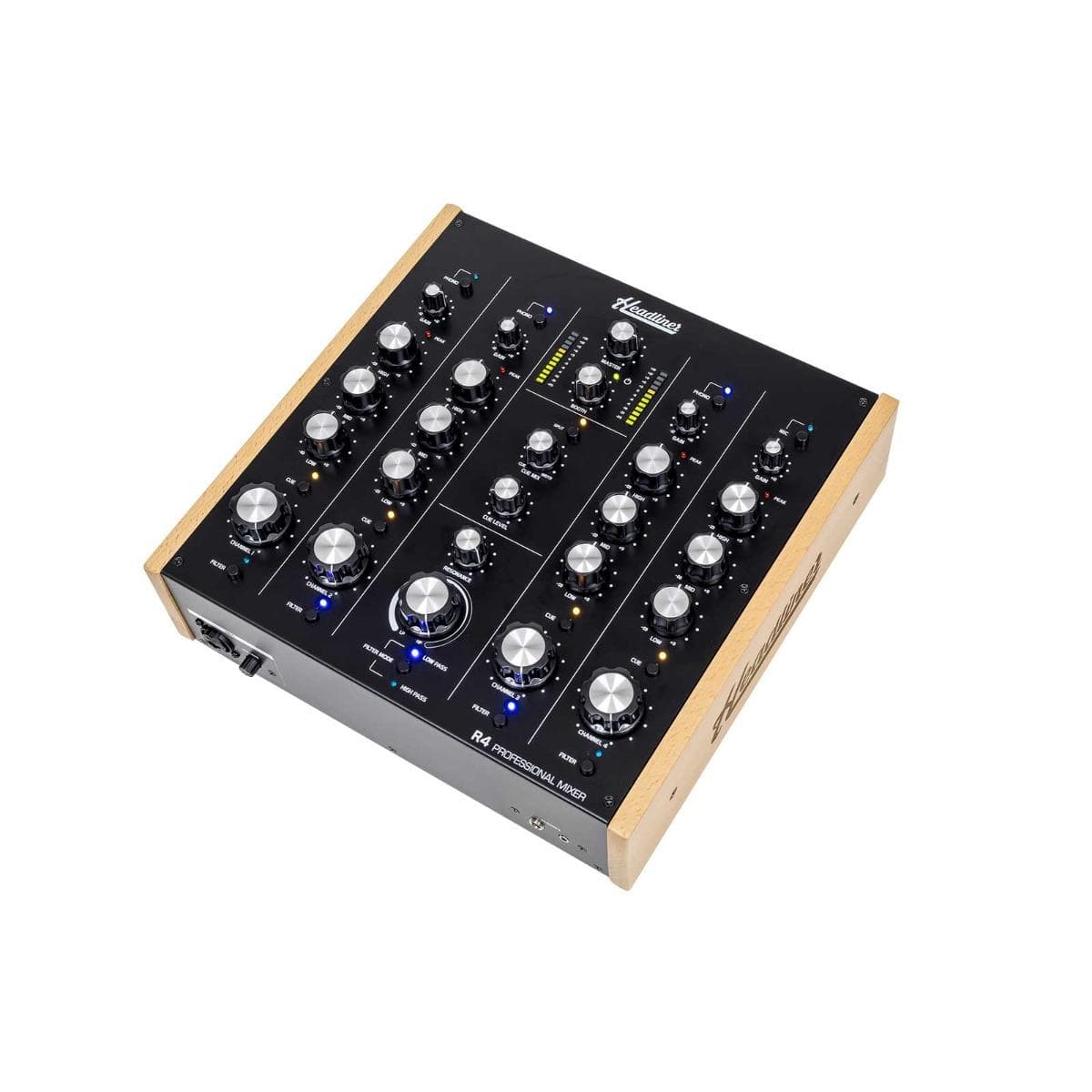

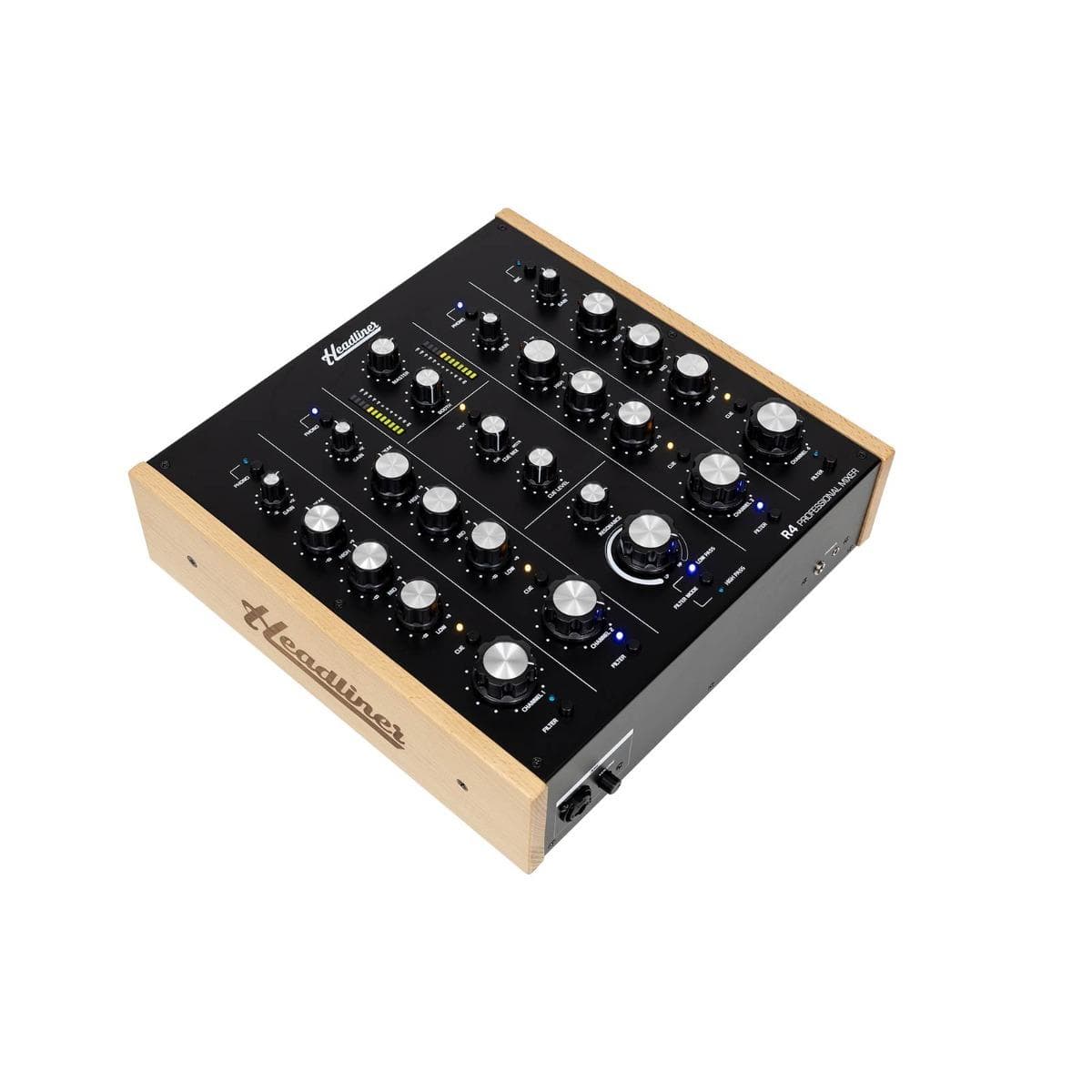

Headliner HL90120 R4 4-Channel Analog Rotary DJ Mixer with Pro-Fit Case Package

Three stereo channels with selectable Line and Phono RCA inputs and one channel with selectable stereo Line and mono Microphone. Each channel features Gain control with Peak LED 3-Band Isolator EQ Headphones Cue selector with LED channel volume control and filter activation switch with LED. Master channel features analog filter headphone monitoring and output control section. Analog filter features selectable High Pass / Low Pass Filter modes with Frequency and Resonance controls. Genuine ALPS potentiometers. Headphone Cue control section features headphones volume control headphones mix control (Cue/Master) and split monitor switch. High current headphone amplifier with dual 1/4" and 1/8" jacks. Independent Master and Booth outputs with volume controls balanced XLR outputs and unbalanced RCA outputs. Additional Record output with unbalanced RCA jacks. Dual LED level meters for the Master output. Microphone input with level control on front panel. Sturdy metal enclosure with stained wood side panels for a classic look Modular internal construction for superior audio performance. External split rail power supply connected via locking Mini XLR connector. Push-button power switch on rear panel. Three stereo channels with selectable Line and Phono RCA inputs and one channel with selectable stereo Line and mono Microphone. Each channel features Gain control with Peak LED, 3-Band Isolator EQ, Headphones Cue selector with LED, channel volume control and filter activation switch with LED. Master channel features analog filter, headphone monitoring and output control section. Analog filter features selectable High Pass / Low Pass Filter modes with Frequency and Resonance controls. Genuine ALPS potentiometers. Headphone Cue control section features headphones volume control, headphones mix control (Cue/Master), and split monitor switch. High current headphone amplifier with dual 1/4" and 1/8" jacks. Independent Master and Booth outputs with volume controls, balanced XLR outputs and unbalanced RCA outputs. Additional Record output with unbalanced RCA jacks. Dual LED level meters for the Master output. Microphone input with level control on front panel. Sturdy metal enclosure with stained wood side panels for a classic look Modular internal construction for superior audio performance. External split rail power supply connected via locking Mini XLR connector. Push-button power switch on rear panel. Headliner HL90120 Product Specifications: Microphone Inputs Nominal Input Level: -50dBu Frequency Response: 20Hz - 20kHz (+/- 0.1dB) THD + N: < 0.1% Input Impedance: 1.2 kOhm Line Inputs Nominal Input Level: -10dBV (-7.8dBu) Gain Range: -12dB to +12dB Frequency Response: 20Hz - 20kHz (+0/- 0.5dB) THD + N: < 0.05% Input Impedance: 10 kOhm Phono Inputs Nominal Input Level: -40dBu (@1kHz) Gain Range: -12dB to +12dB Active RIAA equalization THD + N: < 0.05% Input Impedance: 47 kOhm Input capacitance: 100pF Single stage Phono Preamp Ceramic capacitors Main Outputs Nominal Output Levels, balanced: +4dBu Maximum Output Level, balanced: +20dBu Nominal Output Levels, unbalanced: -10dBV (-7.8dBu) Maximum Output Level, unbalanced: +12dBu Frequency Response: 20Hz-20kHz (+0/-1.5dB) Residual noise: <-86dBu (Line to Master)(A-Weighted) Dynamic Range: > 100dB (A-Weighted) Crosstalk: < -65dB THD + N: < 0.05% Headphone Output Maximum Output Level: 70mA/channel into 150? Minimum Load Impedance: 32 Ohms/channel Power Supply Type: External with locking mini-XLR connector Input Voltage: 100-240v ~ 50/60Hz Output Voltage: +/-15V; 500mA This Package Includes: (1) Headliner HL90120 R4 4-Channel Analog Rotary DJ Mixer (1) Headliner HL12018 Pro-Fit Case for Headliner R4 Rotary Mixer
