High-Performance Solar Charge Controller MPPT 60A - Premium LCD Display, 12V/ 24V/36V/48V Auto PV 150V Solar Panel Battery Intelligent Regulator for Home/Cabin Energy Systems

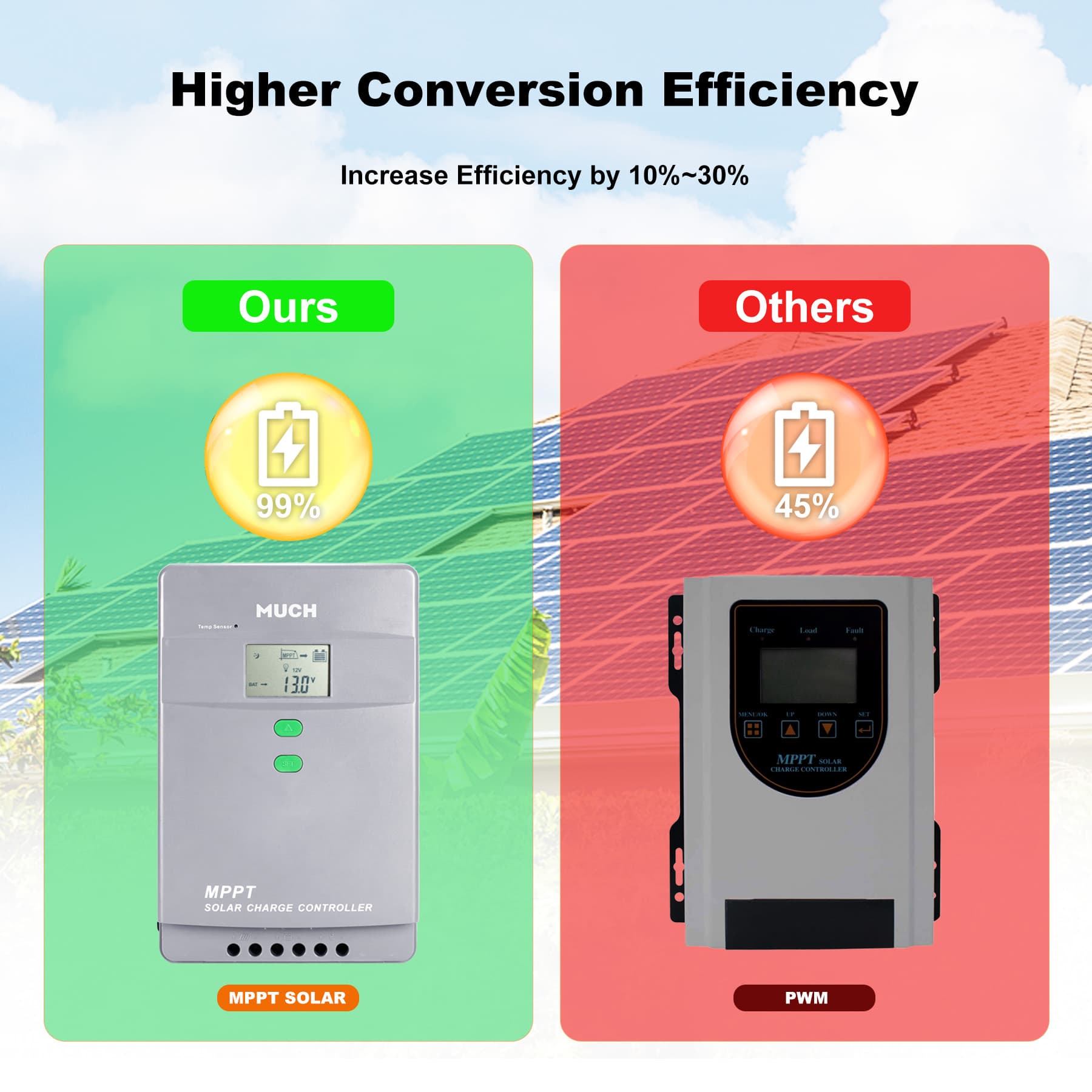

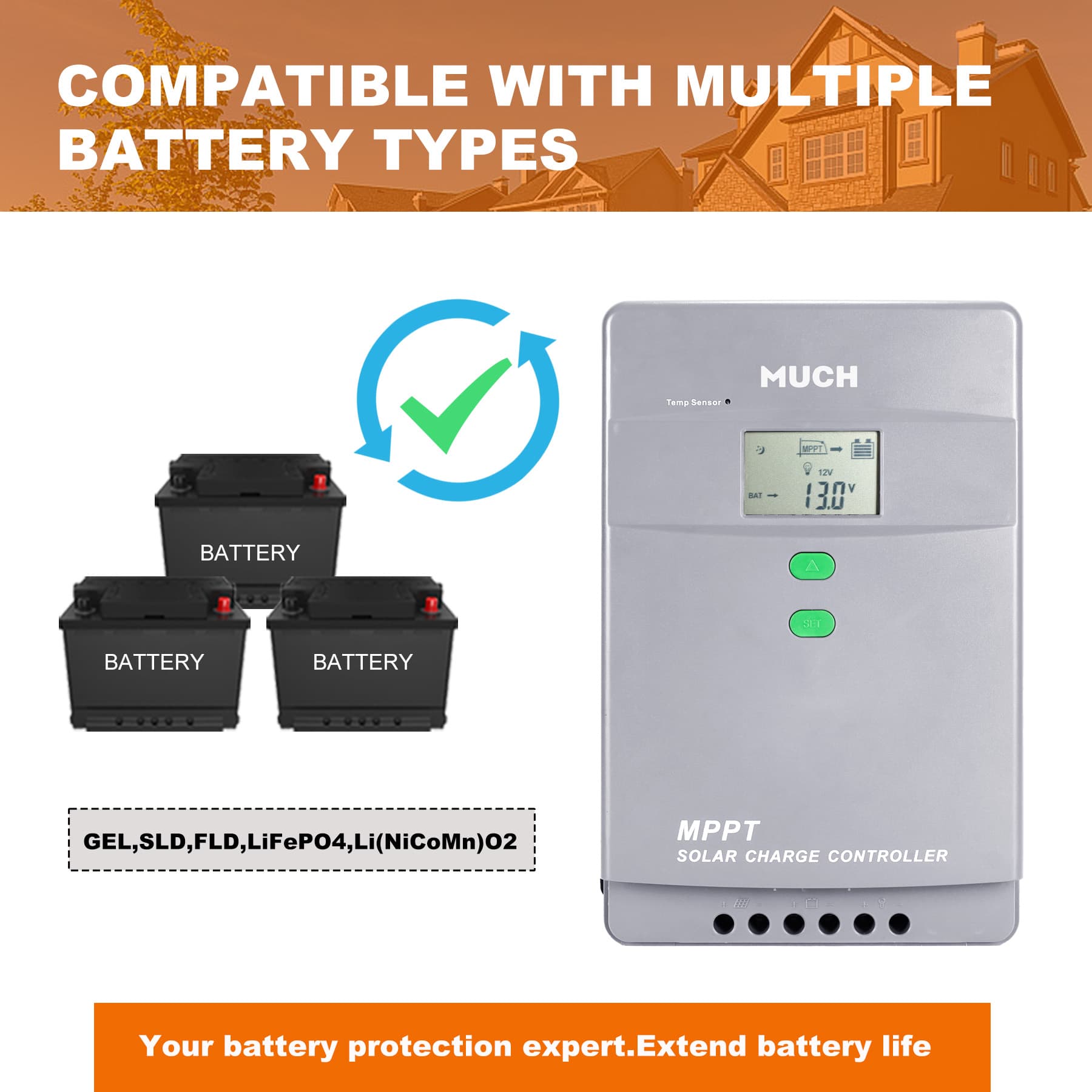

【MULTIPLE PROTECTION FUNCTION】Protection for overcharge, reverse current, overheat and reverse wiring. 【99% MPPT CHARGING EFFICIENCY】The tracking rate of maximum power is ≥99% and the maximum conversion rate is >98%, can be widely used for various applications,e.g. solar RV, household system and industrial field monitoring, etc. 【60A MPPT CHARGING CONTROLLER】4-stage battery charging algorithm for a rapid, efficient , safe charging(Bulk Charge, Boost Charge, Float Charge,and Equalization), 60amp Rate Charging current 【WIDE RANGE SOLAR VOLTAGE/POWER SUPPORT】Controller support High PV Input Power/voltage. Controller can accept Solar voltage up to 150V. When battery is 12V system: Suggest Solar power 780W, range:DC20V~DC80V；1560W 105V when 24V;2340W-150V-36V;3120W-150V-48V 【12V/24V/36V/48V BATTERY SUPPORT】Negative grounding design controller more safe, controller Compatible with a variety of batteries (Li(NiCoMn)O2, LVR, LVD,Sealed, Gel, Flooded and LI (LFP) battery charging parameter pre-set, User-defined, etc.) 【FULL CHARGING PROTECTIONS】Short Circuit/Overcurrent/Reverse Polarity,etc.protections; Very detail LCD screen and 2 buttons make this solar controller very simple to use. Fast service support and Simple and detail wiring instruction available
