High Performance Turntable Phono Cartridge with Elliptical Stylus

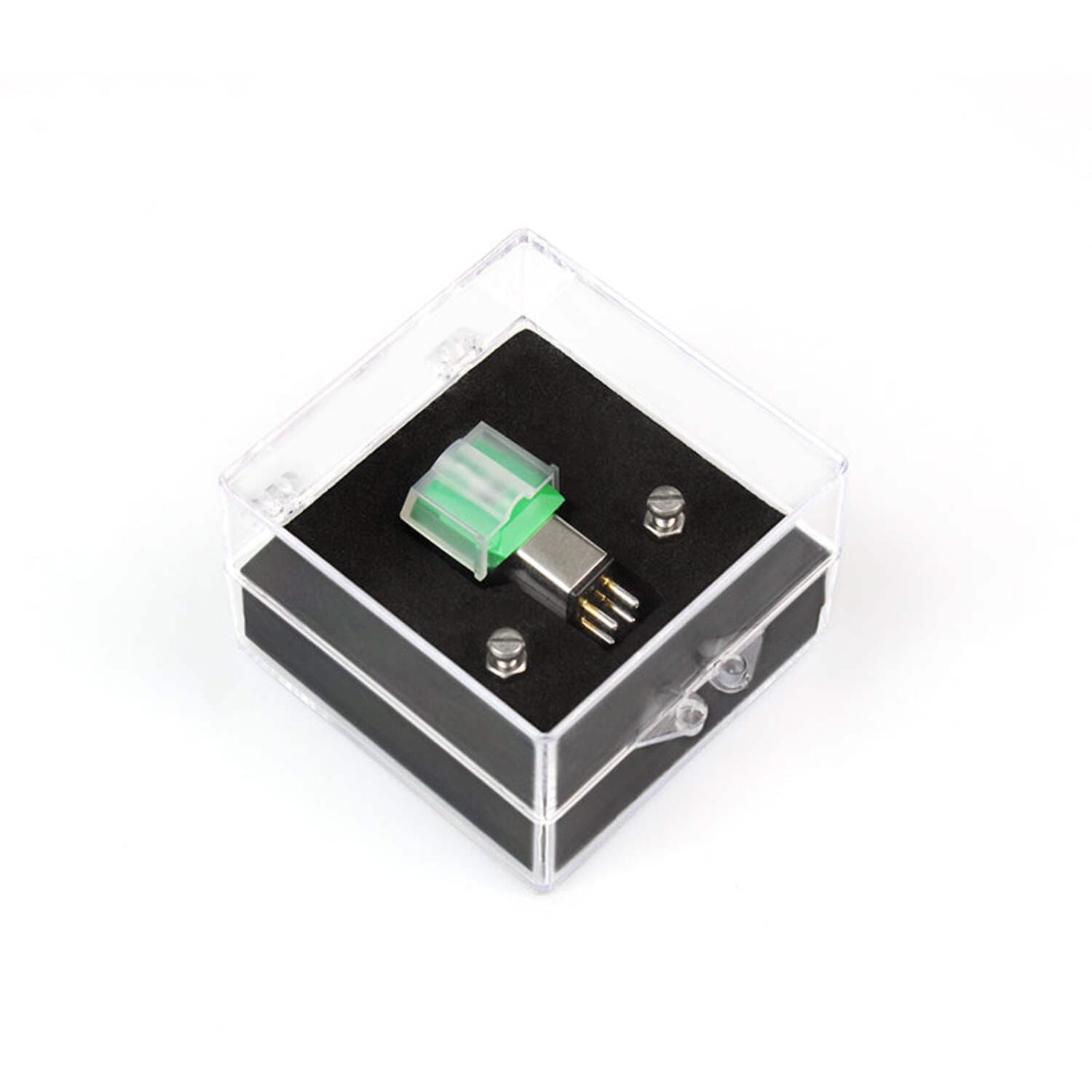

High Performance Turntable Phono Cartridge with Elliptical Stylus Enhance your turntable’s audio quality and accuracy with this advanced cartridge and stylus. Featuring a precision elliptical diamond stylus paired with dual magnet cartridge pickups, it delivers superior sound reproduction. Crafted from cutting-edge carbon fiber materials, it ensures lightweight construction and balanced weight distribution. Comes complete with head shell mounting screws for easy installation. SPECIFICATIONS: Frequency Response: 20～20,000Hz Output voltage: 2.5mV (1kHz, 5cm/sec.) Channel separation: 20dB (1kHz) Output balance: 2.0dB (1kHz) Needle pressure: 1.5-2.5g (recommended gauge pressure 2.0g) Coil impedance: 2.8kΩ (1kHz) Coil DC resistance: 410Ω Recommended load resistance: 47kΩ Load capacitance: 100～200pF Coil inductance: 400mH (1kHz) Static obedience: 20×10-6cm/dyne Dynamic compliance: 6.5×10-6cm/dyne(100Hz) Tip shape: elliptical needle (0.4×0.7mil) Needle bar: aluminum alloy tube Vertical tracking angle: 20° Dimensions: H17.2×W17.0×D30.5mm Cartridge weight: 5.7g By AMERICAN RECORDER
