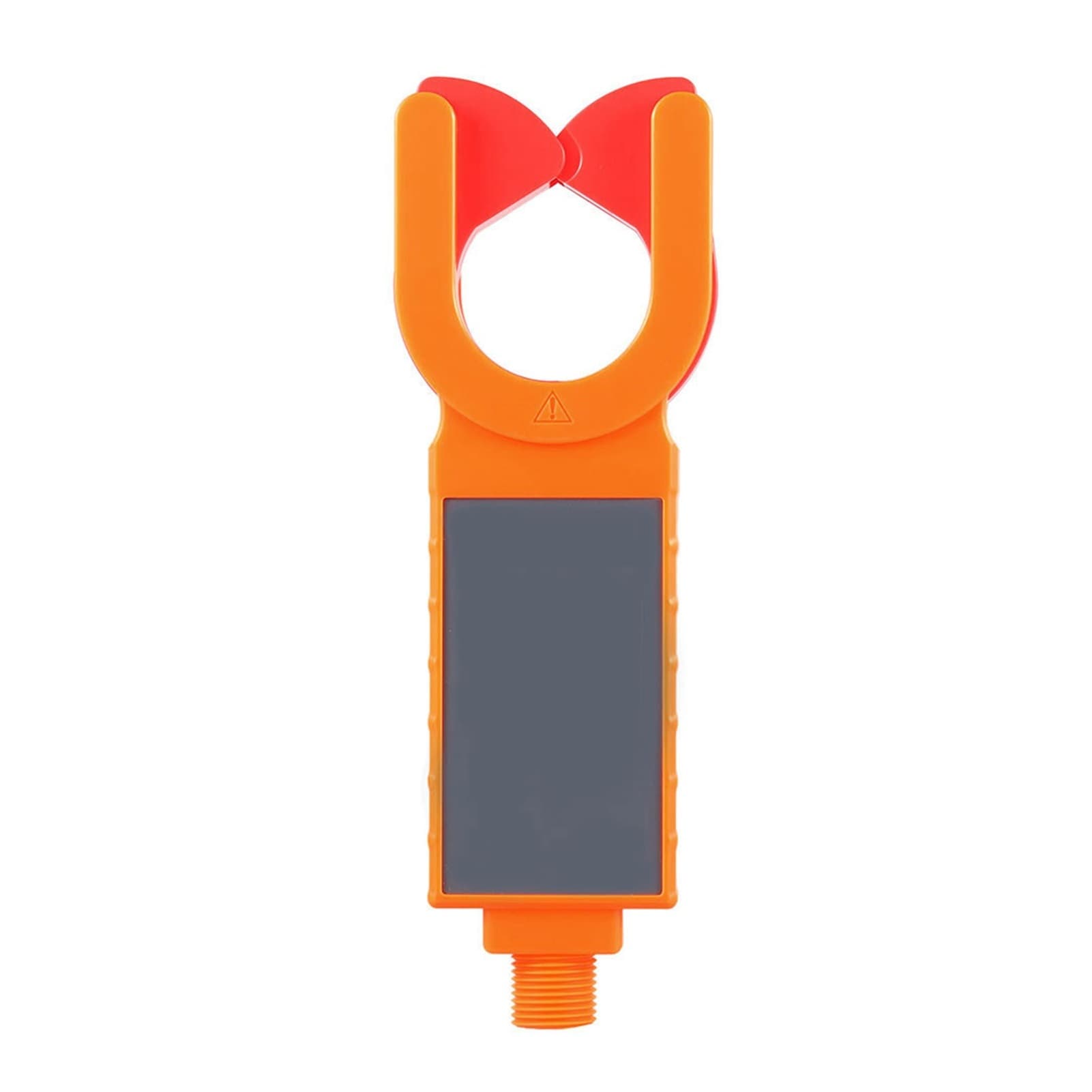

High Voltage Leakage Current Transformer Clamp-on Leakage Current Sensor Phase, Energy, Power Adapt To Oscilloscope, Power Quality Analyzer, High-precision Digital Multimeter FR050HV ,Easy to Use

-FR050HV can measure with a variety of measuring instruments, and can also be connected to phase detection analyzers, industrial control devices, data loggers, oscilloscopes, harmonic analyzers, power quality analyzers, high-precision digital multimeters, and more. It is easy to use and easy to carry. Widely used in substations, power plants, industrial and mining enterprises and testing stations, electrical maintenance departments for current detection and field electrical work. Insulation rods have characteristics of moisture resistance, high temperature resistance, impact resistance, bending resistance, high insulation, etc. -Range 0.0mA-1200A, jaw size 50mm, turns ratio 4000:1, current mutual inductance coil tap output (2.0mm2P base output), accuracy 1%, standard without insulating rod and cloth bag -The front pushing jaw opens and clamps the measured wire, and the back pulling jaw opens to leave the measured wire, used with the insulating rod and for high voltage line test of 60KV and below. -FR050HV high voltage clamp current sensor is a portable clamp design using the latest CT technology. It is designed to measure the current, leakage current, high harmonic current, phase, electric energy, power, power factor of high and low voltage lines, etc. It is not necessary to disconnect the circuit under test. It is safe, fast, high-precision, and highly stable without interruption.
