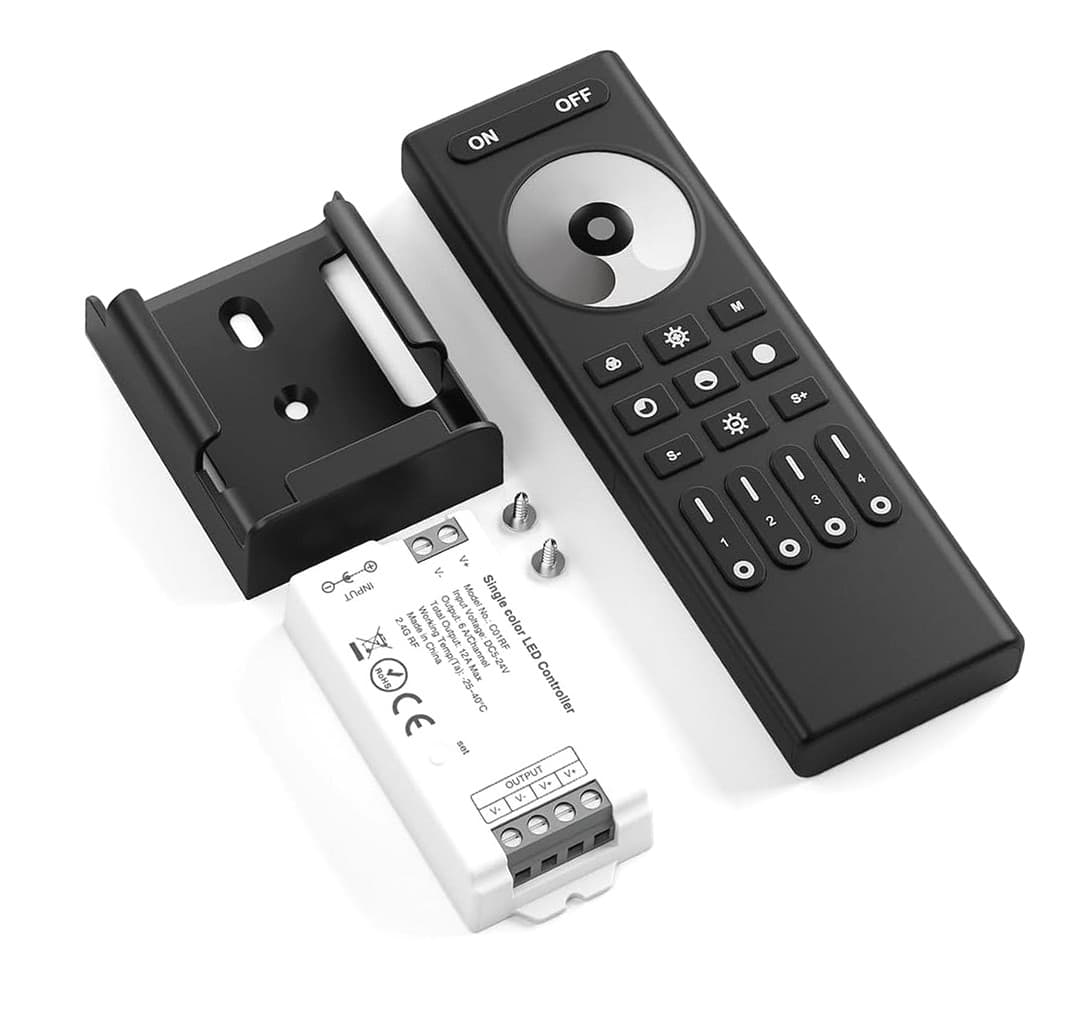

Highcool C01RF / RC01RFB Tuya PWM Single-Color Controller Kit — 4-Zone 2.4GHz RF Remote for 2‑Pin Strip Lights (6A/CH, 12A Total)

Designed for single-color LED strips (2-wire: positive and negative), this PWM controller supports 5050SMD, 3528SMD, 5630SMD and COB single-color tape. Electrical ratings: 6A/Channel (Total output 12A). Power handling: DC5V 60W, DC12V 144W, DC24V 288W. Important compatibility note: CAN NOT work with SPI addressable strips that include integrated ICs such as WS2811, WS2812B, WS2813, WS2814, WS2815, SK6812, etc. Zone control: four independent zones can be managed separately with no restriction on assignments. Each RC01RFB remote can be paired to one or multiple controllers; controllers within 98 feet (open environment) can synchronize automatically while still allowing individual-area control. You may expand coverage by purchasing additional controllers. Three control options for the C01RF: 1) 2.4GHz RF remote (RC01RFB), 2) Tuya Smart / Smart Life app via 2.4GHz Wi‑Fi, and 3) Voice Assistant control. Note: the Wi‑Fi and voice features require the optional gateway module GW01W; all three methods can operate at the same time. RC01RFB wireless details: uses 2.4GHz RF transmission with up to 98 feet control range in open spaces. The remote combines a touch-sensitive color wheel and physical buttons for intuitive operation and adjustment of brightness and scenes to suit different needs.
