Hustler Raptor SD/SDX Zero Turn Hydro Transmission Bracket Kit 125255 - Replacement Parts

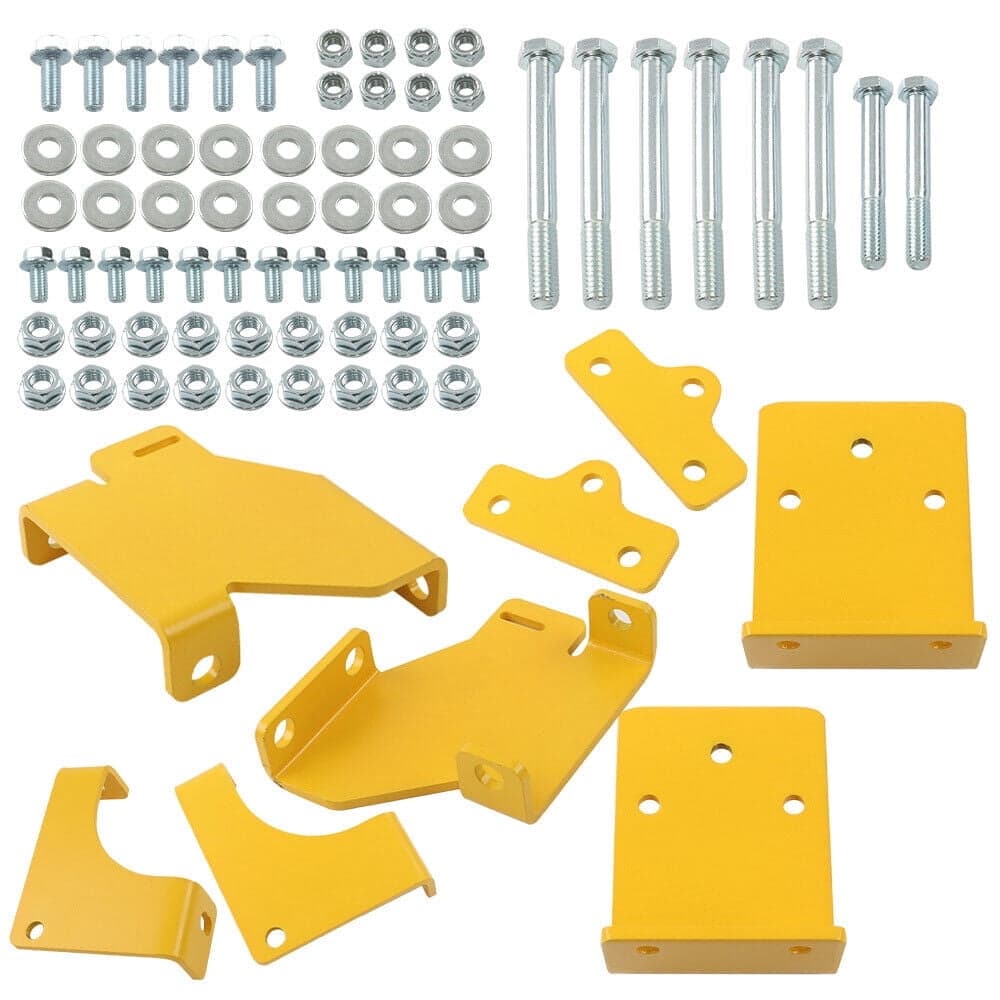

Overview: Heavy-duty replacement hydro transmission bracket kit (OEM ref 125255) designed for use on Hustler Raptor SD and SDX zero-turn mowers. Built from hardened steel for improved strength and longevity compared to the original brackets and mounting plates. Fitment - Compatible Hustler Raptor SD models (part number – model code): 939199 – HTRSDL054KAWFR691VM, 939207 – HTRSDL060KAWFR730VM, 939397 – HTRSDL036KAWFR651VA, 939405 – HTRSDL042KAWFR651VA, 934547US – HTRSDS048KOHKT740U, 938639 – HTRSDL042KOHKT725A, 938647 – HTRSDL048KOHKT740A, 938654 – HTRSDL048KAWFR651VA, 938662 – HTRSDL054KOHKT740A, 938670 – HTRSDL054KAWFR691VA, 938688 – HTRSDL060KOHKT745A, 938696 – HTRSDL060KAWFR730VA, 939173 – HTRSDL054BASPROM44S9M, 939181 – HTRSDL060BASPROM44S9M, 935825 – HTRSDS048KOHKT740A, 935833 – HTRSDS054KOHKT740A, 935841 – HTRSDS060KOHKT745A, 935858US – HTRSDS048KOHKT740U, 935866US – HTRSDS054KOHKT740U, 935882 – HTRSDS054KOHKT740M, 935916 – HTRSDS060KOHKT745M, 936682 – HTRSDS036KOHKT725A, 936708 – HTRSDS042KOHKT725A, 936716US – HTRSDS042KOHKT725U, 937789 – HTRSDS048KAWFR691VA, 937870 – HTRSDS054KAWFR691VM, 937888 – HTRSDS060KAWFR730VM, 938019 – HTRSDS048KOHKT740A, 938027 – HTRSDS054KOHKT740A, 938035 – HTRSDS060KOHKT745A, 938134 – HTRSDS036KOHKT725A, 938142 – HTRSDS042KOHKT725A, 938621 – HTRSDL036KOHKT725A, 937797 – HTRSDS054KAWFR691VA, 937805 – HTRSDS060KAWFR730VA, 937821 – HTRSDS054BASPROM44S9M, 937839 – HTRSDS060BASPROM44S9M. Fitment - Compatible Hustler Raptor SDX models (part number – model code): 936476 – HTRSXL054KAWFR691VA, 936484 – HTRSXL054KAWFR691VM, 938530 – HTRSXL048KAWFR691VA, 938548 – HTRSXL054KAWFR691VA, 938555 – HTRSXL060KAWFR730VA, 939256 – HTRSXL054KAWFR691VM, 939264 – HTRSXL060KAWFR730VM. Key features: 1) Direct replacement for Zero Turn Mower part 125255 Hydro Bracket Kit (OEM). Intended to replace bent or cracked bolts, nut plate and associated bracket hardware. Replacement model references: 125255, 552564, 552565, 552566, 552567. 2) Constructed from hardened steel for greater precision and toughness; designed to resist deformation and breakage and is beefier than the factory pieces. 3) The center of the bracket includes an optional additional mounting hole for a firmer attachment. If you choose to use this extra hole you may need to drill a 7/16'' hole in the mower to align and secure the bracket. The bracket can still be installed without drilling the third hole. 4) Thicker materials and reinforced construction extend service life, simplify replacement and lower maintenance time. Package contents (parts and quantities): 1. 125286-1 TRANSMISSION BRACKET x2 2. 12696-1 PLATE COUPLER x2 3. 552567 FRONT BRACKET x2 4. 552564 RS REAR BRACKET x1 5. 552565 LS REAR BRACKET x1 6. 016899 NT 375-16 HK G5 FLE x18 7. 029629 0S.375161 75 HKFLN x12 8. 029751 CS.375-16X1. 00 HNF G5 IN x6 9. 058776 NT 312 BNLG5 x8 10. 712927 FW O.344X1.00X. 12HD ZN x16 Notes: This kit supplies the bracket hardware needed to restore proper mounting and alignment of the hydro transmission on compatible Hustler Raptor SD/SDX units. All part numbers and quantities are shown above.
