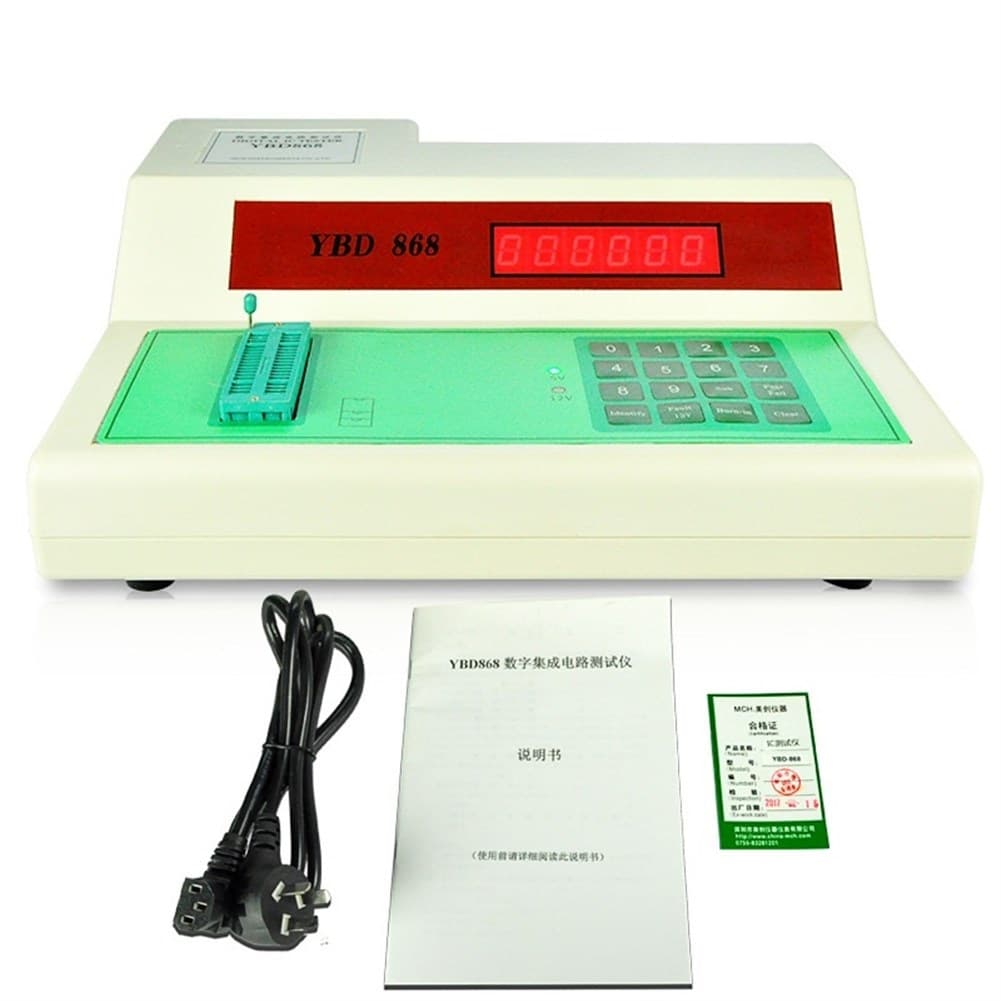

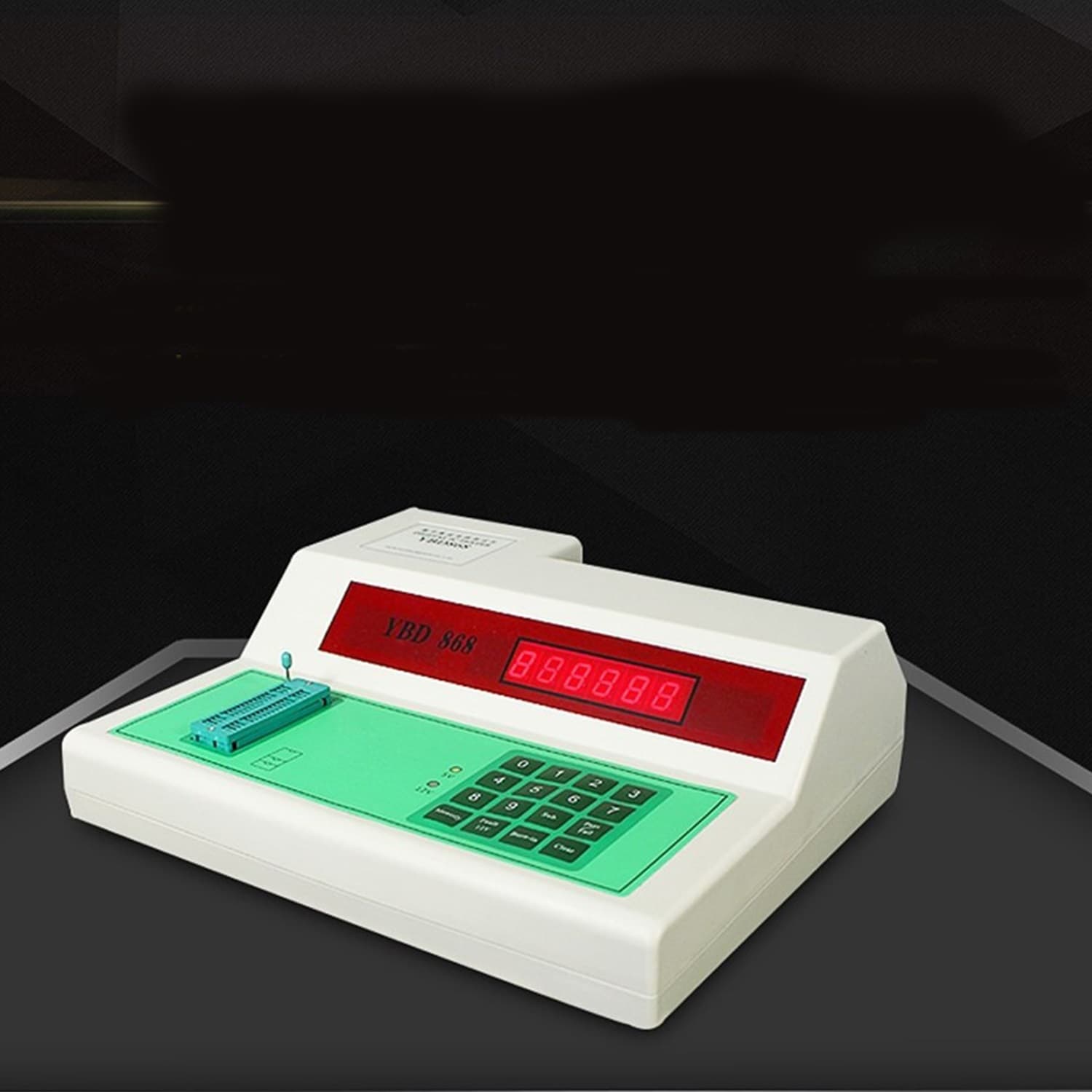

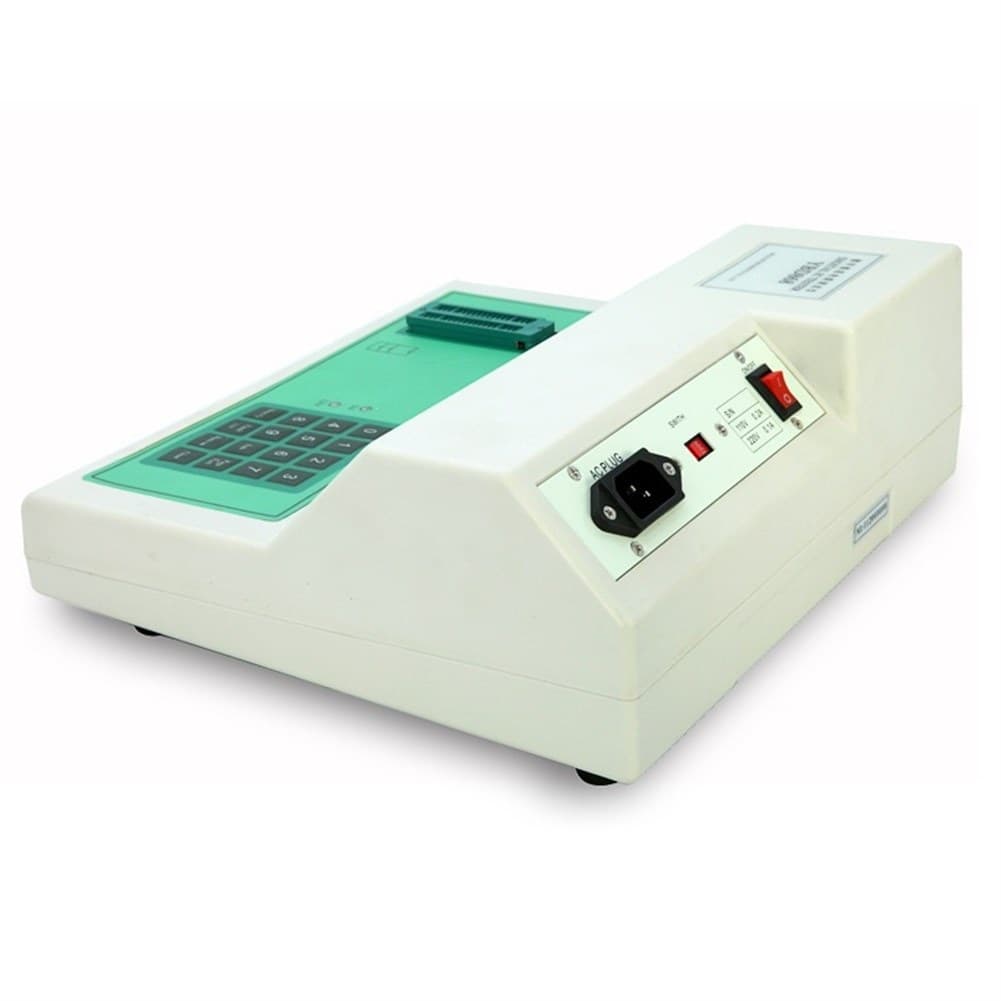

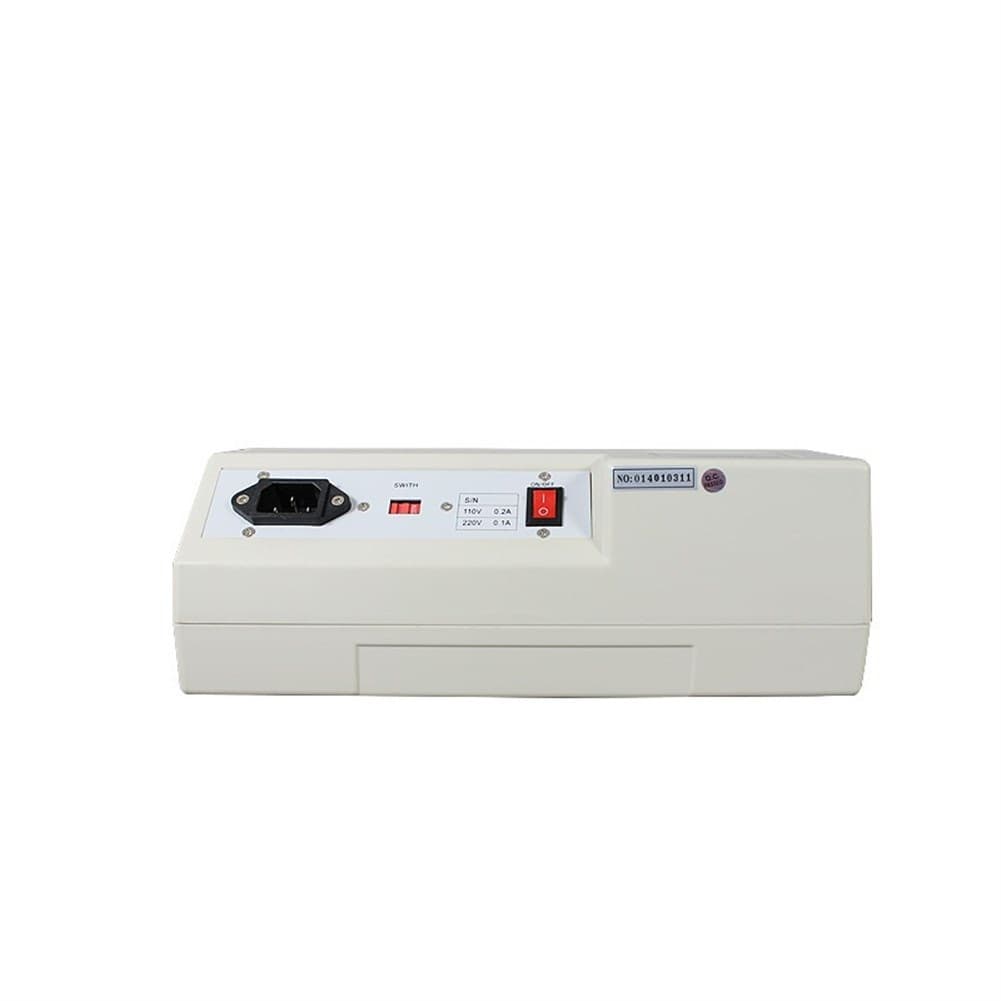

IC Tester Digital Integrated Circuit Tester YBD-868 Electronic Industry

Model: YBD-868 Type: IC Tester Power supply voltage: 220 (V) Size: 285*95*290(mm) Weight: 3.5 (kg) Uses: IC detection Technical Parameters 1. Operating system: 16-bit touch-sensitive stereo keyboard two-tone prompt system, the device under test is installed with a locking socket. 2. Display system: The six-digit digital tube display shows the model of the device under test or various function prompts, and four LEDs show the working status of the instrument. 3. Power supply voltage: 220V ± 10%, 50HZ 4. Machine power consumption: 12VA 5. Applicable temperature: 0°C--+40°C 6. Working hours: 5 hours of work and 1 hour power outage. If it works continuously, the power supply voltage is ∠230V and the ambient temperature is °25°C. 7. Instrument structure: desktop plastic chassis 8. Dimensions: 285*95*290cm 9. Machine weight: 2.0KG Feature description After turning on the power, the instrument has the following reactions: * There is a high order reminder * Four LEDs are fully illuminated * After one second, the display is off, three LEDs are off, only the 5V power indicator is on. * The instrument enters the self-test state * Self-test is normal, there are two high-pitched prompts, the display shows: PLEASE * Self-test failed, there are two bass prompts, the display shows: 1 - value or 2 - value Note: When the power is turned on, the integrated block cannot be placed on the locking socket. Use / application area The YBD868 digital integrated circuit tester is based on an advanced microprocessor. The main components are integrated circuits produced by well-known device companies. The software and peripheral expansion system are used to fully simulate the integrated functions of the device under test. It is suitable for all fixed outputs. Digital integrated circuit. Widely used for maintenance, testing all kinds of computers, industrial automation equipment, large medical equipment, CNC machine tools, microcomputer peripherals, program-controlled switches, electronic instrumentation, digital communication equipment, electronic relay protection devices and various electronic products.
