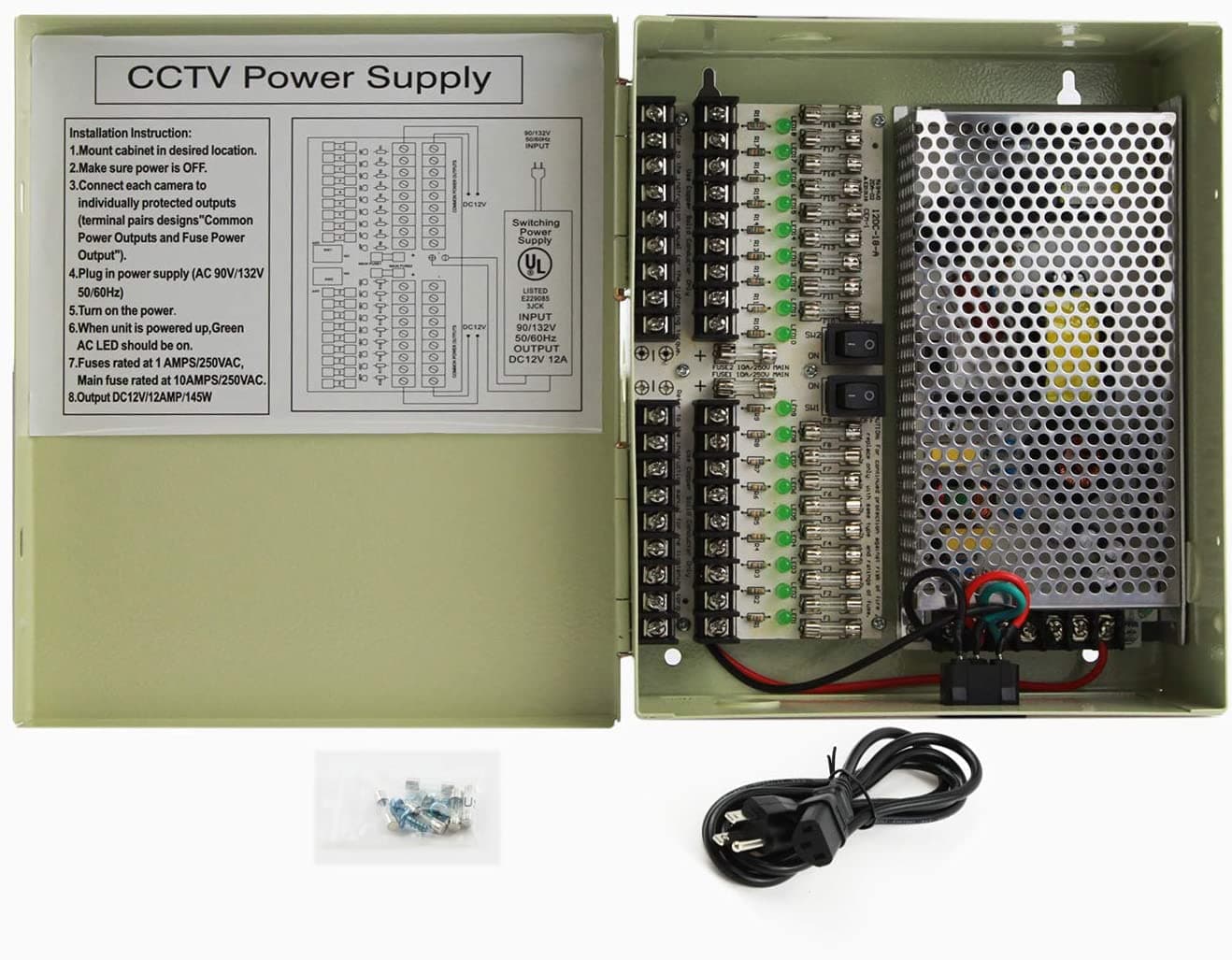

InstallerCCTV 18 Outputs 12 Amp 12V DC CCTV Distributed Power Supply Box for Security Camera, UL Listed

COMMERCIAL GRADE CCTV power distribution box, supply 18 channels output. Box Dimension: 9.5(W) x 8(L) x 3.25(H) Input: AC 90V – 132V, 50/60 Hz. Maximum total Output: DC 12V, 12Amp, 145W. 18 channels (+/-) Screw terminal connector support up to 18 CCTV cameras or devices. Distributes 12VDC 0.67Amp evenly when all channels are used. Maximum output for each channel could go up to 1Amp – Note: Using 12 channels only. Adjustable current from 12VDC to 13VDC, located at the right bottom corner of the power supply. This 18 channel power box comes with a US Standard 3-Prong AC power cord, makes installation simple and easy. One-year warranty. UL listed power supply, meeting safety requirement. This power box has multiple uses, e.g. CCTV equipment, Microphone, some Digital Video Recorder, or LED strip lights, etc. Instructions for the installer: Make sure the power switch(I/O) is set to “OFF”. Install box at the desired location. Connect each camera to one”+/_” power output Pair, protected individually by a fuse. Connect AC power(115VAC50/60Hz) to the power box with the power cord provided. The green LEDs should light up when the power switch (I/O0 is set to “ON” The fuse is rated at 250VAC/1A To reduce the risk of fire, use only types SPT-2 cord or heavier duty cord, No. 18AWG copper at the minimum. Use wires suitable for at least 90 degrees. Package Includes : 1x Power Box 1x 3 Prong Power Cord 1x User Manual 5x Spare Fuses 4 Mount Screws
