INTSUPERMAI Automatic Spring Feeder Auger Conveyor Hopper 220V Two-Phase

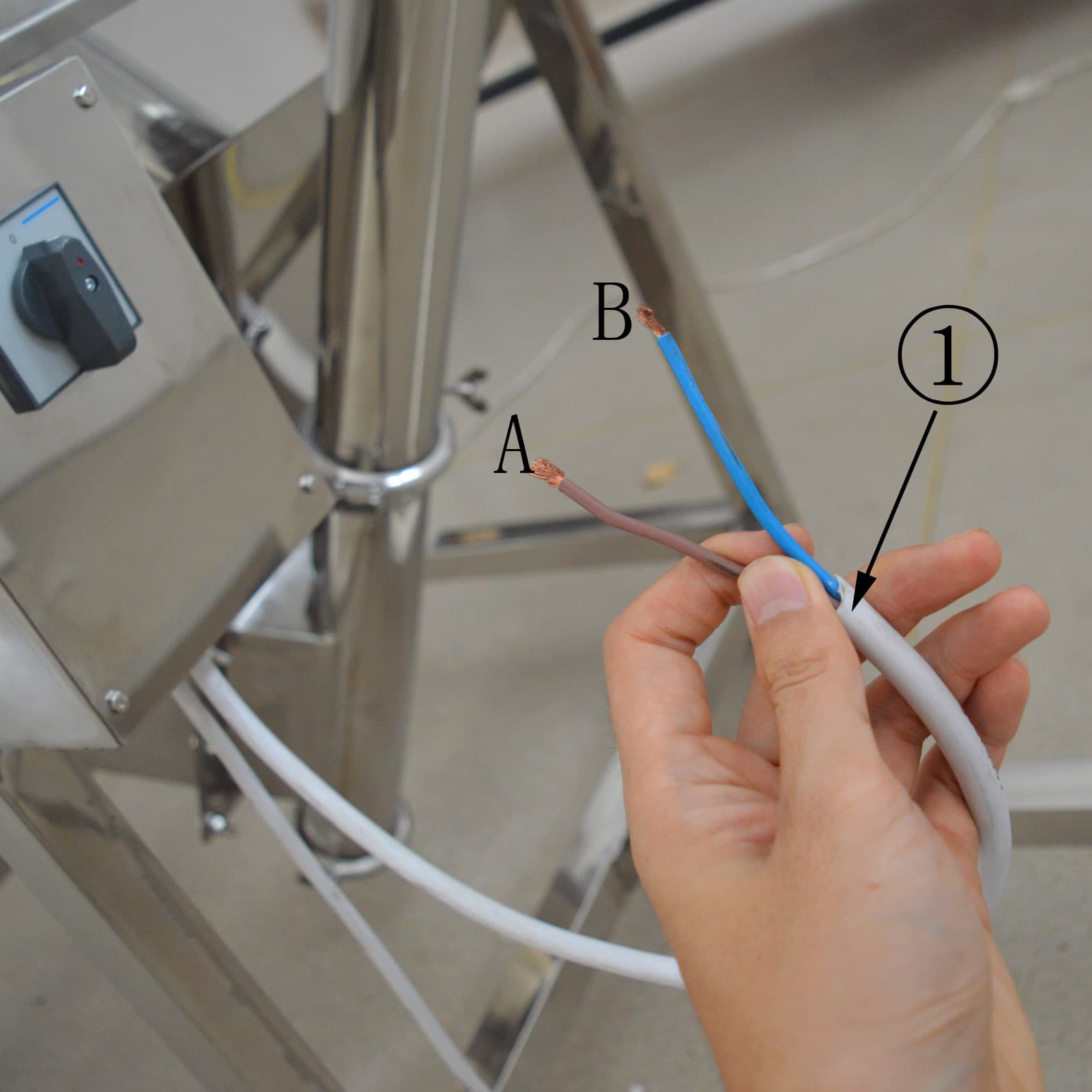

Wiring Details:The overall picture of the machine's three wires has shown before.The wire ② and wire ③ respectively with a utility knife or pliers to peel off the outside of a layer of rubber,Both wire ② and wire ③ have four different colored wires exposed.Connect two wires of the same color (For example, blue wires are connected with blue wires, and yellow wires are connected with yellow wires)，Then wrap the joint properly with insulation tape to prevent leakage. Connect wire A and B on wire ① to the fire wire respectively. In simple terms, it is to connect the ② wire with the ③ wire according to the corresponding color, and then connect the two wires of the ① wire to the fire wire. If you have other details, please contact us！ Application:Suit for food industries, ipharma industries ect, such as dry pellet pet food,dry powder. Screw drive feeding machine form a complete set of auxiliary machinery required for plastic processing machinery, is indispensable in the process of blow molding machines feeding auxiliary equipment. Powder or granular plastic raw materials can be automatic transfer directly to the inside the hopper, adjust the mixing machine is special equipment contact materials are stainless steel, in conveying process of raw material is not polluted, not into any foreign body, can make the production process to realize the automatic closed.
