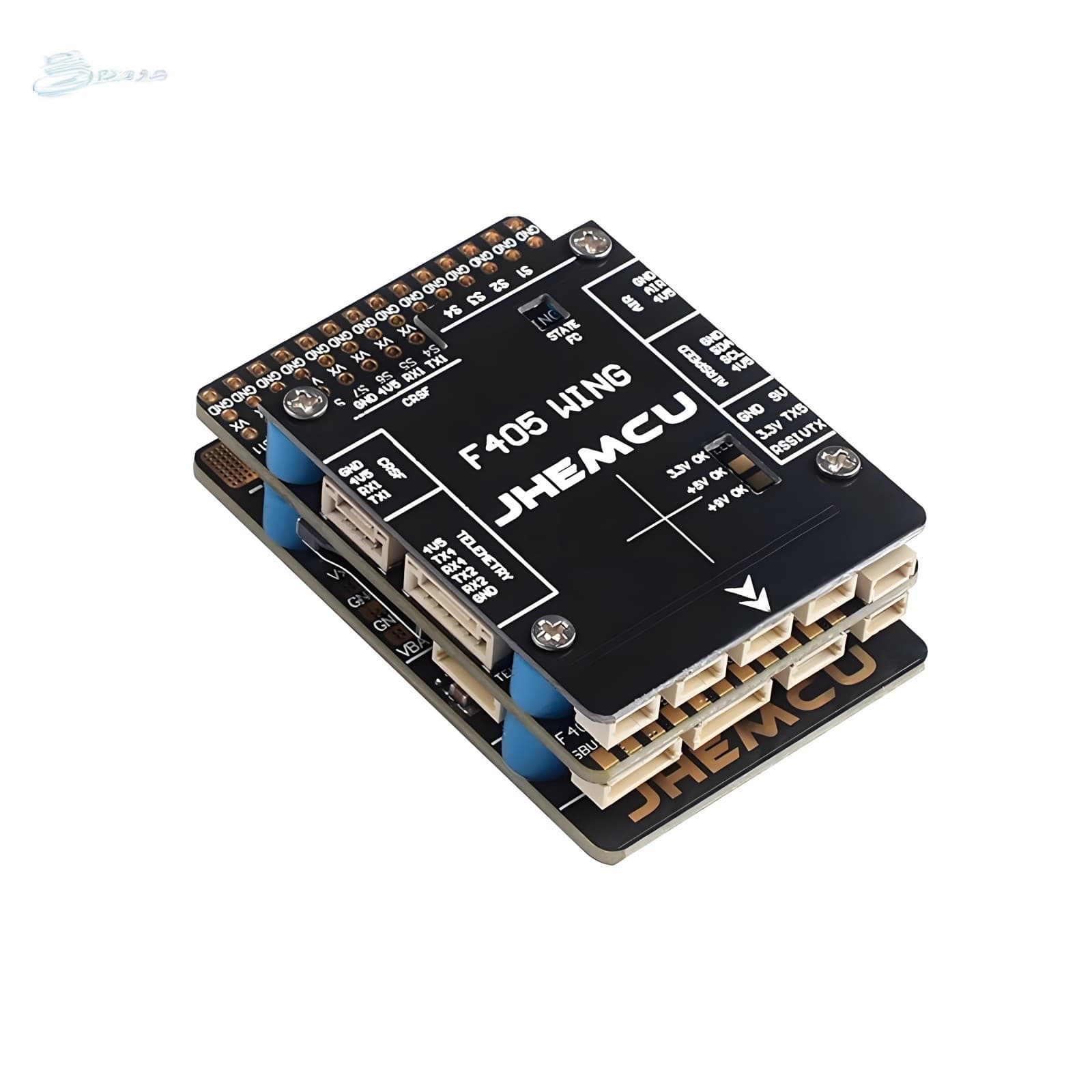

JHEMCU F405 Wing Flight Controller for RC FPV Drones – Built-in Barometer, OSD, Current Sensor & High-Output BEC, Compatible with INAV Long-Range FPV Wings

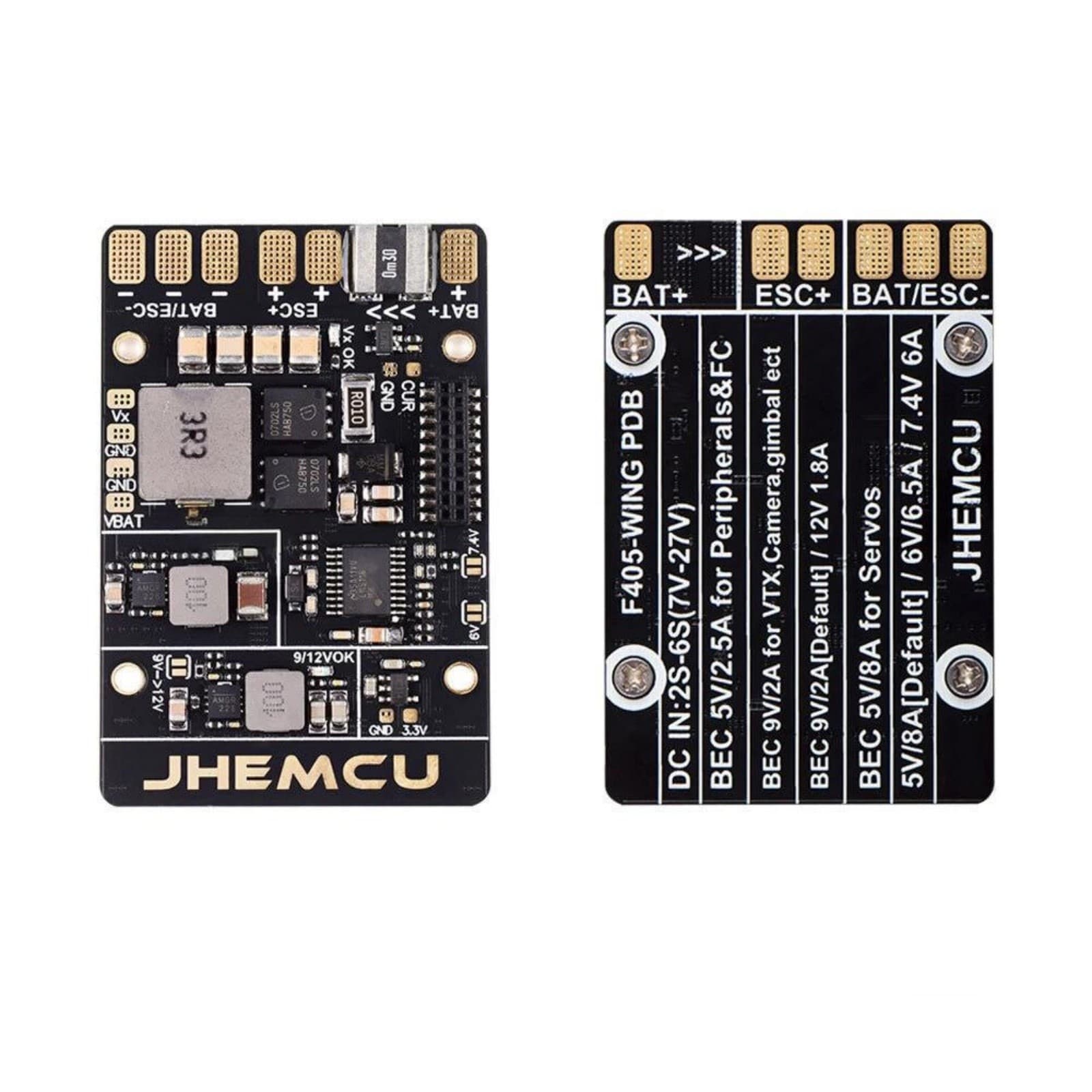

Powerful STM32F405 Processor – Paired with ICM-42688-P gyro for smooth and accurate flight performance. Comprehensive Interface Support – 6 UARTs, I2C, OSD, barometer, TF card blackbox, and LED outputs. Flexible BEC Options – Built-in 5V/8A servo BEC switchable to 6V/6.5A or 7.4V/6A; FC BEC up to 12V/1.8A. Receiver Compatibility – Supports SBUS, IBUS, DSM2/X, CRSF, and ELRS for wide radio system integration. Mapping & Video Systems Ready – Works with DJI O3, analog FPV, and HD digital transmission. Integrated Safety Features – Current sensor, 110dB buzzer with mute, and voltage monitoring. WS2812 LED Output – Programmable lighting effects for orientation and visual feedback.
