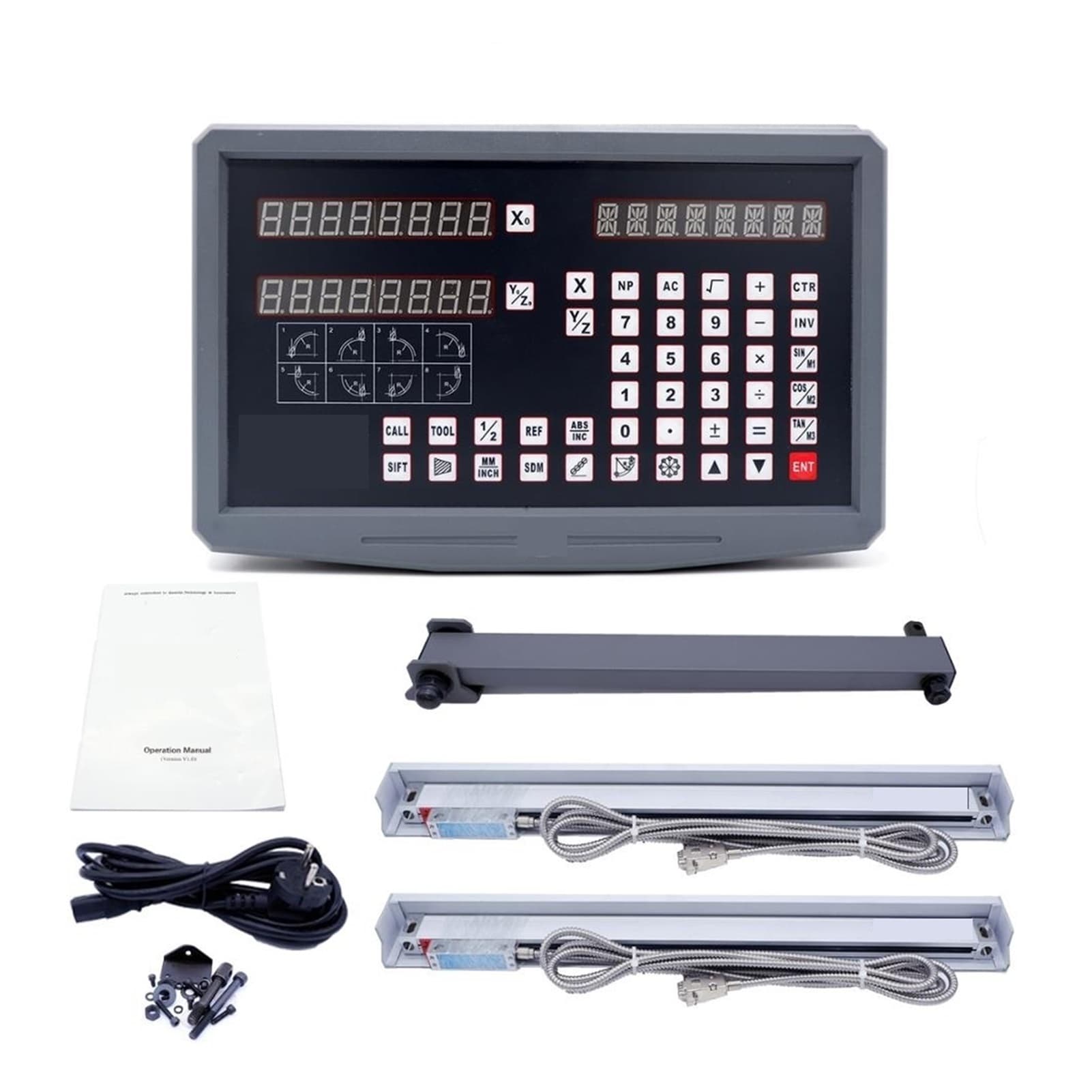

Lathe / Milling / Drill / EDM / CNC Machine 2 Axis Digital Readout And Linear Scale / Linear Sensor

Lathe / milling / drill machine 2 axis digital readout and linear scale / linear sensor digital readout parameter 2.Acceptable Signal: TTL square wave/ EIA-442 3. : DB9 4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um Advantage 1. Full of feature & can widely used for mill lathe drilling boring wire cutting EDM machine Function 1:zero clearing 2:reset 3:mm/inch mode 4:ABS/INC coordinate conversion 5: 200sets sub datum 6:power off Memory; 7:center of1/2 8:liner error compensation 9:sleepping mode 10:Clear 200 sets Sdm datum; 11:ABS/INC mode 12:calculator 13:drilling of circumference 14:drilling of oblique line 15:machining of inclined plane 16:machining of circular arc 17:lathe function(match) 18:Rectangular lumen gradual processing 19:digital filtering 20:vibration filtering 21: Lathe function 21: Daimater/Radius function Linear scale parameter 1. Travel (measuring) length: 0-1000mm / 0-40inch 2. Total (overall) length: Travel length + 142mm (0-1142mm) 3. : DB9 4. Resolution: 0.005mm / 0.0002" (0.001mm is option from extra) 5. Input voltage: 5V 6. Grating pitch: 0.02mm (50LP/min) 7. Cable length: 2.5 or 3 Meter (about 9 feet)
